Arcadia Sliding Door Lock Replacememt

Home Owner from Honolulu, HI

May 19, 2023 3:35 pm

Hi:

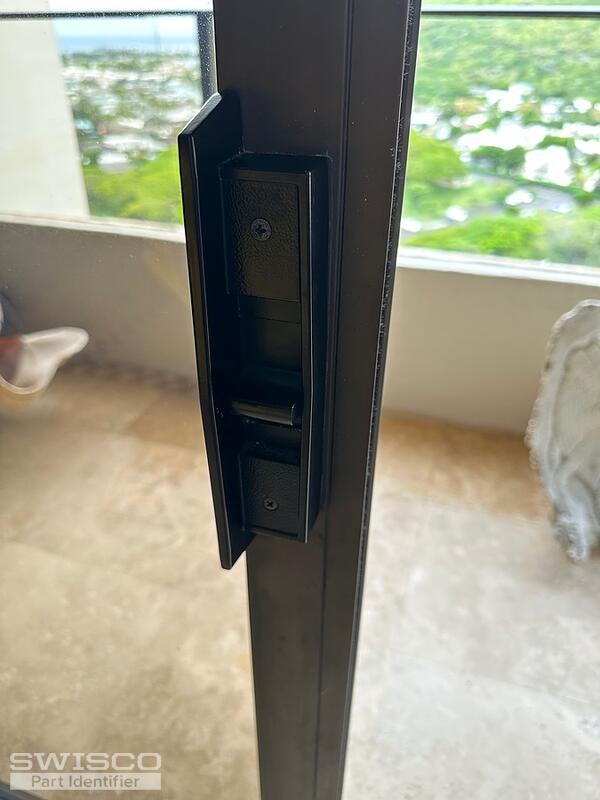

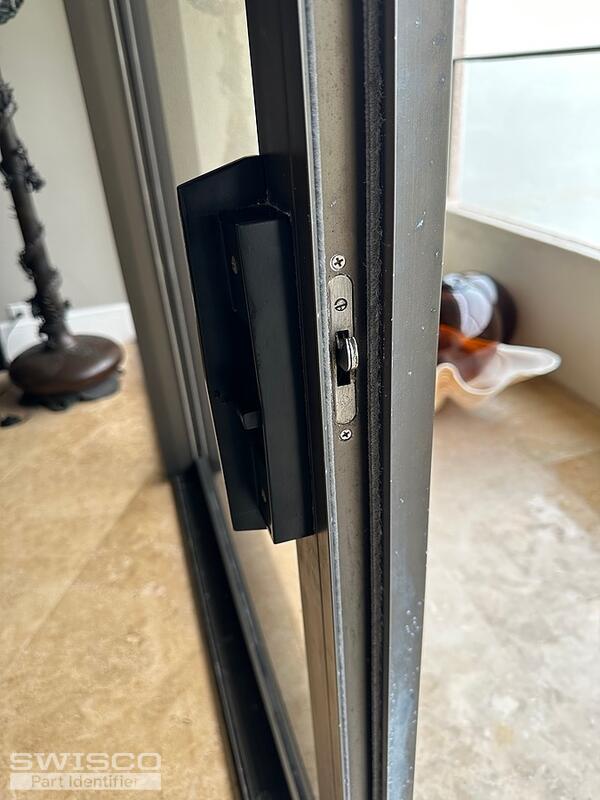

I'm looking for replacement locks for my old arcadia sliding doors. Can you please help me find the replacement mortise lock or new handles with new locks.

Thank you in advance for your help.

Antonio

2 user uploaded images

4 Replies

Emily from SWISCO

May 22, 2023 12:25 pm

Hi there!

Thank you for reaching out to us. I'm afraid this mortise lock isn't something we sell an exact match for. Would it be possible for us to see some photos of it removed from the door? Once I see that, we can work from there.

Home Owner from Honolulu, HI

May 26, 2023 4:36 pm

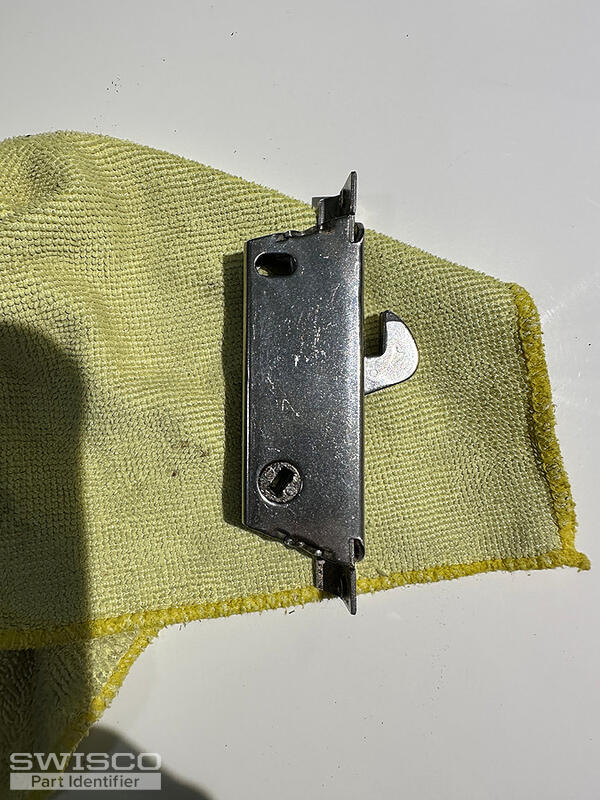

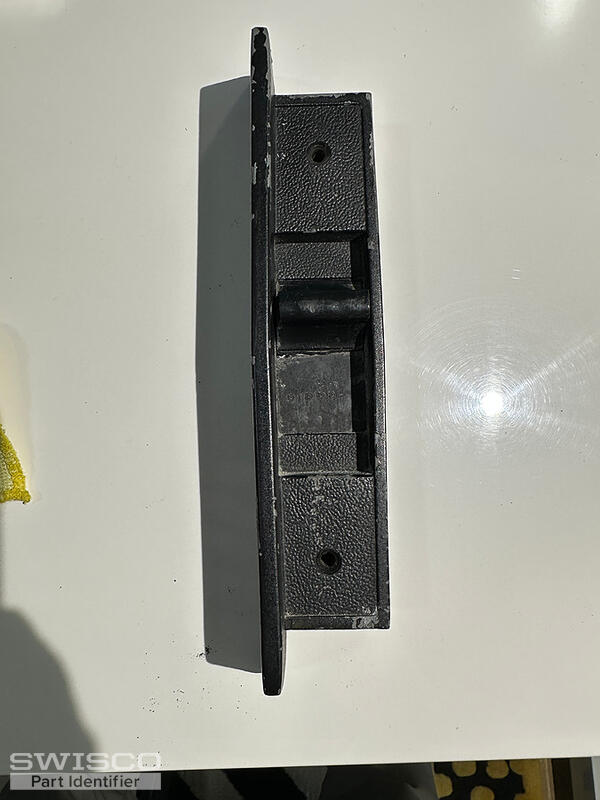

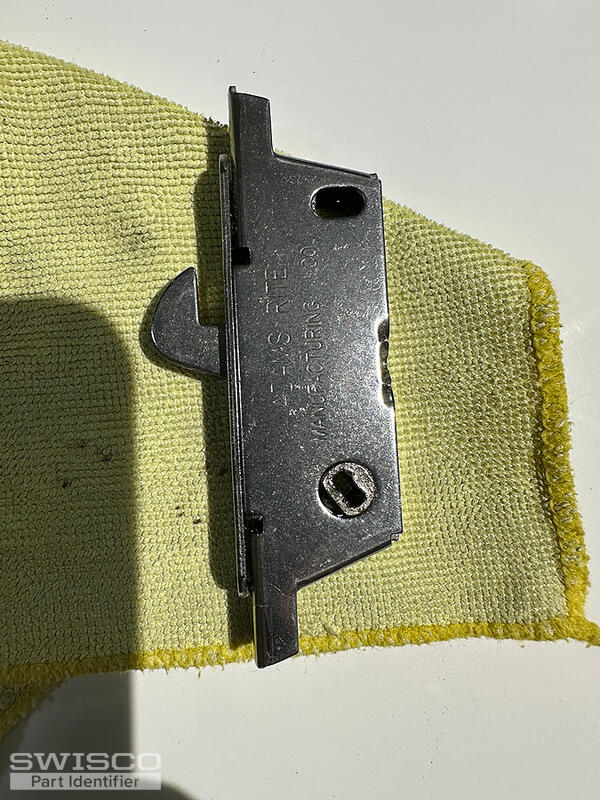

Here are three more picture of the handle and lock. Can you suggest a replacement handle set please.

3 user uploaded images

Emily from SWISCO

May 30, 2023 9:26 am

Thank you for getting back to me! Our 82-218 mortise lock comes to mind which is similar but I'm not sure if this will work for you. With that in mind, I recommend you take a look at the 82-005 handle set. This measures 4-15/16" on the installation hole centers and you may need to redrill new ones but it is the best we can offer. Take a look at the specifications along with the related videos and see what you think.
