Arcadia slider door parts

Professional from USA

Dec 4, 2017 7:56 am

I have a customer that has a arcadia patio lock that is all there but know longer works can we get them parts see photos.

9 Replies

Dave Sr. from SWISCO

Dec 7, 2017 2:20 pm

It sounds like you're referring to the internal mortise lock. I'm afraid your specific type is no longer made. I believe your next best solution would be to install a surface mounted handle set like our 82-003.

Professional from CA

Dec 7, 2017 4:36 pm

If the plastic pivot where the lever goes broke, there's no fix and no replacement unless you go back in time.

Professional from CA

Dec 7, 2017 5:14 pm

Sometimes small town hardware shops are like a trip into the past.

Dave Sr. from SWISCO

Dec 8, 2017 9:19 am

That, they are!

Quick Learner from Chapel Hill, NC

Feb 11, 2024 4:25 pm

Hi, I have the same issue with my Arcadia doors. You recommend the 82-003 handle set. Will that work with the current latch target (in, the pointy thing on the jamb side). Or does that need to be replaced also, and if so, can you recommend the specific part? Thanks, and I look forward to hearing from you.

Tom from SWISCO

Feb 12, 2024 9:32 am

The part you're referring to is the keeper. Or at least, they are normally; truth be told, I don't know what the exact style is called on your door. It looks like it's just a screw sticking out of the frame.

All's well, though, because the 82-005 comes with its own keeper that is specifically designed to work with it. The only catch is that you will need to find a way to retrofit it on your door, which could be easy or difficult depending on the frame. In my experience, the older a door is the more creative I have to get with finding out the best way to mount the keeper.

To assist in this, it comes with a bracket that allows it to mount at a 90 degree angle, if necessary. Just don't expect it to be immediately obvious where the keeper needs to install. The trick is to hold the handle up to a closed door about where it would install and note where the hook latch comes to rest. You would then install the hardware appropriately.

Quick Learner from Chapel Hill, NC

Feb 12, 2024 3:36 pm

Hi Tom,

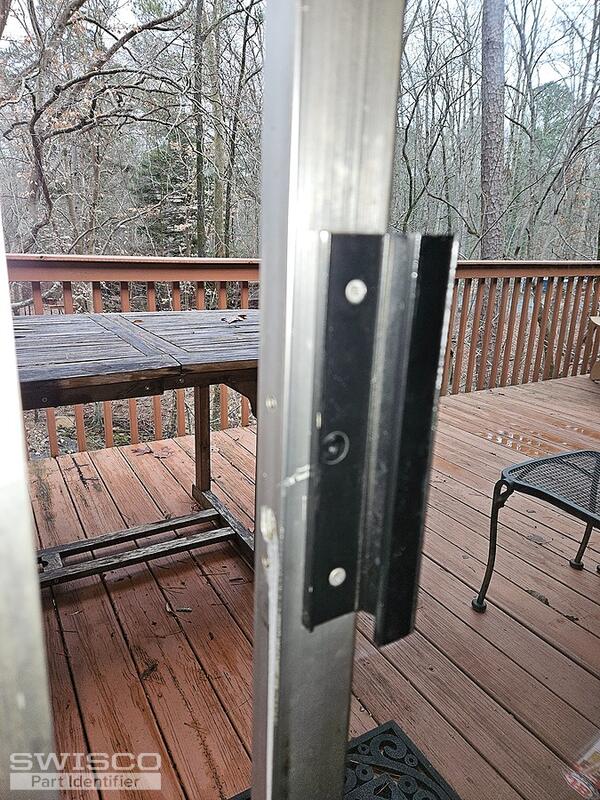

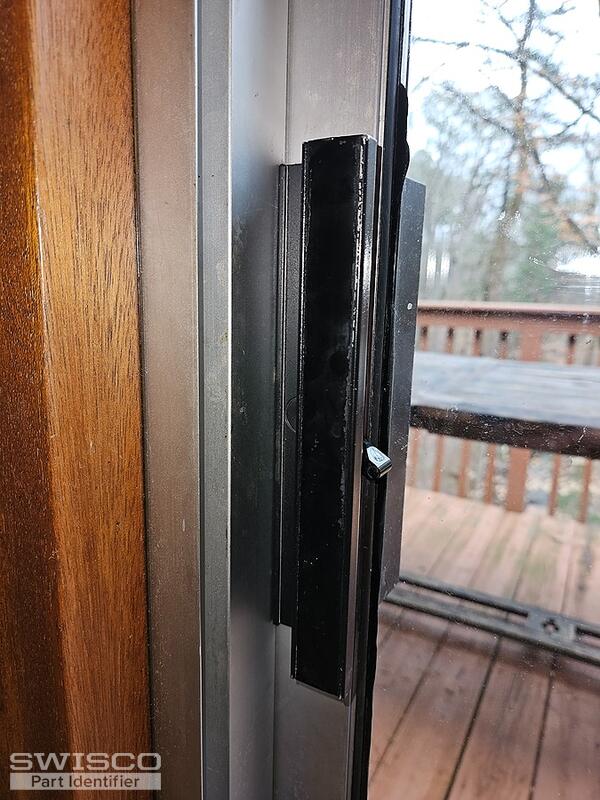

Thank you for the quick reply and the explanation of a "keeper". A question I now have is mounting the keeper on my door. I have attached some pics of the door. I watched the video on your site but its not clear how to mount the new keeper as there is no "side" area where I can mount the keeper. I added some pics so you can see the door. Greatly appreciate any thought you make have.

2 user uploaded images

Tom from SWISCO

Feb 13, 2024 8:39 am

Looking at your first photo, I see a pretty significant portion of the door frame that would give you enough room to install a keeper. It's right where the handle butts up while the door is closed. Is there any reason why you can't use that area?
