Assembly for vinyl capital window.

Start a new Discussion

Quick Learner from Statesboro Ga

Mar 24, 2024 7:19 pm

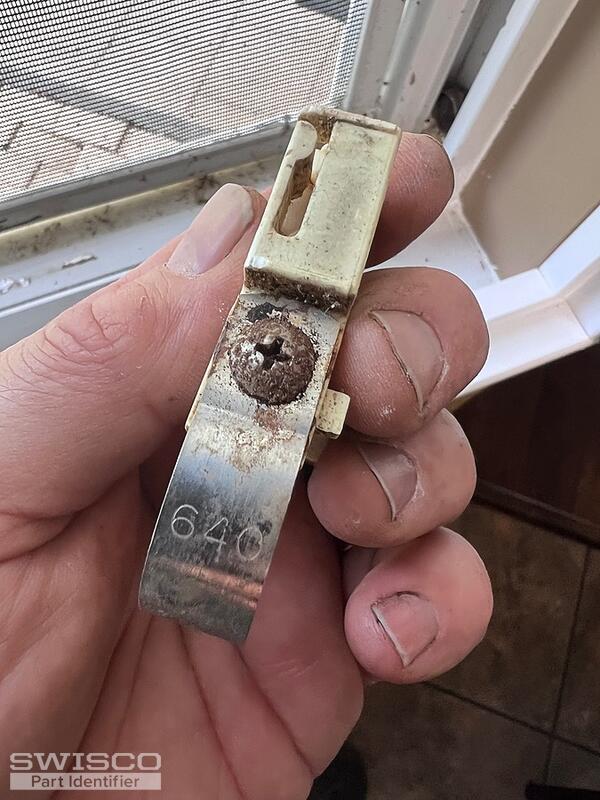

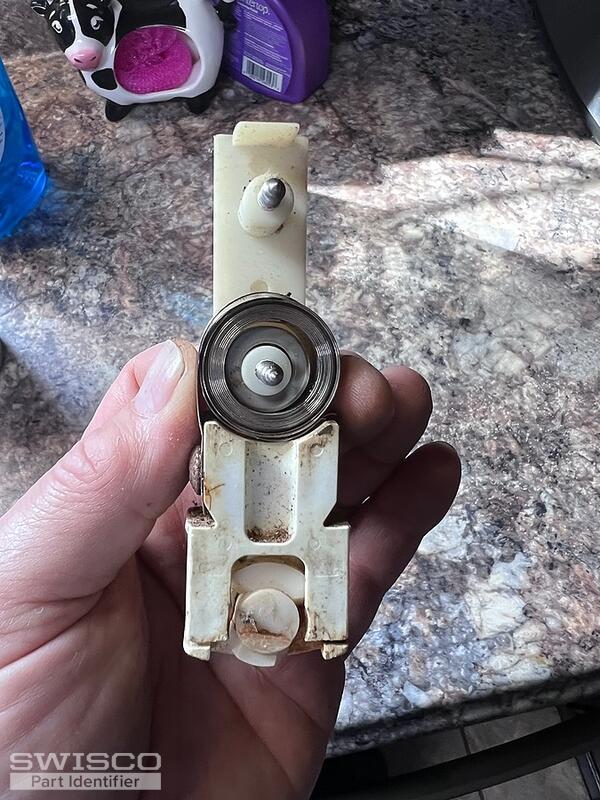

640 is on end of one coil spring. I will need both sides.

5 user uploaded images

4 Replies

Bob from SWISCO

Mar 24, 2024 10:44 pm

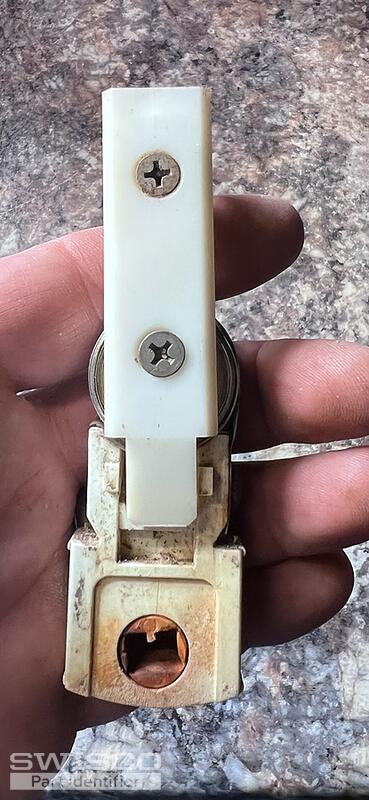

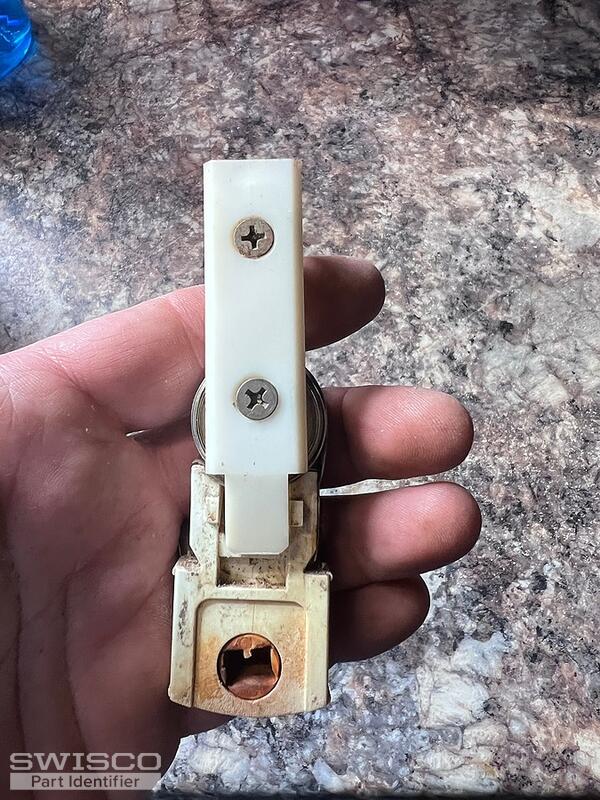

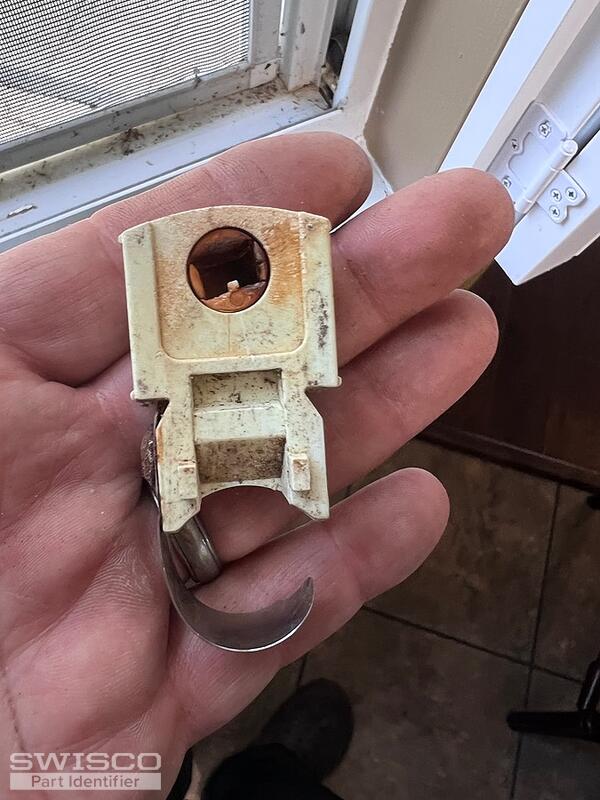

Hello there. This looks like an older version of the 15-180 Pivot Shoe. This shoe works with Series 190 Coil Balances. For any coil stamped 640, see the S190-640 6 pound coil spring. For a new support clip, see the 15-181. Let me know if you have further questions about any of this hardware.

Quick Learner from Statesboro Ga

Mar 24, 2024 11:43 pm

Thank you.

Bob from SWISCO

Mar 25, 2024 12:41 pm

You're welcome! Please don't hesitate to reach out if we can be of any further assistance.
