Atrium 22 3 HW CMC 7

Question

Hi again,

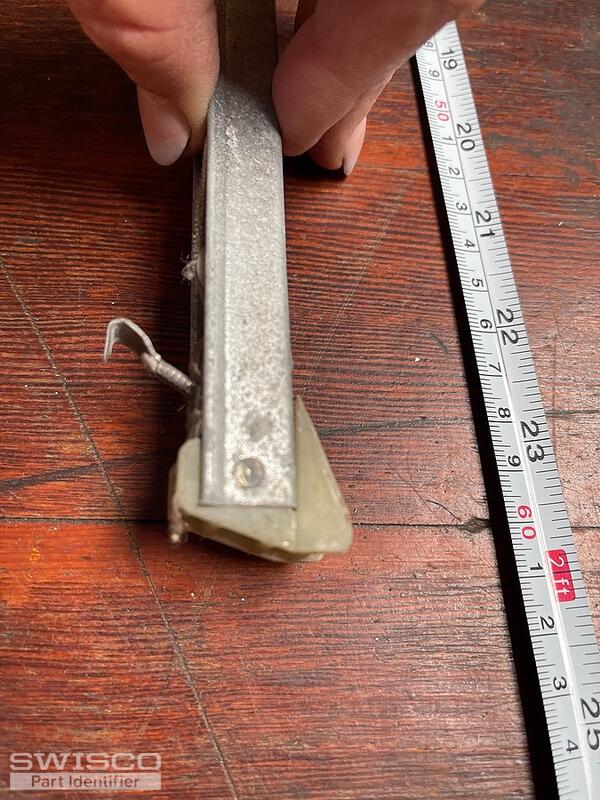

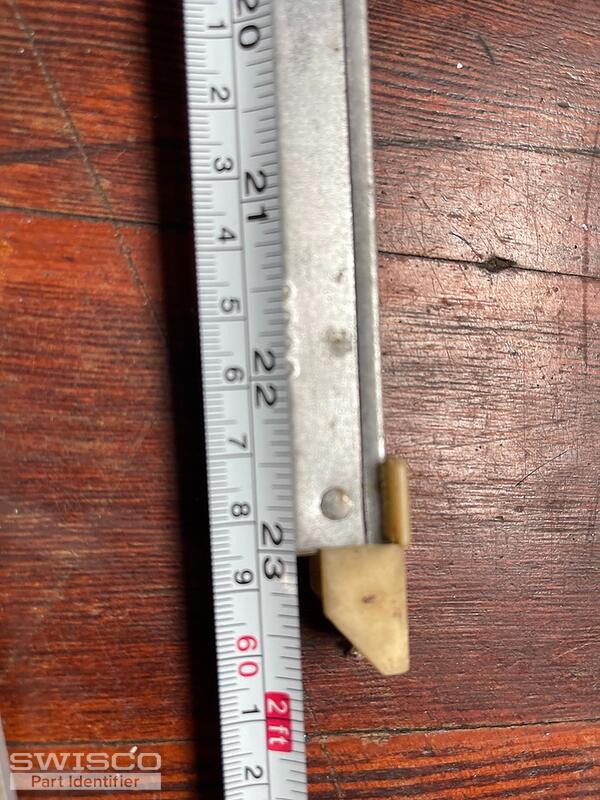

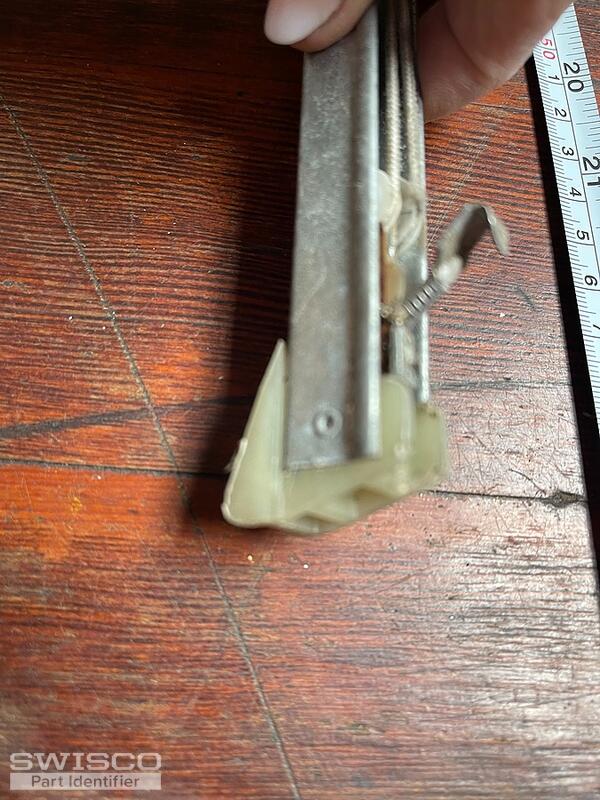

I have 2 identical channel balances which are 23" in length (Metal only). They are 1/2" in width. I have photos attached that shows the shoes.

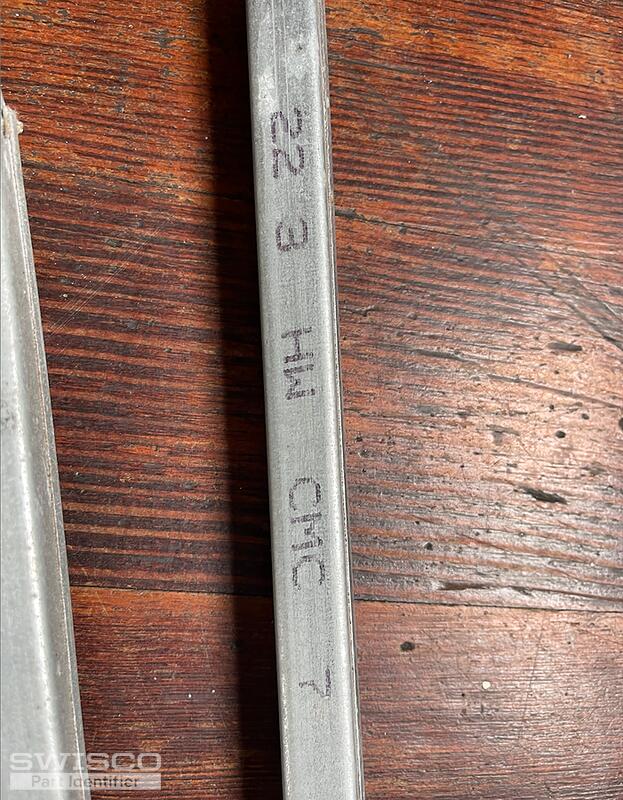

They are marked with "22 3 HW CMC 7"

The brand of window is: Atrium

Maybe you could identify them from my photos? I need about 10 additional ones that are missing.

Furthermore, I am missing the little metal stoppers inside the window channel which allows you to remove the window sash and the channel balance. Can those be replaced? Thanks.

Emily · Accepted Answer

Hey there!

With this combination of fittings, it looks like you have the S395-23 channel balance with a spring strength option of 2230. If you need a new take out clip, see our 16-002.
