Atrium Channel Balances

A quick learner from Tracy, CA says:
September 3, 2022

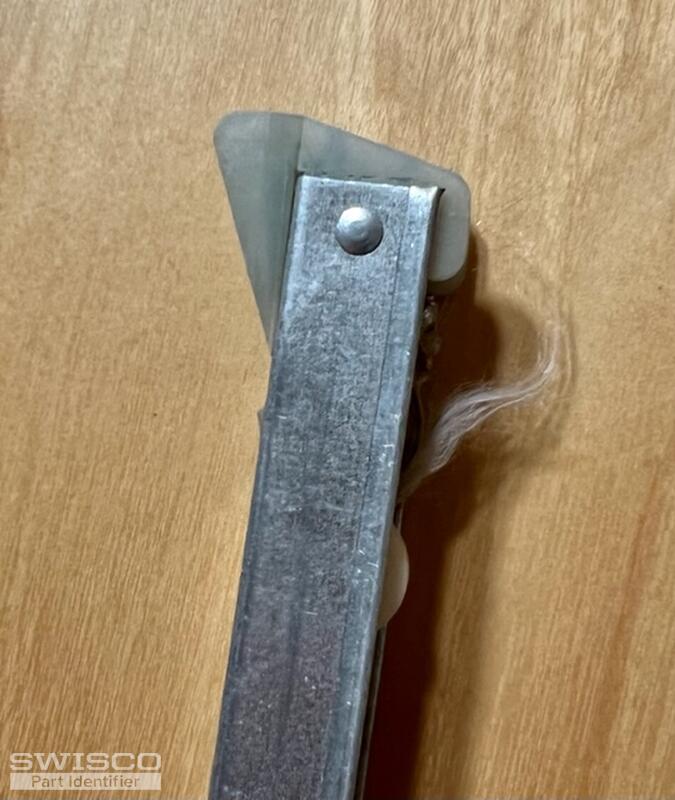

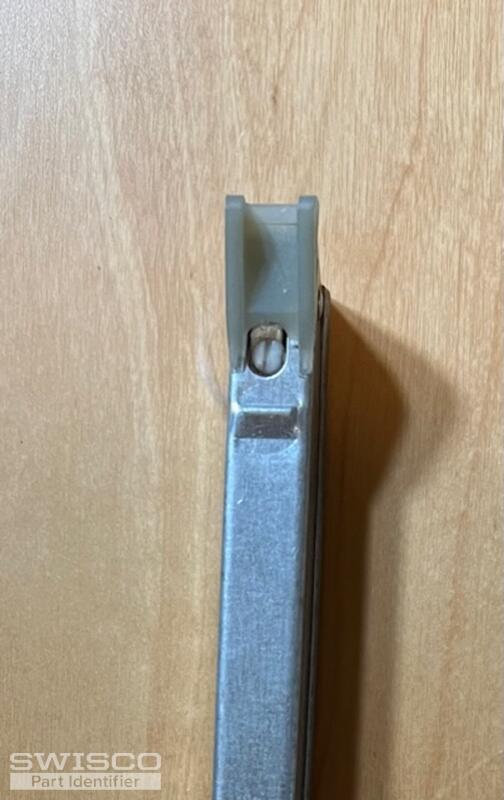

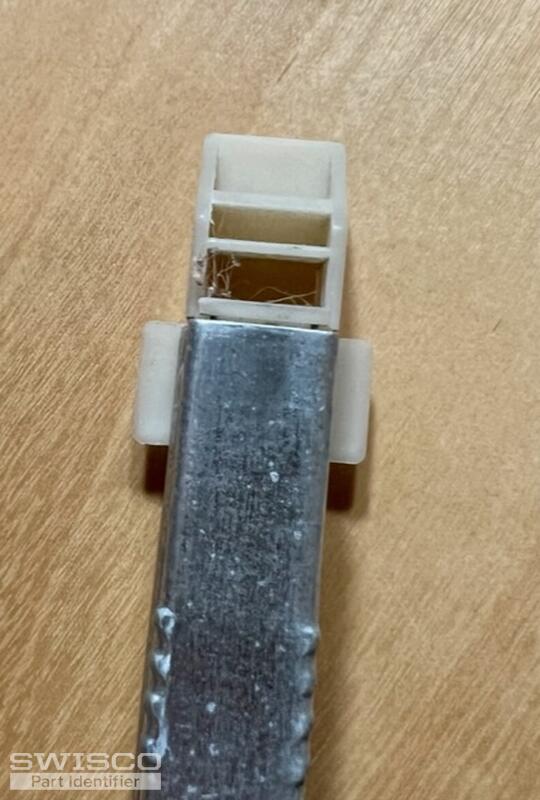

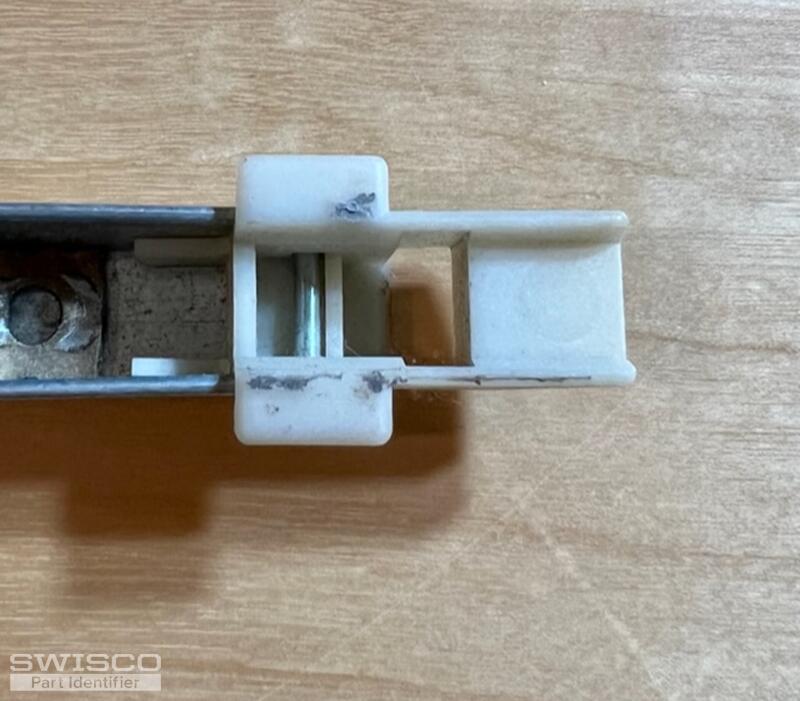

I would like to confirm the replacement parts for the Atrium channel balances that I have. All the windows in my home have the same end pieces as pictured so I think I need the S395s. Please confirm.

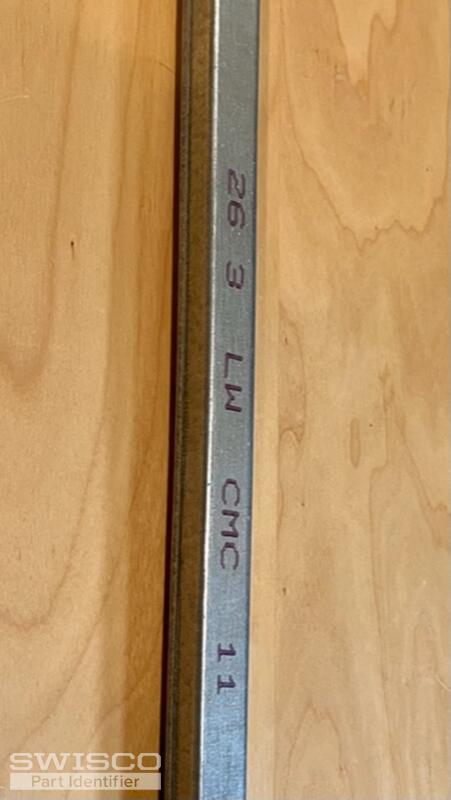

Since I am unable to provide pictures for all the springs I need, would the option I select correlate to the stamp on the channel? For example, for the 27" channels pictured, would "26 3" be option 2630? I also have 27" channels with "26 4" stamps and 33" channels with "32 3" stamps.
Thumbnail of the uploaded file named IMG_0591.jpg
Thumbnail of the uploaded file named IMG_0590.jpg
Thumbnail of the uploaded file named IMG_0589.jpg
Thumbnail of the uploaded file named IMG_0588.jpg
Thumbnail of the uploaded file named IMG_0587.jpg
Profile picture of Casey
Casey from SWISCO responded:
September 6, 2022

Hello,

I agree that your balance resembles the S395-27 and that the "26 3" stamp would correlate to a 2630 strength option.

"26 4": 2640 option for a 27" balance.

"32 3": 3230 option for a 33" balance.

Thanks for posting and please let us know if you have any other hardware questions!
27" Series 395 Channel Balance
27" Series 395 Channel Balance
S395-27
$10.23
33" Series 395 Channel Balance
33" Series 395 Channel Balance
S395-33
$11.52
