Atrium Window Balance

Home Owner from Gilbert, AZ

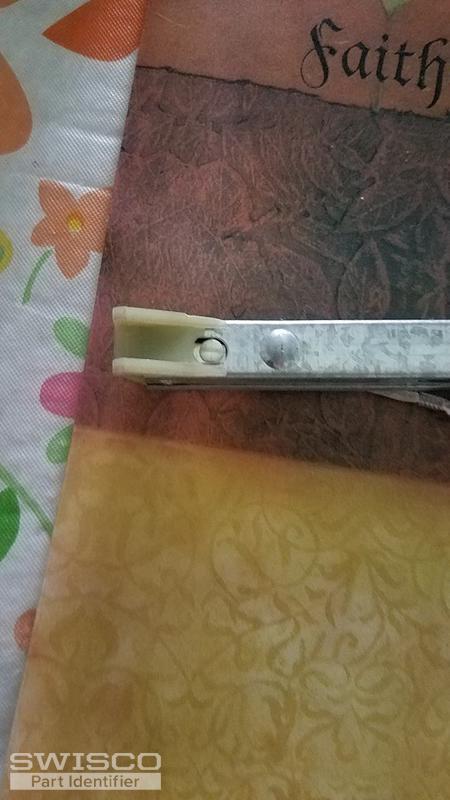

Can you please tell me what balance in need based on the pictures? The metal is 1/2" wide and 28" long from metal end to end. Is this the S395 option 2740? I can't find any stamped number on the metal channel anywhere.

Thanks!
4 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for reaching out to us. I agree that the Series 395 looks good in terms of your combination of nylon fittings; it comes with a 19-005 top and 15-001 bottom, so as long as those match up then this is the correct Series.

I'm confused when you say that you have no stamp, though. I see a stamp in your first photo, which is a collage. Is that not your balance? If not, then you'll need to weigh your sash on a scale and refer to the chart on the S395-28 store page to confirm the best option. That chart tells you exactly how much weight each option supports.

Home Owner from Gilbert, AZ
Tom,
Thank you for your quick response. I too was confused as the Atruim website referred to an actual stamped in the metal size. Is the
27-4 marked on there your S395 option 2740 replacement balance? If so, I will order it right away. Just don't want to order the wrong one.

Thank you
Tom
Tom from SWISCO
SWISCO
Expert

The 27-4 matches our 2740 stamp option, yes. Just keep in mind the stamp is not a product code; it only indicates the calibration of the spring. The only way to identify the Series is to go by the design and size of the top and bottom nylon fittings. As long as yours match our 19-005 top and 15-001 bottom, then the Series 395 is the best choice.
