Awning Hinges and Locks

A contractor from Kaneohe, Hawaii says:
May 12, 2018

I need hinges and locks for 6 awning windows. The part that attaches to the frame is 12" and the part that attaches to the window is about 24". These windows are 40" x 60" wood aluminum clad. These hinges allow the window to open past horizontal, although that is not completely necessary. I would like stainless steel. I am wondering if the 36-028HD will work.

I also need the locks for the 6 windows also pictured.

Thank you,

Kern

Thumbnail of the uploaded file named 20180509_100610.jpg
Thumbnail of the uploaded file named 20180509_100619.jpg
Thumbnail of the uploaded file named 20180509_112810.jpg

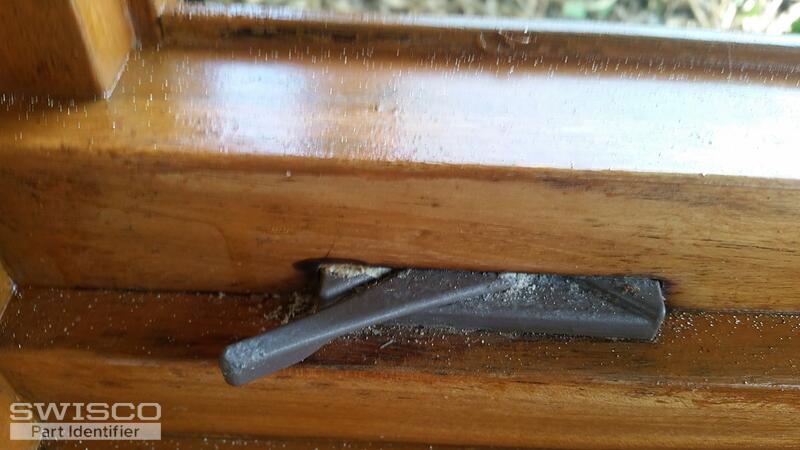

Thumbnail of the uploaded file named 20180511_092709.jpg

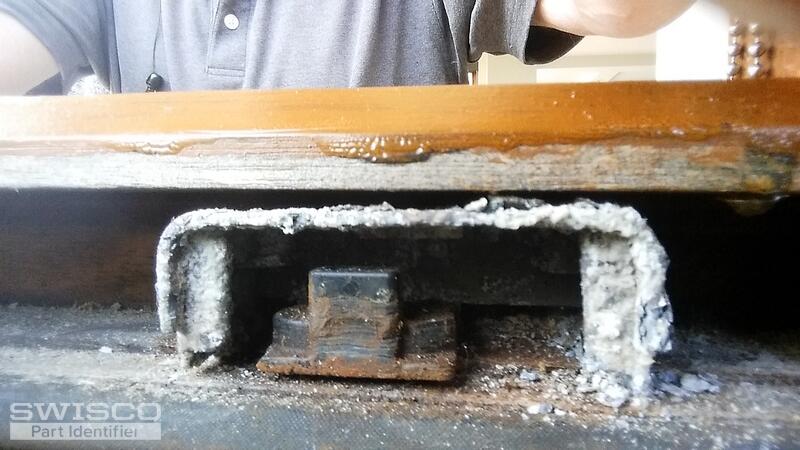

Thumbnail of the uploaded file named 20180511_093005.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
May 17, 2018

Hello Kern. It appears you may need to replace your hinge set. Take a look at our 36-028HD for consideration. As for the lock, take a close look at our 38-144 and see if this will make a good substitute for you. See the entire list of related items on this page for further review. Let us know if you believe you can make these parts work for you.
24" Four Bar Hinge, 45 Degree, Heavy Duty
24" Four Bar Hinge, 45 Degree, Heavy Duty
36-028HD
$35.05
Primary Casement Sash Lock, Non-Handed
Primary Casement Sash Lock, Non-Handed
38-144
$10.84
Casement Sash Keeper
Casement Sash Keeper
38-276
$2.37
Casement Sash Keeper
Casement Sash Keeper
38-277
$2.37
Anatomy of a casement window
Anatomy of a casement window
VIDEO
WATCH >
