Awning window

Quick Learner from Nutley nj

Jun 5, 2017 5:48 am

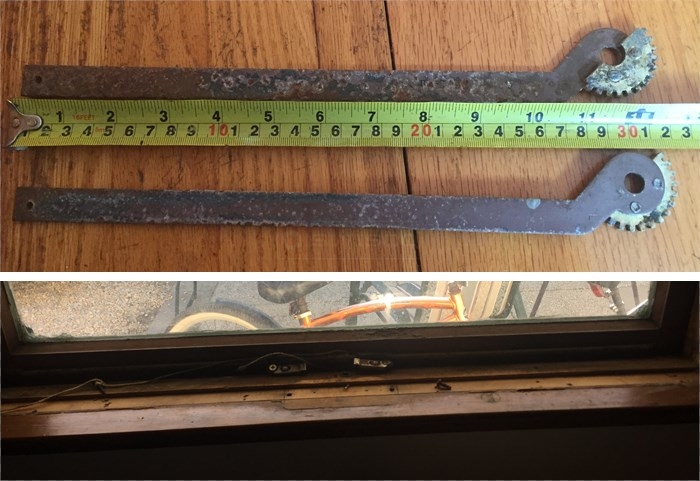

These are the only parts I have the window is 28 inches wide. It is an Andersen window I guess I would need all parts to operate window maybe we can retrofit

4 Replies

Tom from SWISCO

Jun 9, 2017 10:28 am

I'm having trouble finding this. It's a very peculiar design, especially with that squared end. Could you show me the base of the operator, as well? I can't see it in your photos. Can you also show me how the end of the arm attaches to the sash? Either the track, or bracket, or whatever it is your window uses. Thanks!

Quick Learner

Jun 9, 2017 1:44 pm

I don't have the operator basically starting from scratch. The 2nd picture shows the sash I think

Dave Sr. from SWISCO

Jun 13, 2017 9:13 am

Thanks for clarifying. That will make things a lot more difficult. I believe this is an Andersen window, but I'm not sure. We have a variety of Andersen awning window operators that may be worth considering like our 39-206 or 39-389, but they may not be ideal for your application. I'm wondering if something like our 39-083 or 39-015 would be better, along with the 39-114L handle and 39-170 sash clip. Take a look at the hardware suggested and see what you think.
