Awning window hardware photos

Home Owner from USA
Hello

Please see attached window hardware photos

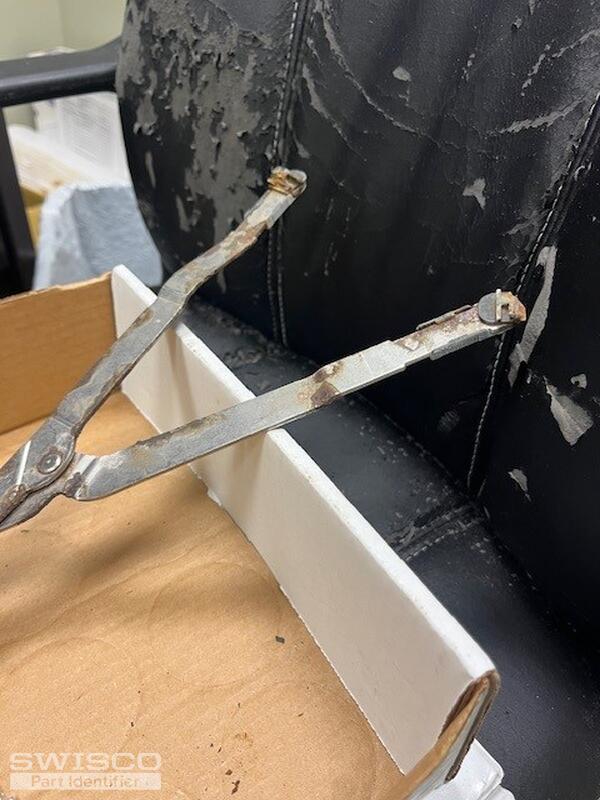

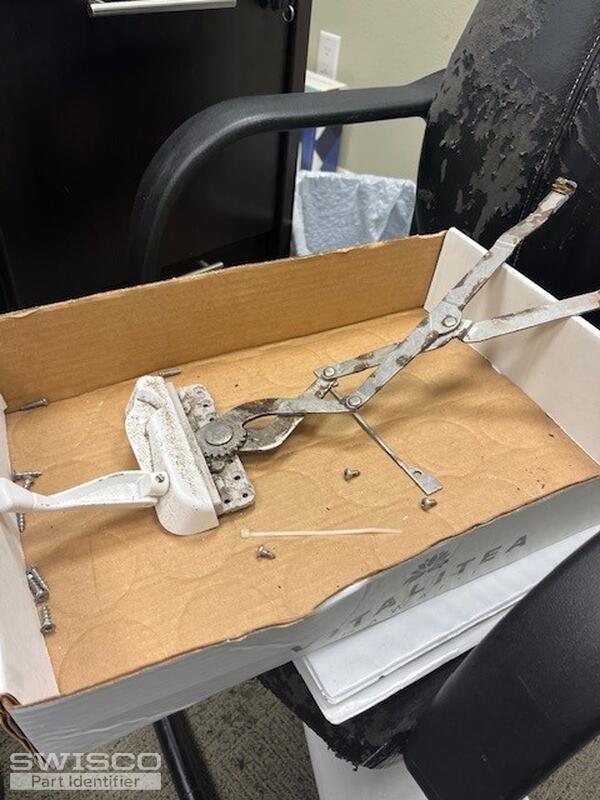

I have some photos with the damaged hardware on the window and after I removed it , im looking at replacing the following:

1.Complete window awning hardware , found matches part # 39-239C

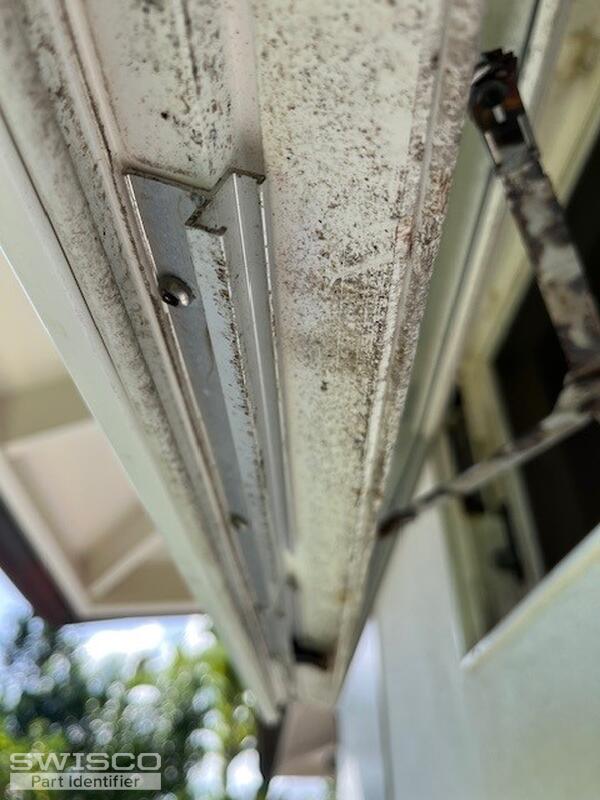

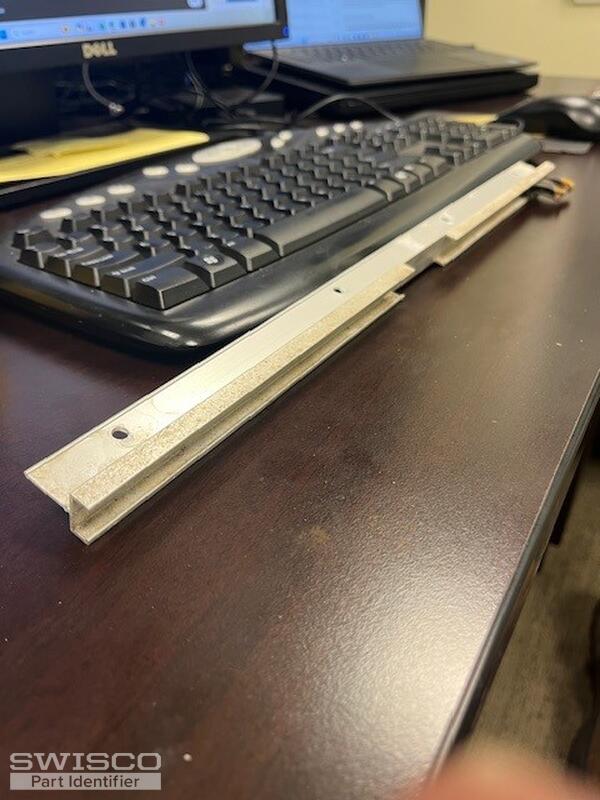

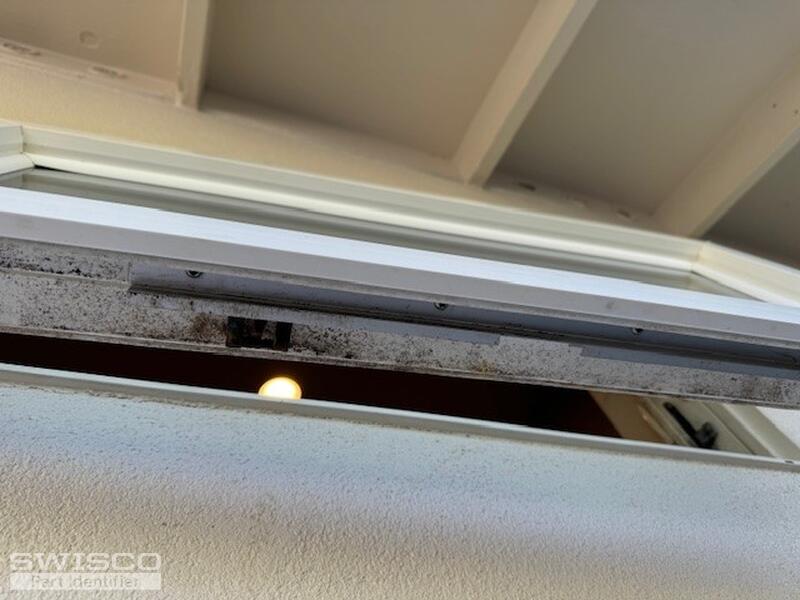

2. Track, found part # 39-556 not sure if it’s the same as my photo
3. 2- track sliders-found  part # 39-536
4. 2-hinges,
5. whit crank and cover , found part # 39-375Could you please confirm parts
Thanks, Allen
5 user uploaded images
9 Replies
Home Owner from USA
Additional images.
5 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

I agree that the operator hardware you choose matches your photos. Unforutnately, we do not carry exact replacements for your hinges but you may be able to use the 36-048 set if the 10" long base matches yours. Review the specifications shown on our product pages and related videos to see what you think.

Home Owner from USA
ok thanks,

how about the track and hardware for the operator?
Casey
Casey from SWISCO
SWISCO
Expert

The 39-239C operator is used with the 39-556 track and 39-375 handle with cover you picked out. You can find the parts used with this operator under the related items section of the product page as well.

Home Owner from USA
thanks ill check the hinges
Casey
Casey from SWISCO
SWISCO
Expert

Great, just let us know if you need anything else.

Home Owner from USA
hi

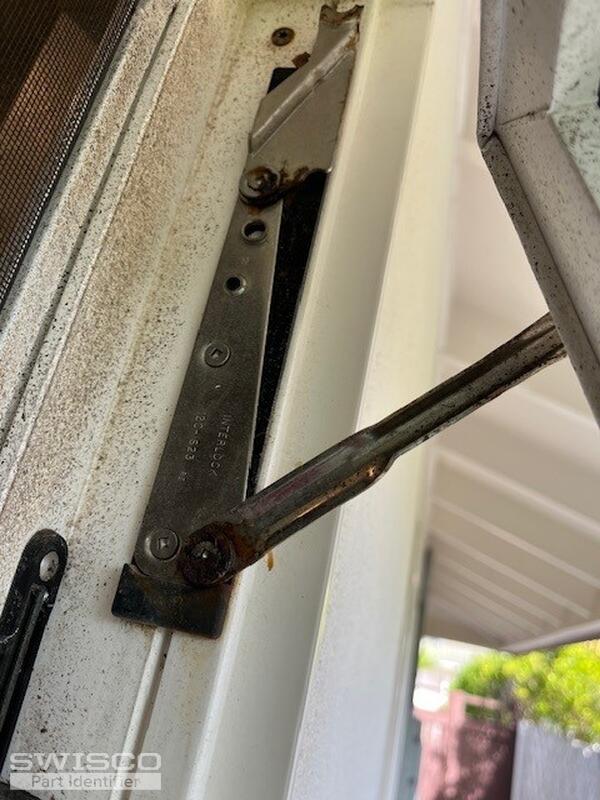

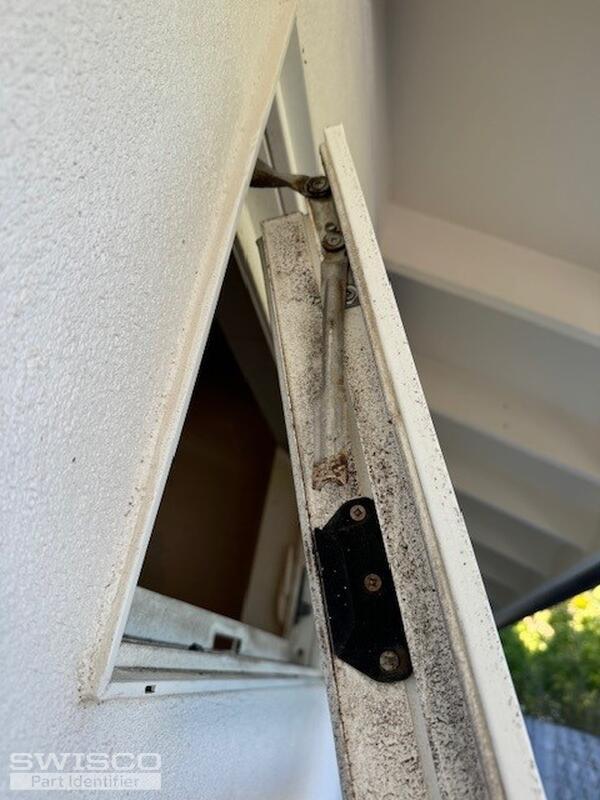

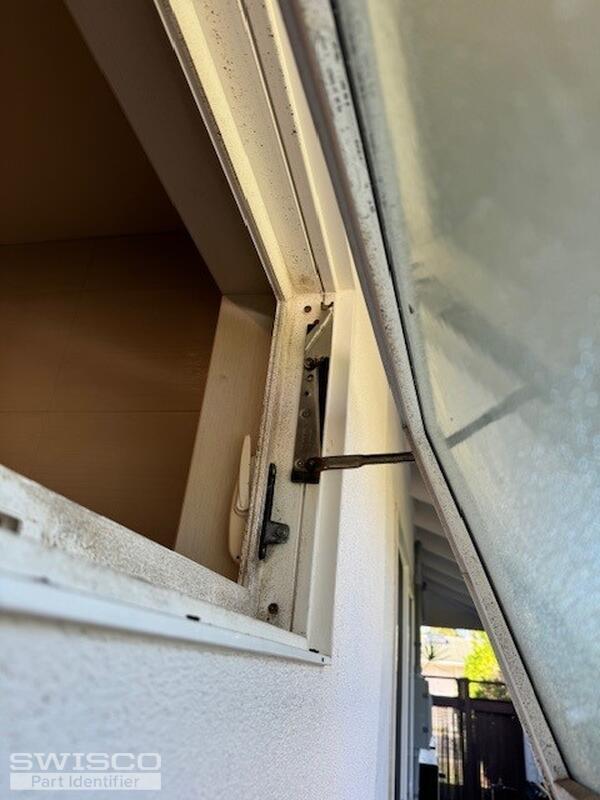

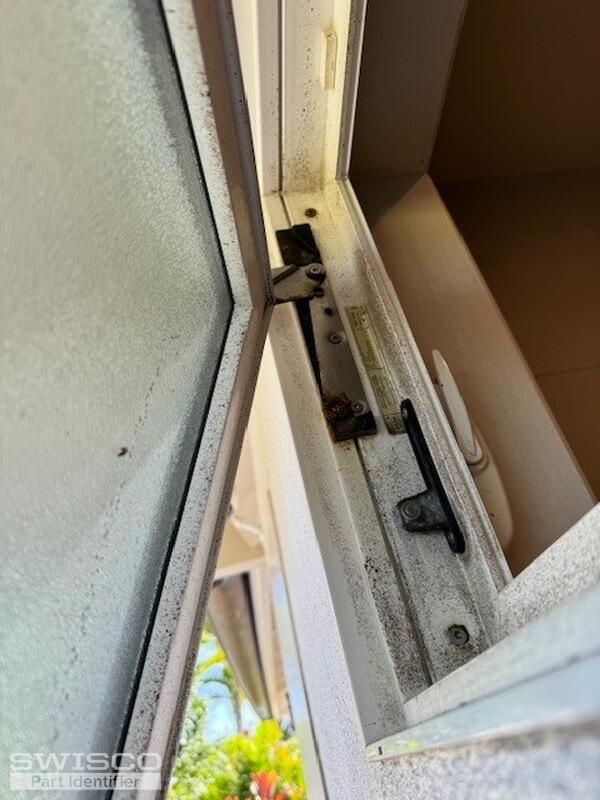

you noted to use the 36-048 hing bu thats for casement window , the winow i have is for a awning window do you have something similar to the photo attached
4 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

The 36-048 hinge can be used on awning-type windows as well!
