The operator mechanism for an awning style window
Part # 25 45054

4 user uploaded images

8 Replies

Casey from SWISCO

May 27, 2025 4:13 pm

Hello,

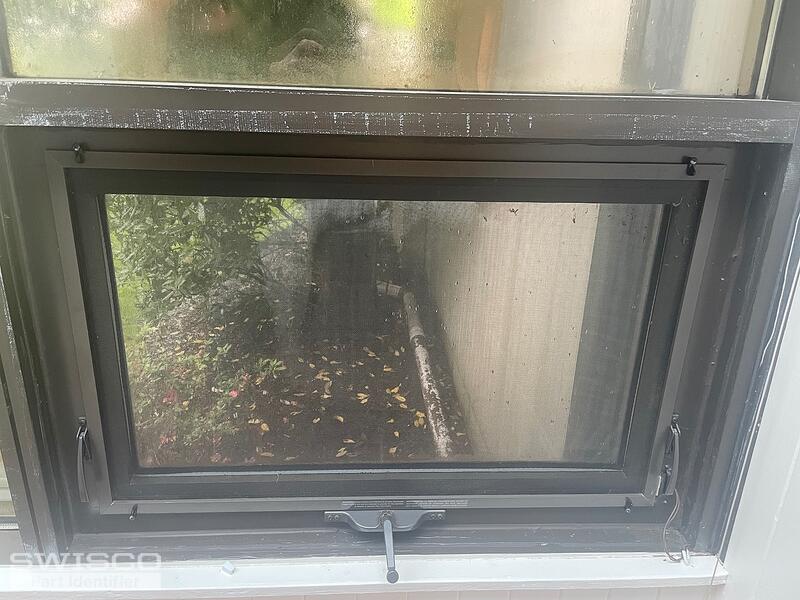

We'd be happy to look into this for you but we'll need a bit more information to get started. If you could open the window so that the operator arms that move the sash are fully visible, that would help us narrow down your options. Thank you!

Home Owner from Manhasset, NY

May 28, 2025 10:46 am

Thank you for the reply.

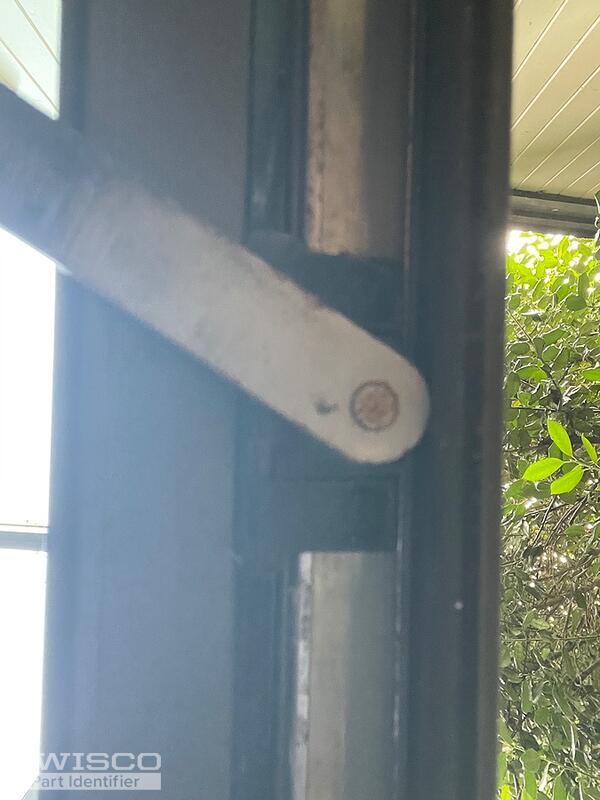

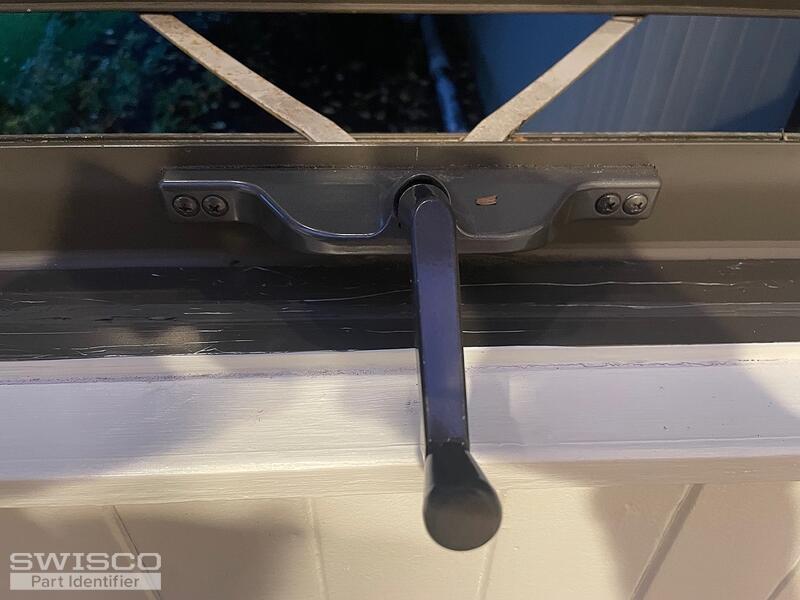

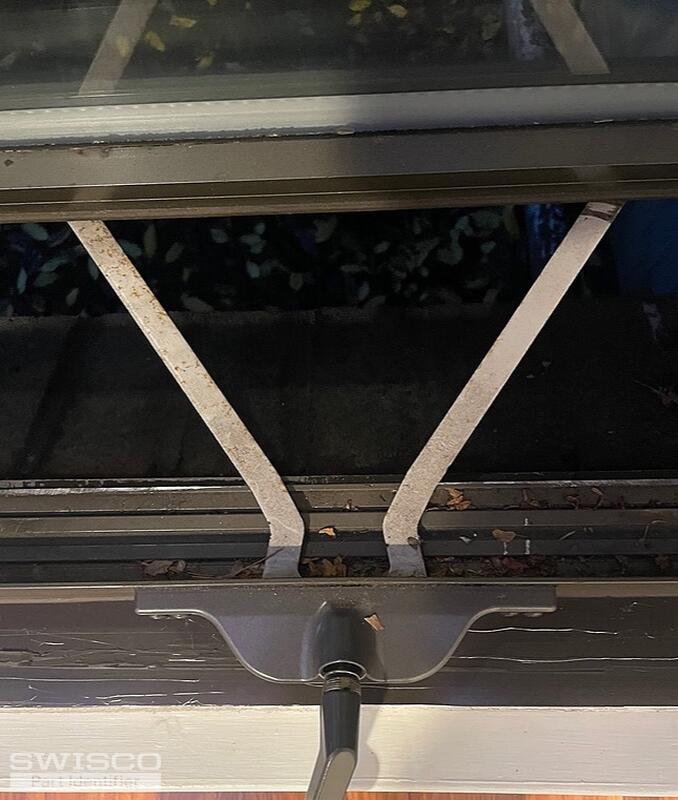

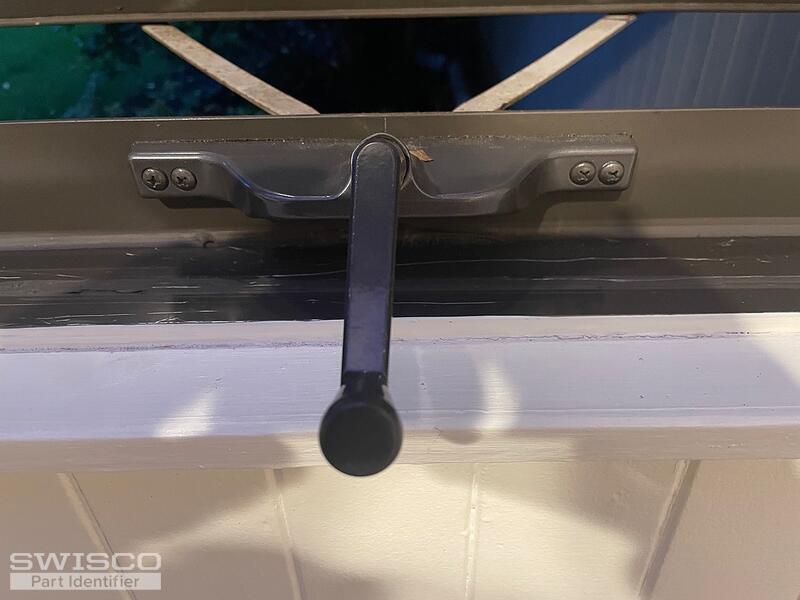

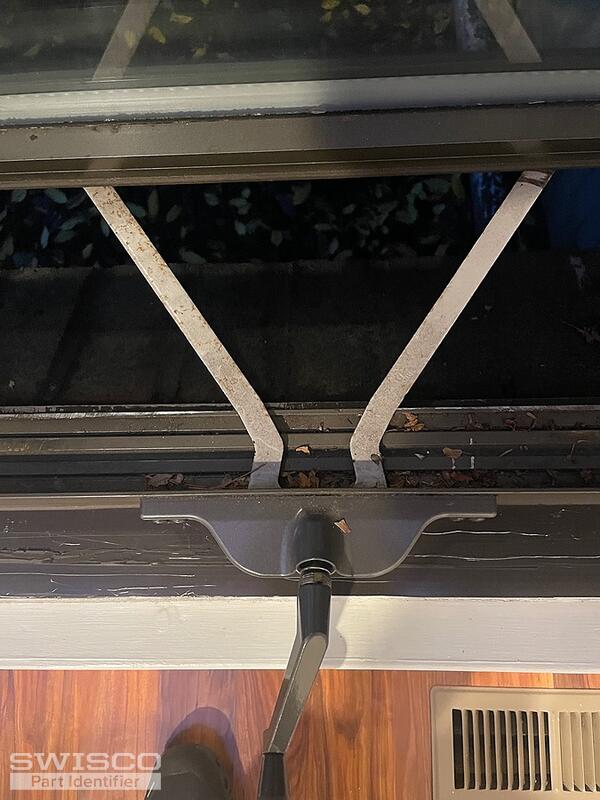

Attached are the pictures of the operator arms. Let me know if you need more.

Thank you

2 user uploaded images

Casey from SWISCO

May 28, 2025 1:43 pm

Thanks for getting back to us! We're heading in the right direction, but I'm not sure if any of our operators are an exact replacement. To confirm, I'd like to see photos of the fittings that attach the operator arms to the bottom of the sash. Please also write out the length of the arms. From there, we should have a better idea of what you need.

Home Owner from Manhasset, NY

May 29, 2025 8:37 pm

As you can see the arms have a bend in them. As close as I can measure they're approximately 10 1/2 inches in length.
Is that a clear enough picture of the fittings?

-Thank you

3 user uploaded images

Casey from SWISCO

May 30, 2025 8:30 am

Thanks for getting back to us but the fittings are currently obscured by the sash. We'll need you to detach one of the arms from the sash or take photos from underneath it so that the fittings are visible.

Home Owner from Manhasset, NY

Jun 16, 2025 12:32 pm

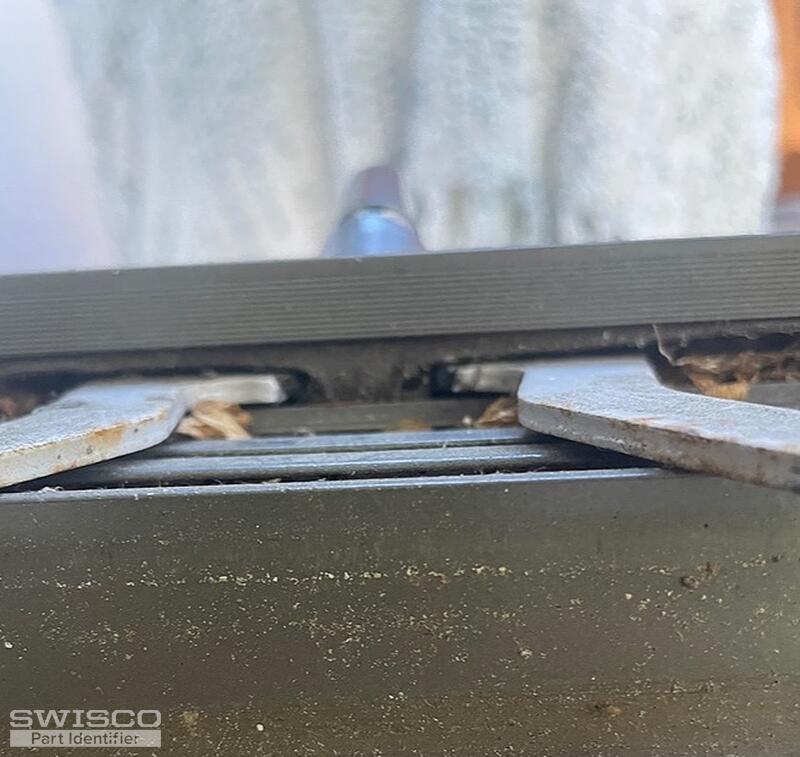

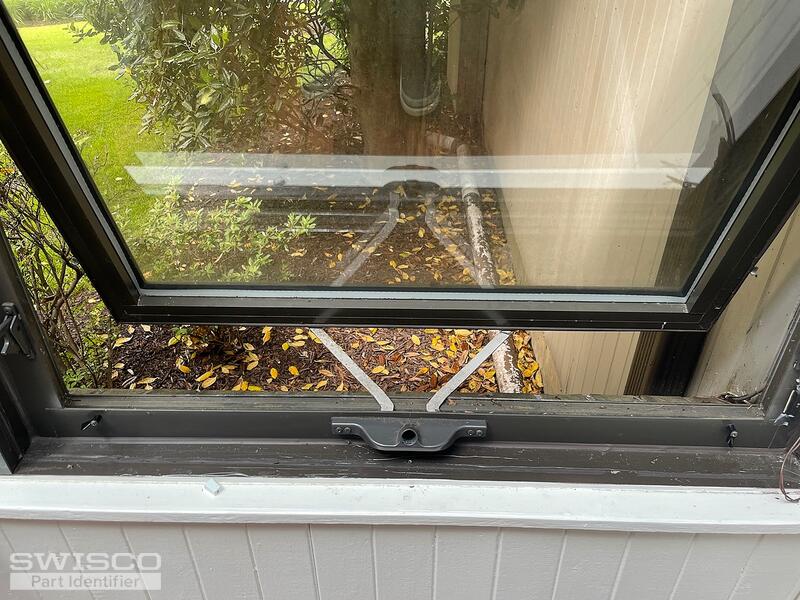

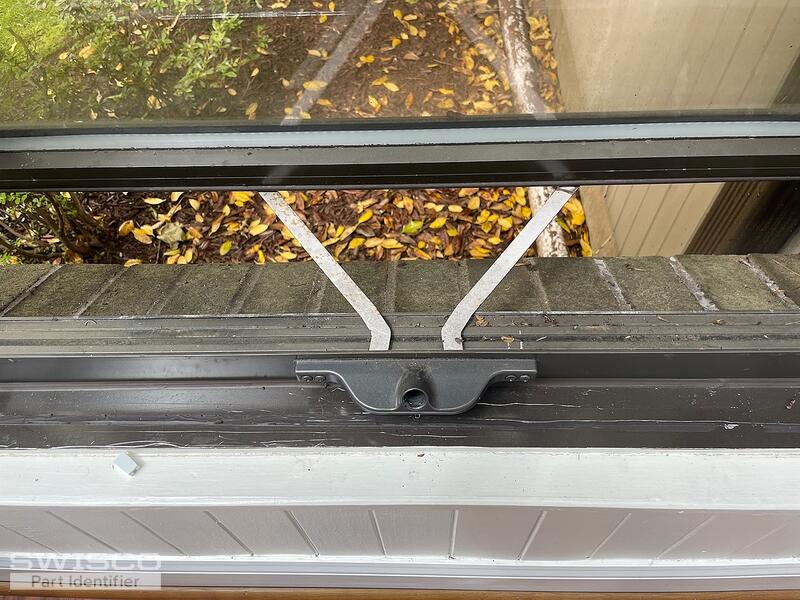

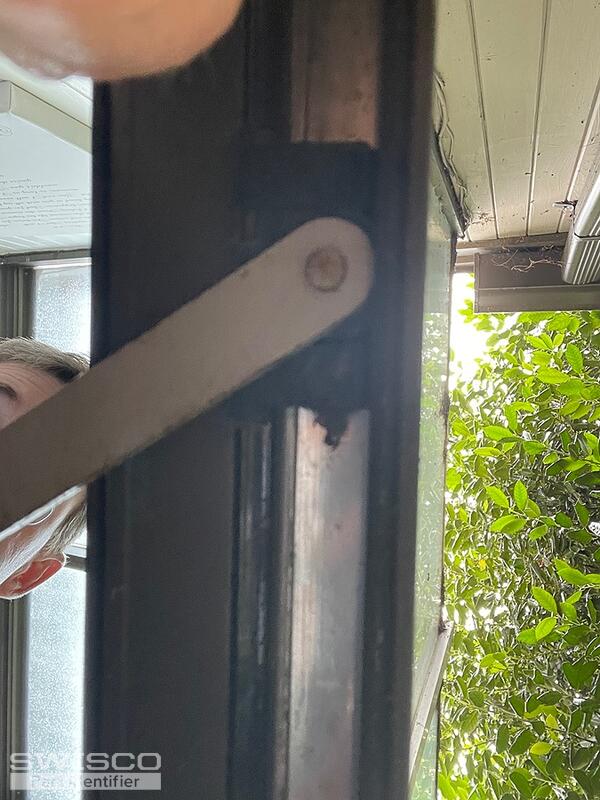

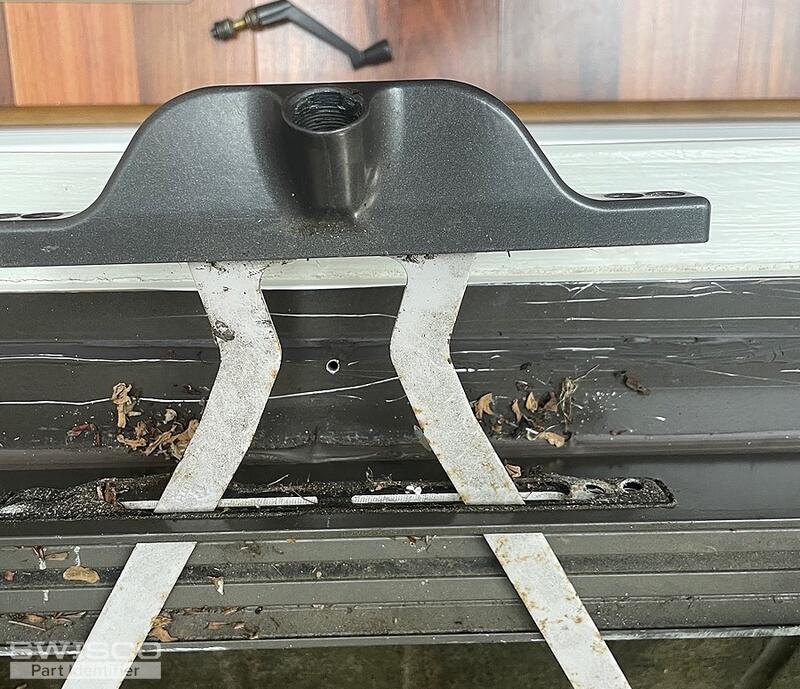

Here are more photos of the operating arms/fittings. Hopefully this helps. Please let me know if you need more pics.

thank you

5 user uploaded images

Dave Sr. from SWISCO

Jun 16, 2025 2:06 pm

Unfortunately, we can't confirm the correct replacement with the arms still attached to the sash frame. Once you detach the operator fittings from the sash track, compare the 39-312 or the shorter 39-453 to your assembly. If there are still discrepancies, please get back to us with additional photos and confirm your exact measurements compared to ours.
