Awning window replacement cranks

A handy person from Ohio says:
January 13, 2023

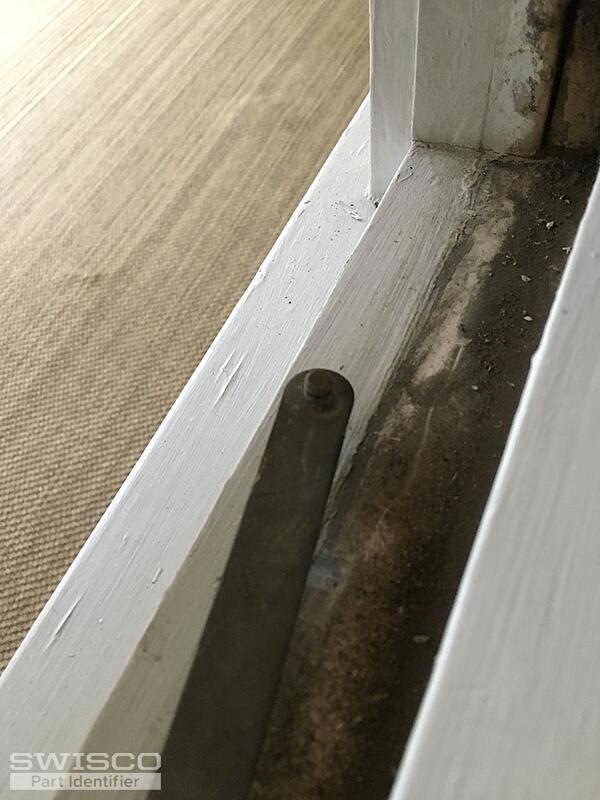

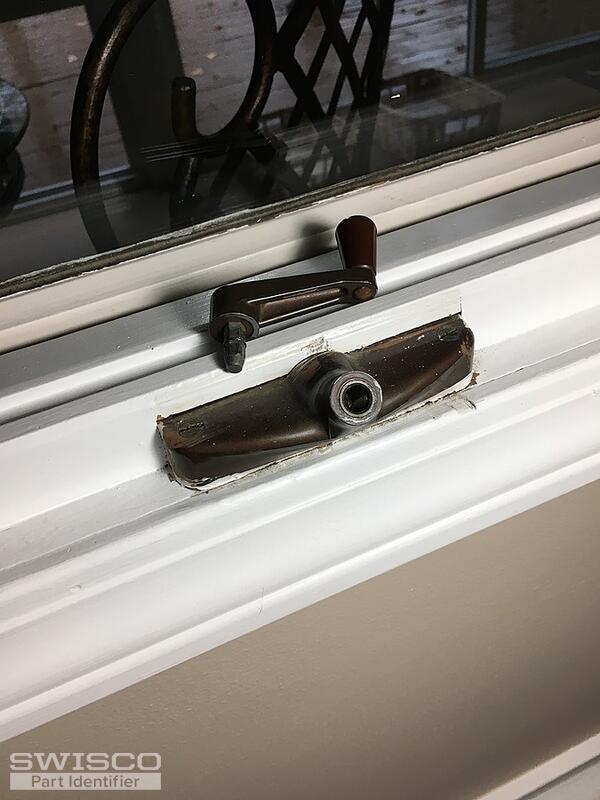

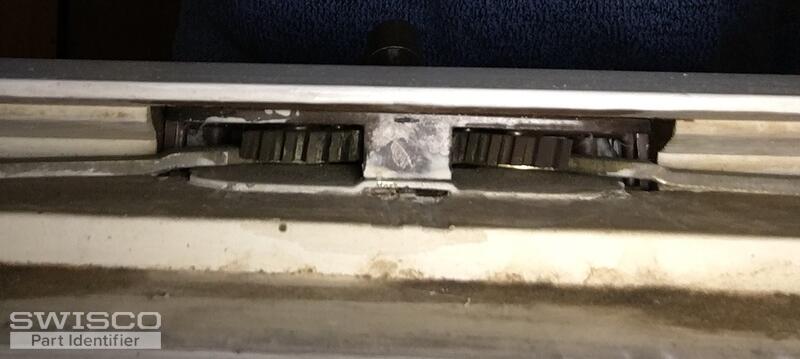

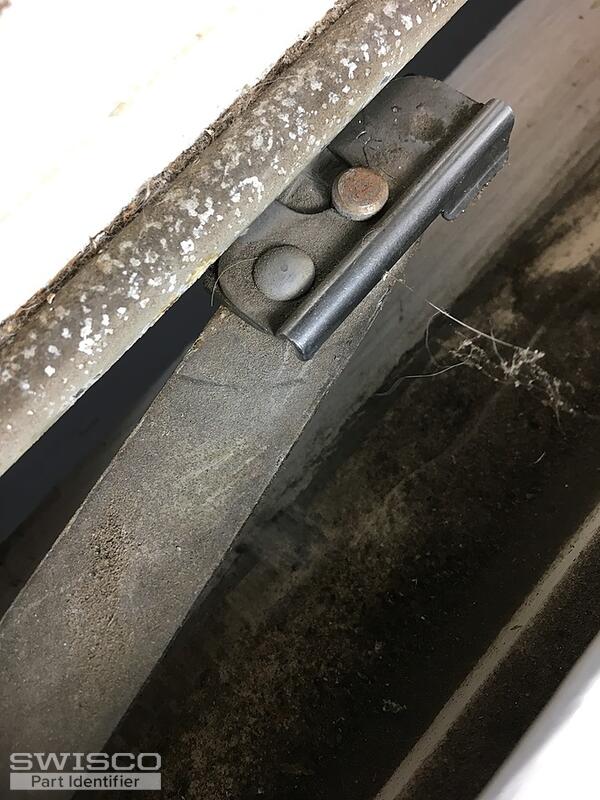

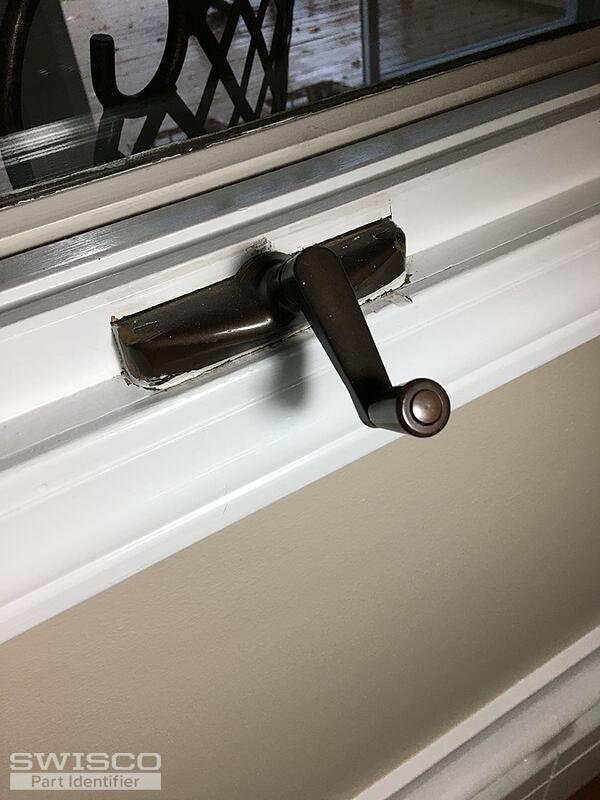

I need to replace three awning window cranks from the 1950s that have handles with stripped posts. The windows are single sashes, opening outward and made of wood. Sadly, the posts in the handles are not removable and the cranks are also stripped inside because they barely operate using an allen wrench. The cranks are double arm with a span of 36 inches. Please see the photos below.

Is this enough for you to identify the cranks? I don't care if the windows with the new cranks don't open as far as they currently do.

(I haven't removed the window trim to show the whole mechanism because I'd like to have the replacements on-hand first!)

Thank you,

M.

Thumbnail of the uploaded file named IMG_1169.JPG
Thumbnail of the uploaded file named IMG_1172.JPG
Thumbnail of the uploaded file named IMG_1179.JPG
Thumbnail of the uploaded file named IMG_1178.jpg
Thumbnail of the uploaded file named IMG_1168.JPG
Profile picture of Emily
Emily from SWISCO responded:
January 17, 2023

Thank you for reaching out to us. The operator in your photos is no longer made, unfortunately. The only thing we can offer is the 39-389 and 39-390 , though we can't guarantee they will work. Review the specifications and see if you think you can adapt one to your window.

A handy person from Ohio says:
January 17, 2023
Thank you. Can you please tell me what handle goes with the 39-389 ?
Profile picture of Emily
Emily from SWISCO responded:
January 17, 2023

Certainly, these operators use the 39-286 handle.

Casement Window Handle, fits Andersen
Casement Window Handle, fits Andersen
39-286
$7.25
Awning Operator Kit, Long Arm
Awning Operator Kit, Long Arm
39-389
$85.20
Awning Operator Kit, Short Arm
Awning Operator Kit, Short Arm
39-390
$82.70
