BALANCE IDENTIFICATION

Contractor from MILWAUKEE

Sep 30, 2020 1:11 pm

WEATHER SHIELD WINDOW
BALANCE MEASURES 34" IN LENGTH
IT HAS A BALANCE KNIFE SHOE WHICH IS STILL IN THE WINDOW FRAME
THE BALANCE WAS NOT INSTALLED WITH AN S CLIP.. IT WAS SCREWED IN AT THE TOP
ALTHOUGH IT IS RIBED IT FITS IN THE JAMLINER LIKE A PLAIN BALANCE(THERE IS NO OVERRLAP OVER RIBED CHANNEL)
YOUR HELP WILL BE APPRECIATED

3 user uploaded images

4 Replies

Bob from SWISCO

Oct 5, 2020 2:15 pm

Can you remove the bottom knife shoe and show me? Its identity will help narrow this down. Many thanks.

Contractor from MILWAUKEE

Oct 5, 2020 7:12 pm

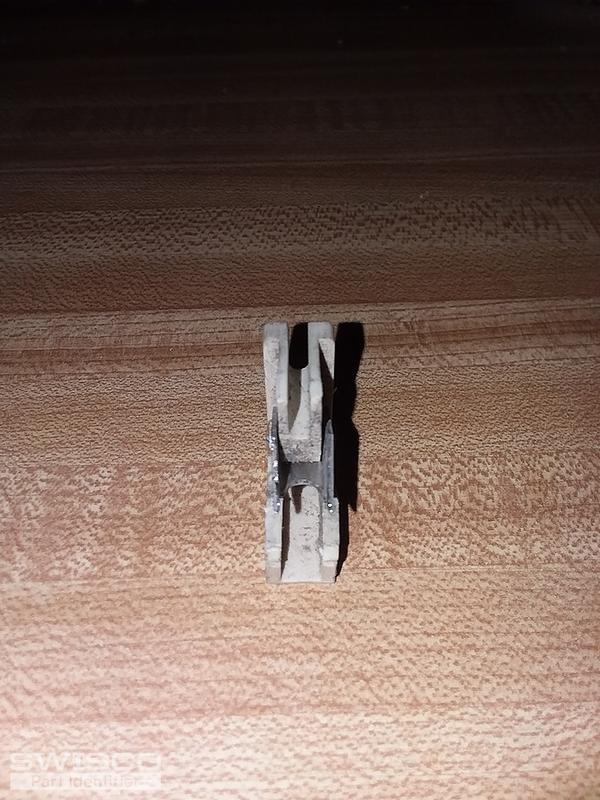

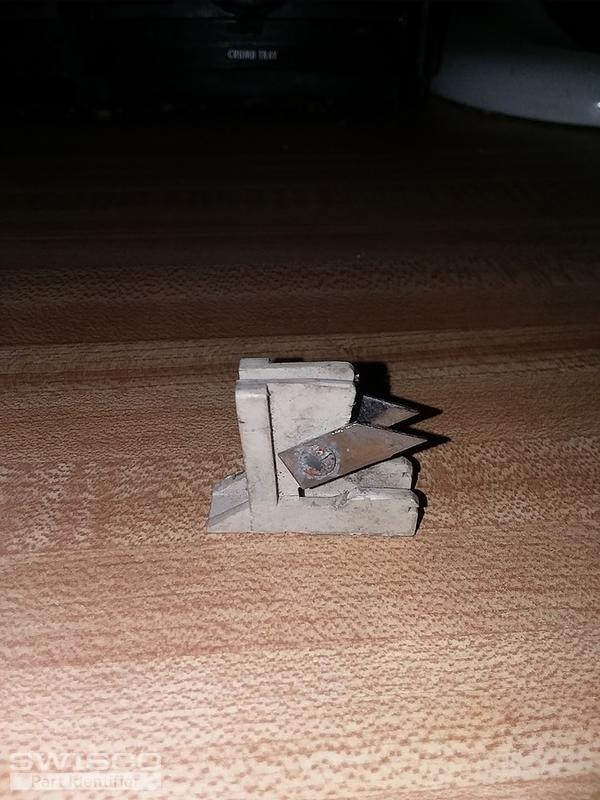

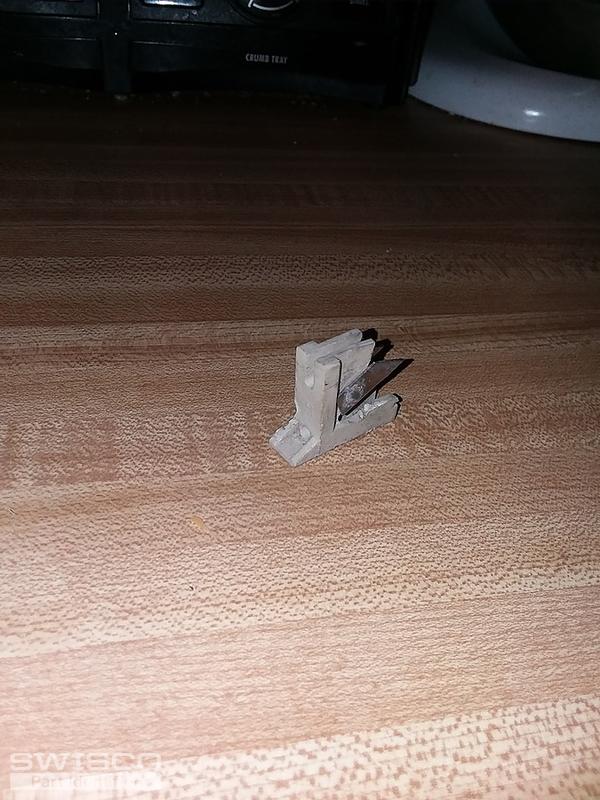

HERE ARE THE REQUESTED PHOTOS

3 user uploaded images

Bob from SWISCO

Oct 6, 2020 2:09 pm

Thanks for clarifying. I believe you can use our standard S751-34. A stamp option of 33TG would support a window sash in the weight range of 29 through 36 lbs, does that seem right? Weigh your sash if you're uncertain. We don't sell these balances with a hole for a screw, but we suggest drilling a hole in the metal channel to make room for one; this should work. Let me know what you think.
