34" Series 751 Channel Balance

Product Code: S751-34

34" Series 751 Channel Balance
Main product image of the S751-34 34" Series 751 Channel Balance

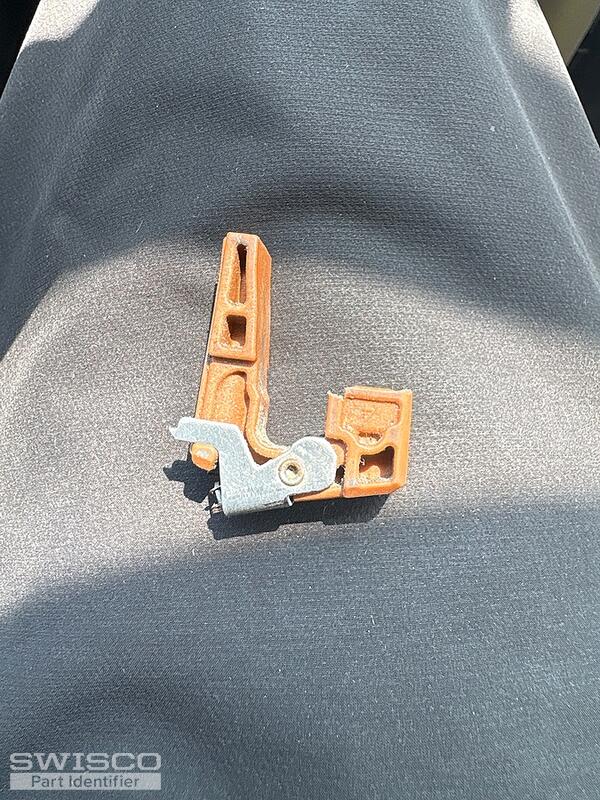

Detail view of balance shoe
How to install a ribbed tilt channel balance with knife lock shoe
$11.45/each
Quantity Price
1-11 $11.45
12-49 $10.30
50-99 $9.73
100-249 $9.16
250+ $8.59
Please Note: Bulk pricing applies only to purchases of the same option
Option:
33HD
add $0.45
33TG
add $0.95
Product Description
This is a Series 751 channel balance for tilt-in windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.
  • This balance has a 34 long metal channel.
  • Comes fully assembled with a 15-014 shoe attached and will be ready to install out of the box.
  • The width of the metal channel measures 9/16.

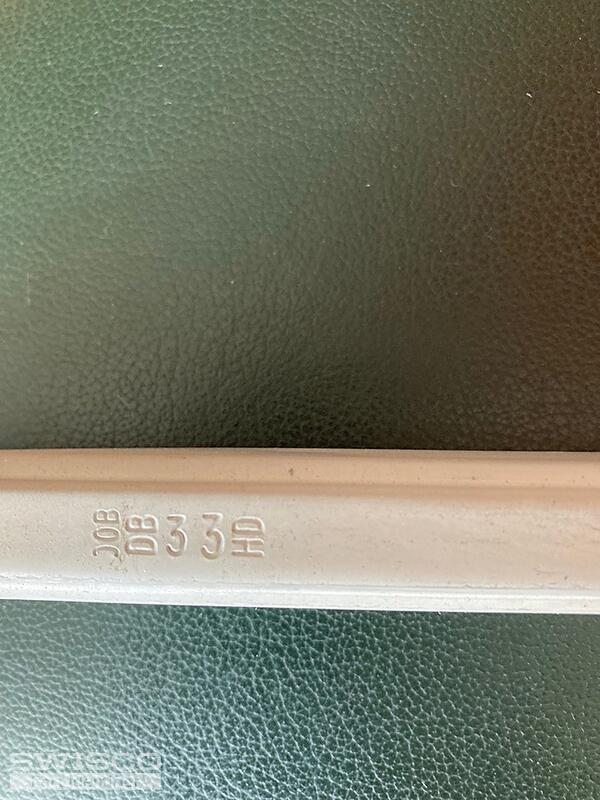

  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • Can work for either the left or right side of the window interchangeably.
  • Used in windows manufactured by Kolbe as well as others.
  • Stamp Option Sash Weight Range
    33HD 24 to 29 lbs
    33TG 29 to 36 lbs
    *This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
Customer Questions & Answers
Discussion # Of Replies Last Post Date
How to order an S751-33 with a 15-197 shoe 4 Jan 20, 2019

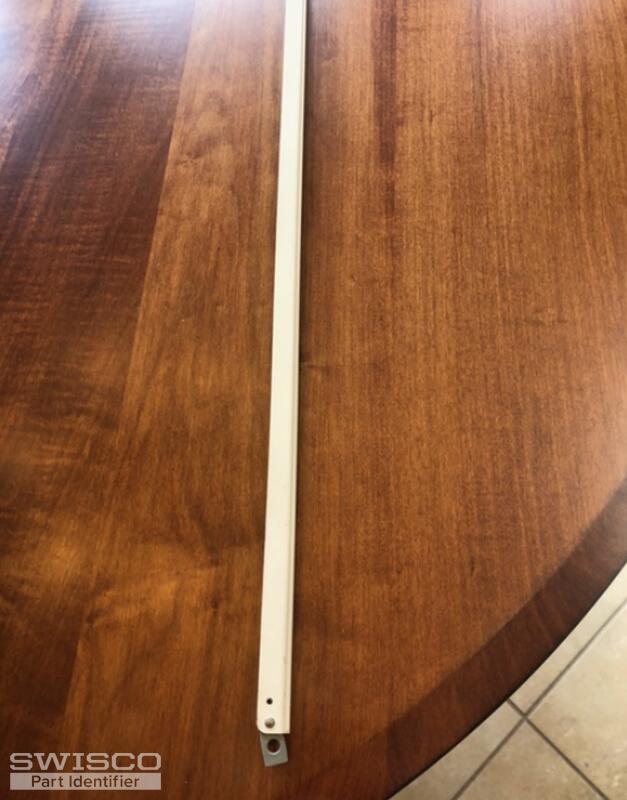

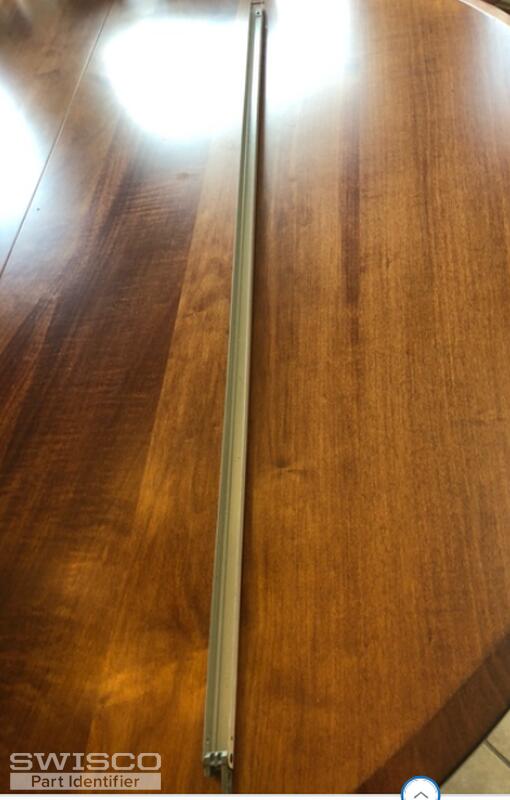

Channel balance rodThis discussion includes image(s). 2 Nov 13, 2018
Window Channel BalanceThis discussion includes image(s). 2 Oct 1, 2018
Block and channel replacement This discussion includes image(s).This discussion includes video(s). 2 May 1, 2017
Weather shield shash balanceThis discussion includes image(s). 4 May 15, 2015
Window balance hard to close 8 Nov 26, 2014
34B Replacement Channel BalanceThis discussion includes image(s). 9 Oct 28, 2014
Correct Parts?This discussion includes image(s). 2 Sep 5, 2014
