BF Rich Balance Assembly

A quick learner says:
December 15, 2020
Hello,

Attached are pictures of the balance assembly from my BF Rich Dual Hung Window.

It weighs 25 lbs.

Can you tell what replacement parts I need?

Thanks,

Rob

Thumbnail of the uploaded file named IMG_1933.jpg
Thumbnail of the uploaded file named IMG_1935.jpg
Thumbnail of the uploaded file named IMG_1923.jpg

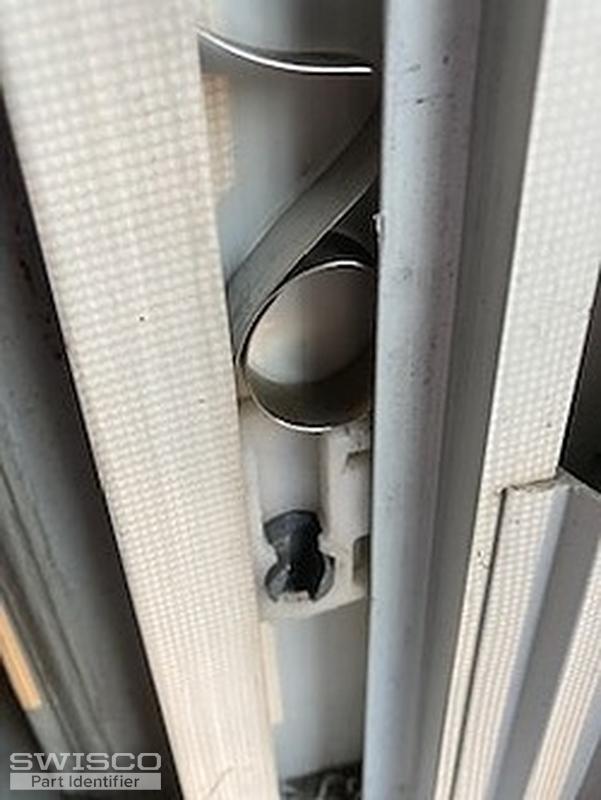

Thumbnail of the uploaded file named IMG_1921.jpg

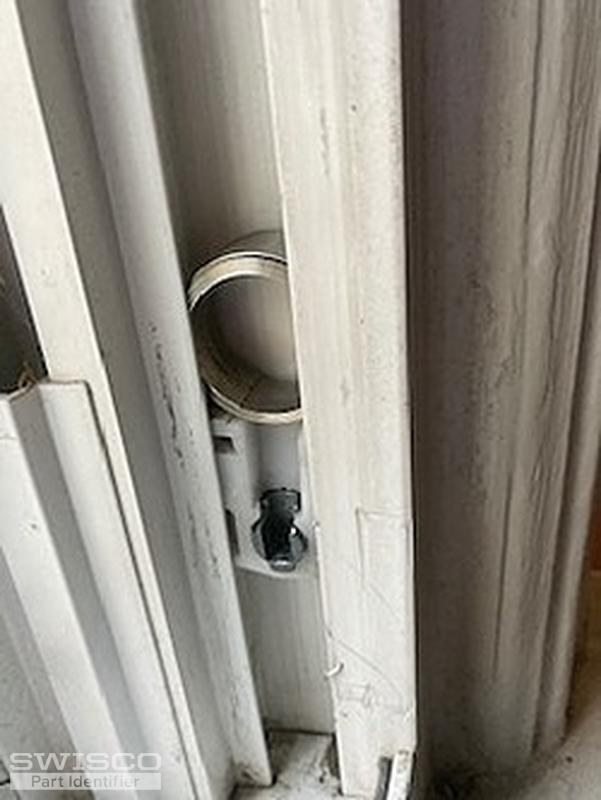

Thumbnail of the uploaded file named IMG_1922.jpg
Profile picture of Tom
Tom from SWISCO responded:
December 17, 2020

Hello, Rob. We should be able to help with this, but I'm having a little trouble making out your balance system based on these photos. Would it be possible to see a picture of the pivot shoe itself removed from the track entirely? Some important details are obscured while it's still installed, so seeing it out should allow me to pinpoint what system you have.
A quick learner from MD says:
January 23, 2021
Hello,

Attached are pictures of my Pivot Shoe for my BF Rich Double Hung Window. The pivots shoes are working. I believe I need new constant force spring for both sides of the window.

Please let me know if you need additional pictures.

Thanks for your assistance.

Thanks,

Rob

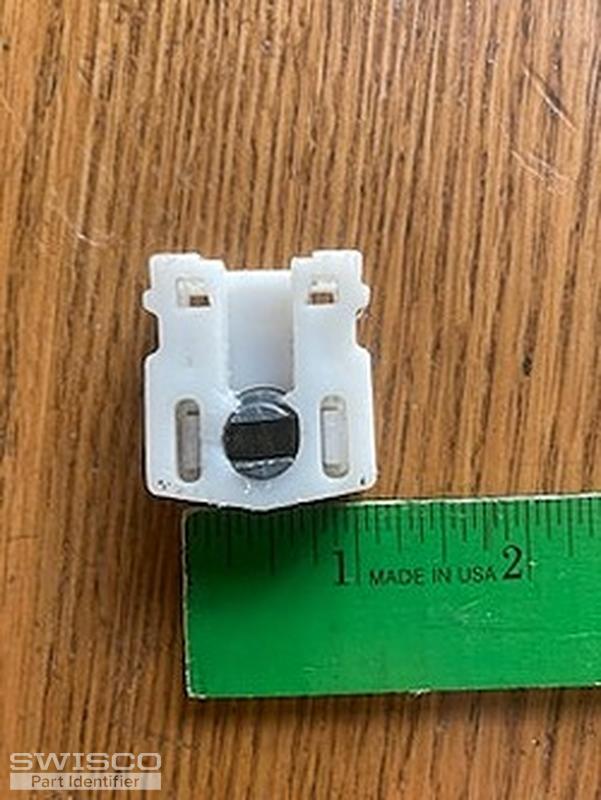

Thumbnail of the uploaded file named IMG_1947.jpg

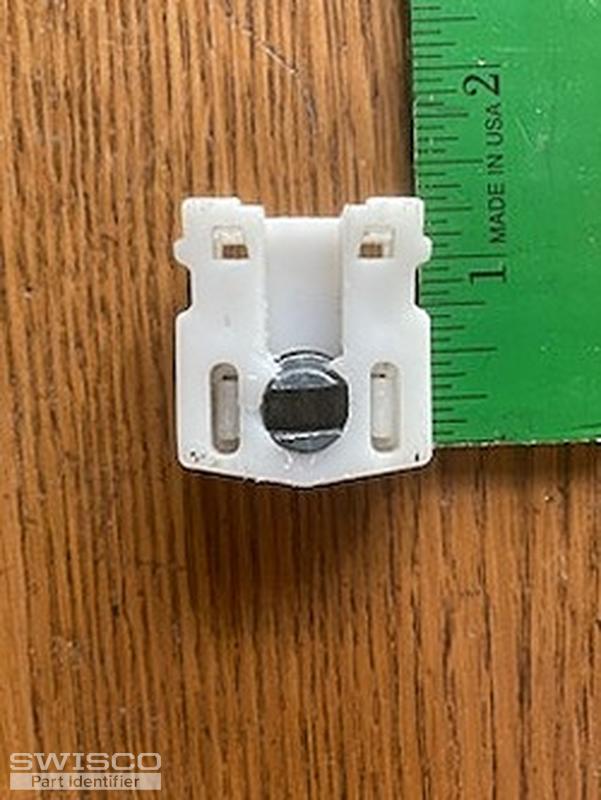

Thumbnail of the uploaded file named IMG_1948.jpg

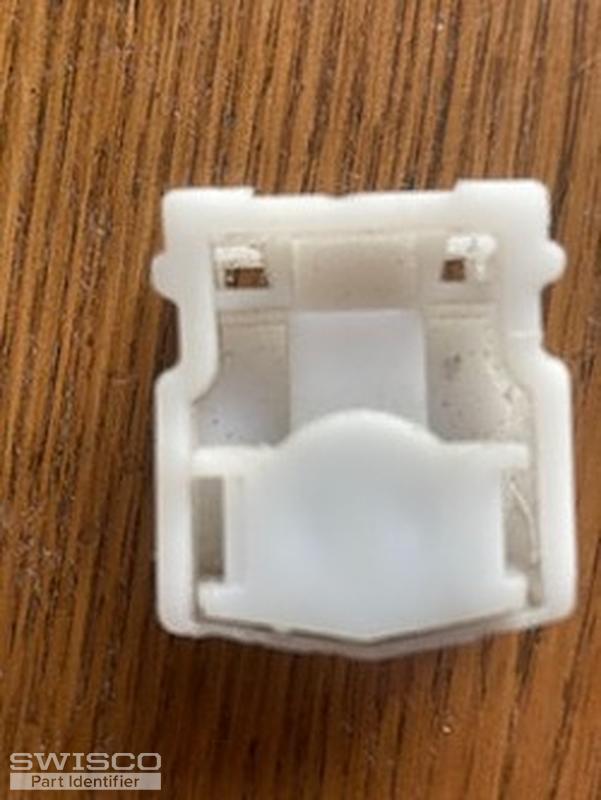

Thumbnail of the uploaded file named IMG_1949.jpg
Profile picture of Paul
Paul from SWISCO responded:
January 26, 2021

Hello, Rob. Thank you for these photos. We believe you can use two S160-6 coil springs on each side of the window for your 25 lbs. sash. The coil springs are piggy backed, where the top spring locks on to the lower spring and the lower spring locks onto the pivot shoe.

We don't have the individual nylon coil spring housings, but we do have 15-150D double support to hold them. That should work just as well.
A quick learner from MD says:
January 26, 2021

Hi Paul,

I just place the order on-line.

I ordered four S160-6 and two 15-150D

Thanks for your assistance.

Rob

Profile picture of Paul
Paul from SWISCO responded:
January 26, 2021

Excellent, thank you so much. Please let me know if you had any follow up questions.
