BF Rich Window Hardware

A home owner from PA says:
April 30, 2020

I have BF Rich Windows 013460 4098 DH VT

CL LE 1 VTL240EW.

I need Coil Balance Shoe W 1 1/4"x H 1 3/8" x 9/16"

and Balance Spring

(2 sets) for W 28.625 H 61.5 C 30.75 15 LBS

(1 set) for W 28.625 H 37.25 c 18.62 10LBS

Thank You

Dale

Thumbnail of the uploaded file named window1.png
Thumbnail of the uploaded file named window2.png
Thumbnail of the uploaded file named window3.png
Profile picture of Bob
Bob from SWISCO responded:
May 4, 2020

Hey Dale. You show two different pivot shoes in your photos. The first looks like it might be an older version of our 15-228, but we'd like to see the pivot bar that fits into that metal cam just to confirm this. This shoe uses either our Series 160 1/2" thick Coil Springs or the Series 165 3/8" thick springs. Compare the thickness of your existing springs to confirm which Series you need.

The other pivot shoe you show is our 15-175, which uses the Series 152 Coil Springs.
A home owner from PA says:
May 5, 2020
Picture 1 & 2 from left to right are for the small window.
Picture 3 is for the large window.
Picture - pivot bar 1 is for the small window.
Picture - pivot bar 2 is for the large window.
The coil spring is 1/2" wide for both window.

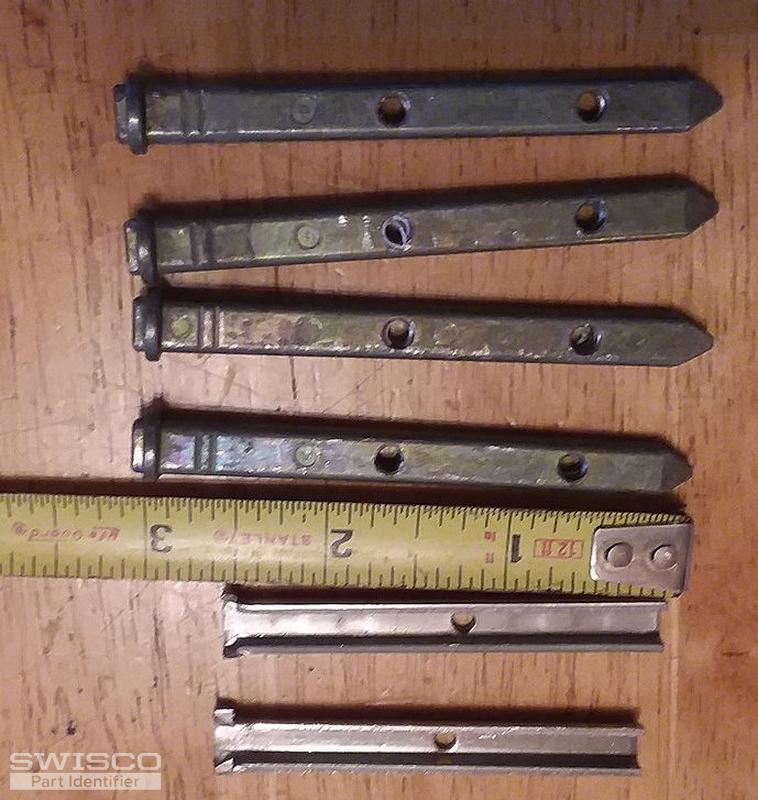

Thumbnail of the uploaded file named pivot bar 2 large window.jpg

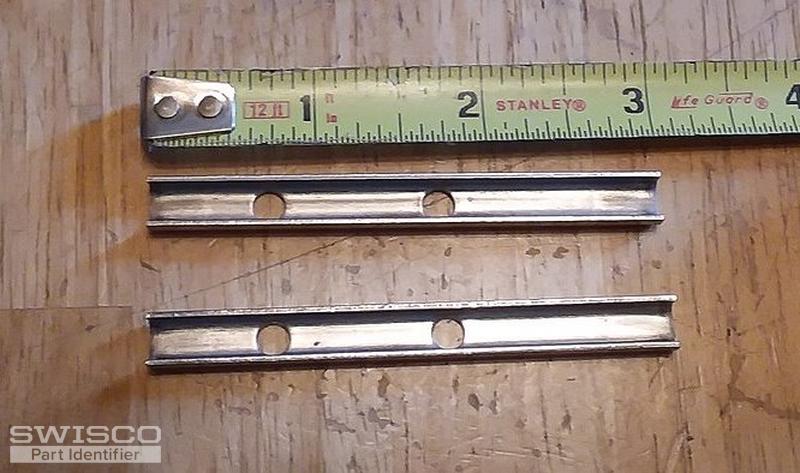

Thumbnail of the uploaded file named pivot bar 1 small wondow.jpg
Profile picture of Bob
Bob from SWISCO responded:
May 5, 2020

These pivot bars look like our 26-226 and 26-040, respectively. Compare both with your old hardware to ensure they match what you need.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-228
$2.57
Pivot Bar, 3-1/16"
Pivot Bar, 3-1/16"
26-226
$2.55
Pivot Bar, 3"
Pivot Bar, 3"
26-040
$1.57
