BSI 1540 Block & Tackle window balance

Landlord from Powell, OH

Apr 20, 2022 9:53 pm

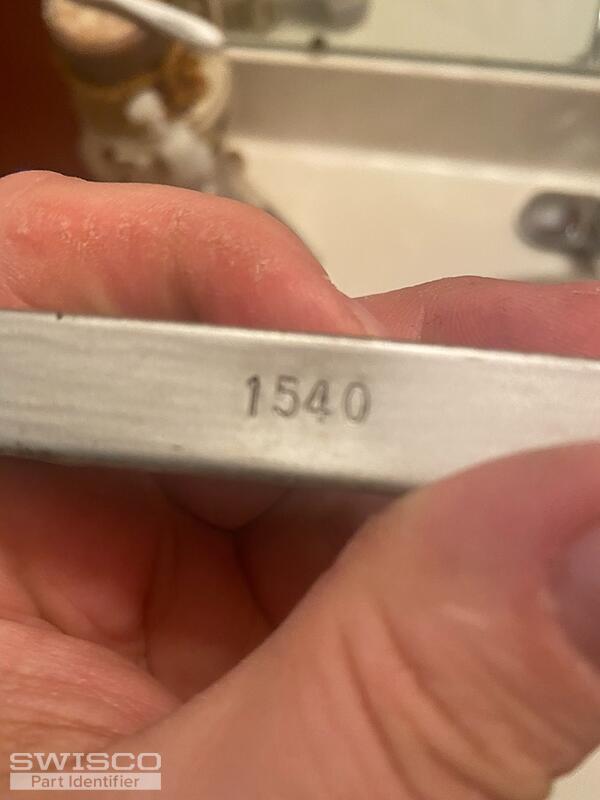

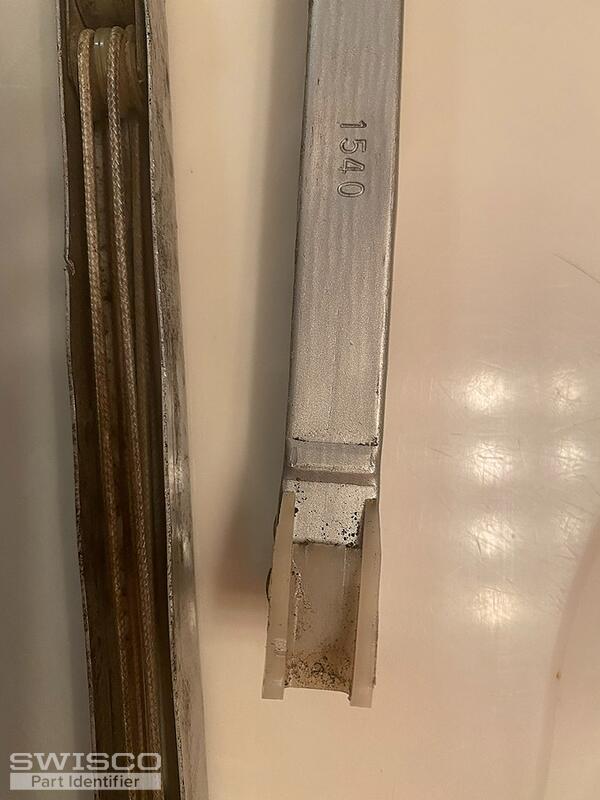

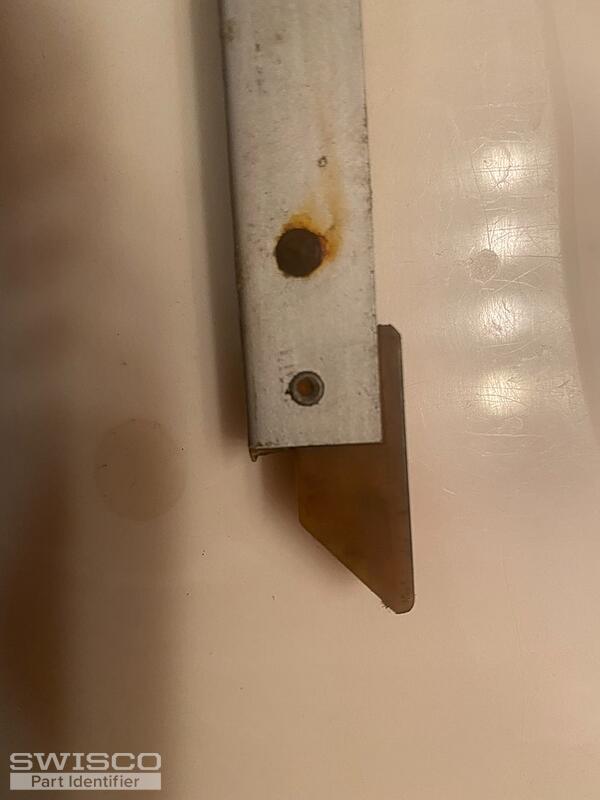

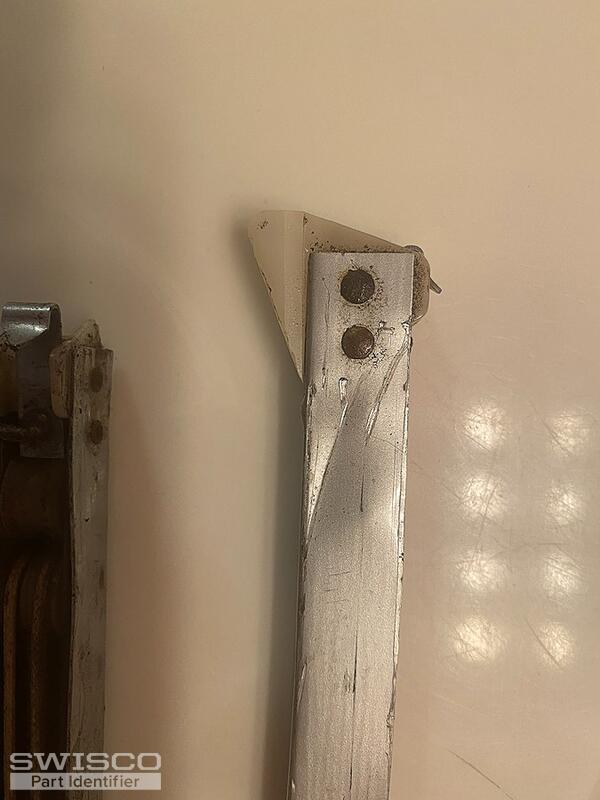

I need two 16" 1540 Block & Tackle window balances. I'm not sure but I think the bottom mount guide that attaches to the window may be broken as well. Any videos on how to know where the bottom window guide attaches is helpful.

I have another rental where I fixed the window using your help successfully. I had no idea you're so popular. TYVM!

4 user uploaded images

10 Replies

Emily from SWISCO

Apr 22, 2022 11:01 am

Hello there!

Depending on the depth of your bottom shoe, you could have either our S351-16 or S390-16 channel balance. The Series 351 has a 1" deep shoe while the Series 390 has a 1-1/8" shoe. Take a look at the image below to determine which balance you'll need. You will also need the 1540 spring strength option.

As for the guide, can you show me some pictures of what you're referring to?

Comparison of the S351 and S390 balance shoes.

Landlord from Powell, OH

Apr 27, 2022 10:48 am

It's the 1.125". I know how it goes inside but what does the balance catch onto the window? I'm concerned it's broken and missing bc I don't see it. The balance slides out the bottom when I reinstall it.

Thanks,
Eric

Emily from SWISCO

Apr 27, 2022 12:35 pm

Thanks for clarifying. It sounds like you need a take out clip like our 16-002. Do you at least have the slots where the take-out clips install? If so, you can simply purchase new ones to replace those that are missing.

If you don't have the slots, you could consider the "screw trick". You can install a screw into the jamb around about where the take out clip would've been and it will serve the same function. After you're done, you'd simply remove the screw.

Landlord from Powell, OH

Apr 27, 2022 1:47 pm

I have the TO clips and they are fine. But what about the other end? What stops the opposite end of the tk out clips? How is the opposite end held in? The end with the hook?

Emily from SWISCO

Apr 27, 2022 2:15 pm

Yes, the hook at the end of the cord hooks into a slot in the window jamb. See the video below. At the 0:43 mark you'll see exactly what I mean.

Landlord from Powell, OH

Apr 27, 2022 3:25 pm

I do have the tk out clips and spot for the hook. How do I order two window balance and which ones?

Emily from SWISCO

Apr 27, 2022 3:42 pm

If your bottom shoe depth is 1-1/8", you'll need the S390-16 with the 1540 spring strength option. All orders can be placed directly on our website as well.

Landlord from Powell, OH

Apr 27, 2022 4:12 pm

Any idea what top sash guides I need? I'd like to get those as well.

Tom from SWISCO

Apr 28, 2022 9:50 am

Your balance is compatible with many, many different kinds of top sash guides. I'd be happy to make a recommendation but I will need the original as a reference.

If possible, please remove an undamaged version from the window and show me a clear picture of it from the front and side. Think of it like a mugshot. I can then see if anything in our catalog matches up.
