Balance Identification

Quick Learner from Minnesota

Mar 29, 2025 10:55 am

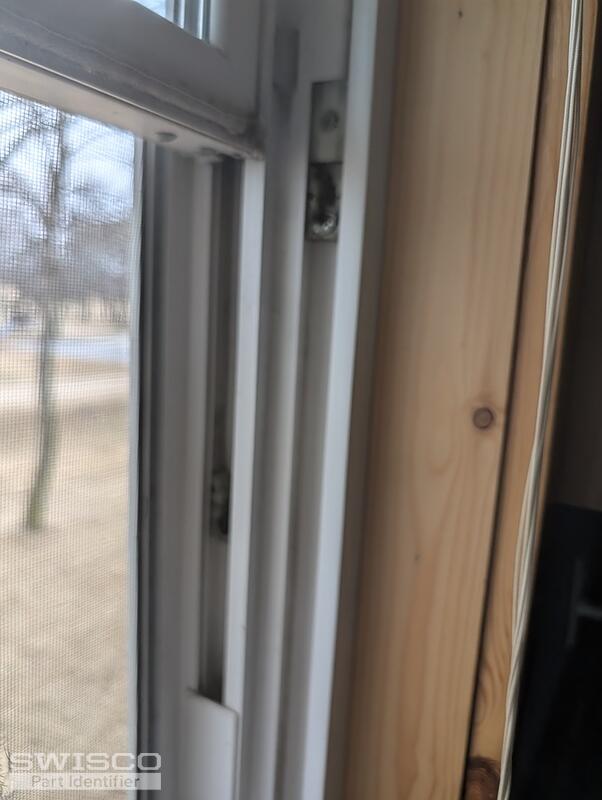

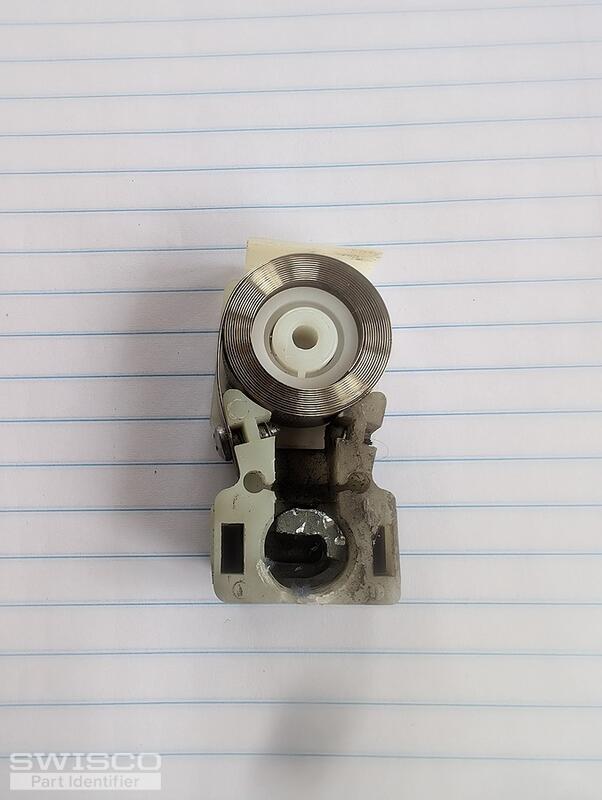

Can you help me identify this balance assembly? The coil has an eight stamped on it. The sash dimensions are 18 1/2" x 30 1/4. The coil springs appear to be ok. 3 out of the 4 pivot shoes are broken for this double sash window.

5 user uploaded images

2 Replies

Bob from SWISCO

Mar 30, 2025 12:45 pm

Hello there. This is an older version of the 15-177 Pivot Shoe, which works with Series 152 Coil Balances. This system is modular, meaning you can reuse existing parts that are not broken. Let me know if you have further questions.
