Balance Pivot - Window manutacture unknown.

Question

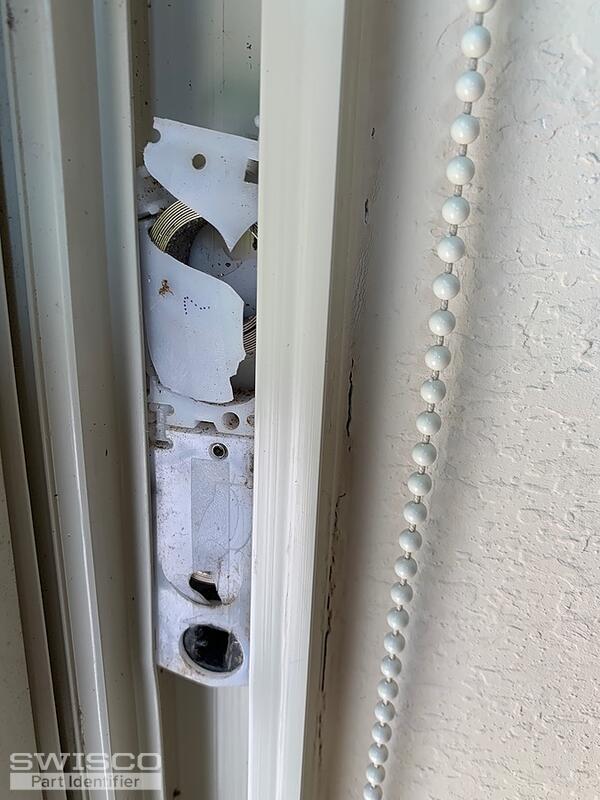

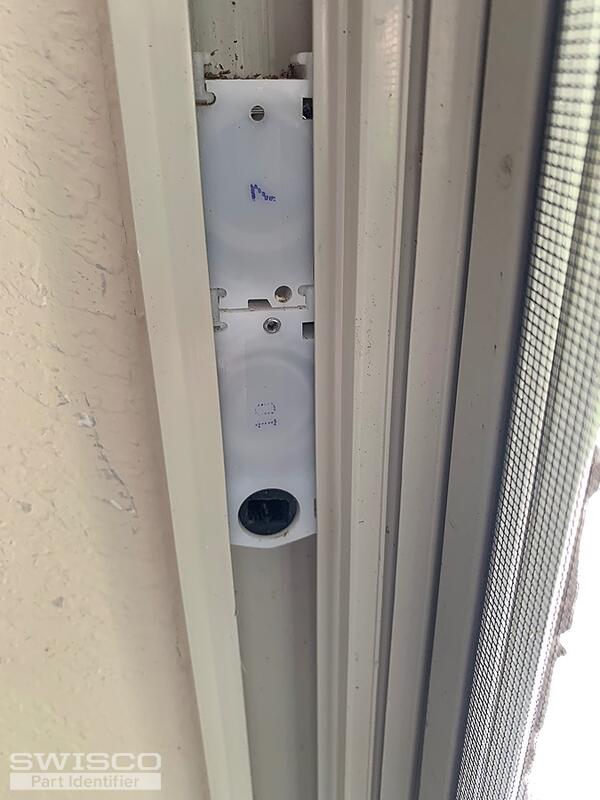

Looking for a balance pivot for an unknown brand window.  The pivot has the numbers 7 and 10 on it.  One was damaged - Img 1503.  Img 5012 is an undamaged balance.  These are different from other pivots I have seen.  The ones I am familiar with have a slot on top that the rod slides into.  This one doesn't work like that.  I have no idea how to reinstall the window if I can find a balance.  The rod on the window is U shaped very much like the attached screenshot.  Any ideas would be greatly appreciated.  Thanks for your assistance.

Jasmine · Accepted Answer

Thanks for posting! Your coil housings can be replaced with the 15-087 Coil Housing Pivot and the 15-086 Tandem Coil Housing. I am confident these are the right replacements for your repairs but be sure to look over the dimensions below for the housing pivot. For instructions on how to install these, take a look at the video tutorial tagged below.

These housings are compatible with the Series 180 Coil Balance. Since they are marked with a 7 and 10, you'll need the S180-10 and the S180-07.

Detail of 15-087

The pivot bar typically used with the the housing pivot is the 26-040. Be sure to look over the dimensions.

Alternate image for 26-040
