Balance Rod

Handy Person from Yulee,Fl

Dec 10, 2013 5:47 pm

I have Kinco windows in our home. We have a few balance rods that have broke or do not work the way they should. the balance rod is 25 inches long with a string hook on the bottom. The only markings on the rod is 2440 in tinny letters BSI. Similar to the 62FC-25D-60518.It would not hurt to replace the 2 Tie Bar Guide or Pivot Shoe code 15-105

6 Replies

Tom from SWISCO

Dec 11, 2013 2:41 pm

Could I see a few pictures of the balance? I would like to see both ends as well as the hook at the end of the pulley string. Can you also tell me the thickness and width of the metal channel? Thanks!

Quick Learner from Yulee,FL

Dec 12, 2013 4:49 am

channel is 1/2" wide and 9/16s high and 25" long it is U shaped

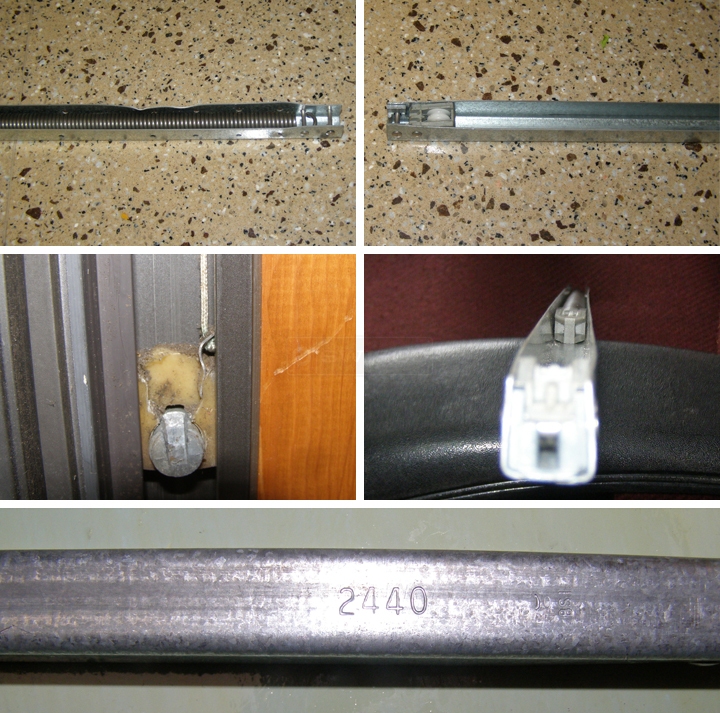

User submitted photos of a window balance.

Handy Person from Yulee,FL

Dec 13, 2013 8:31 am

Balance is 1/2" wide and 9/16- 19/32s high and 25" long. It has a hook similar to 62-105.

Handy Person from Yulee,FL

Dec 13, 2013 8:32 am

Balance is 1/2" wide and 9/16- 19/32s high and 25" long. It has a hook similar to 62-105.

Paul from SWISCO

Dec 13, 2013 10:32 am

Thank you for the images. I recognize this balance. While it is not one of our standard Series, we can specially make it for you. I'll go ahead and email you a purchase link and price quote for your review. Please let us know if you have any questions!
