Balance Shoe and 2 1/4" Pivot Bar

Question

The window I need to repair is manufactured in 2014 by Alside. The serial number on the window is 254-061257.

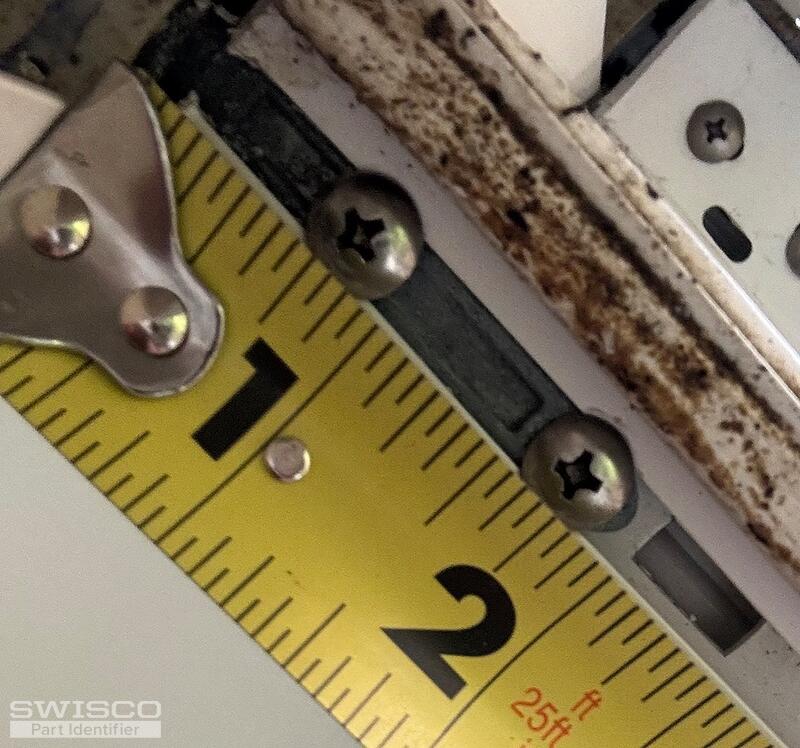

I need the Balance Shoe and 2 1/4" Pivot Bar.

Jasmine · Accepted Answer

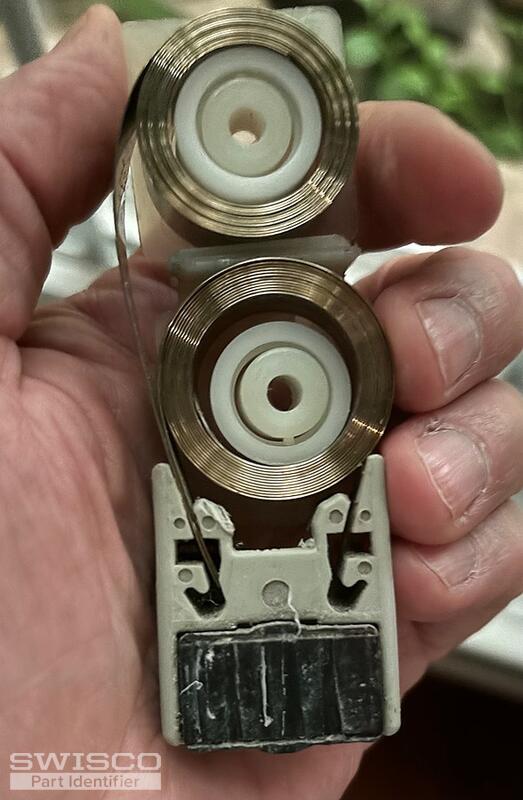

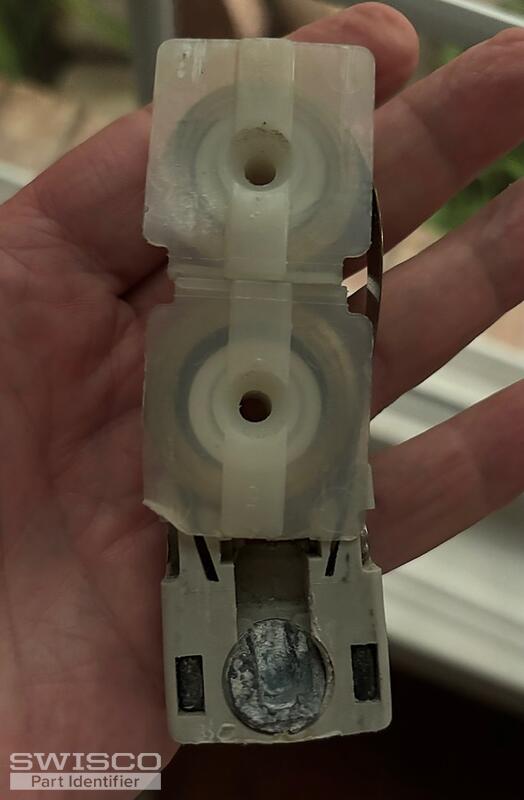

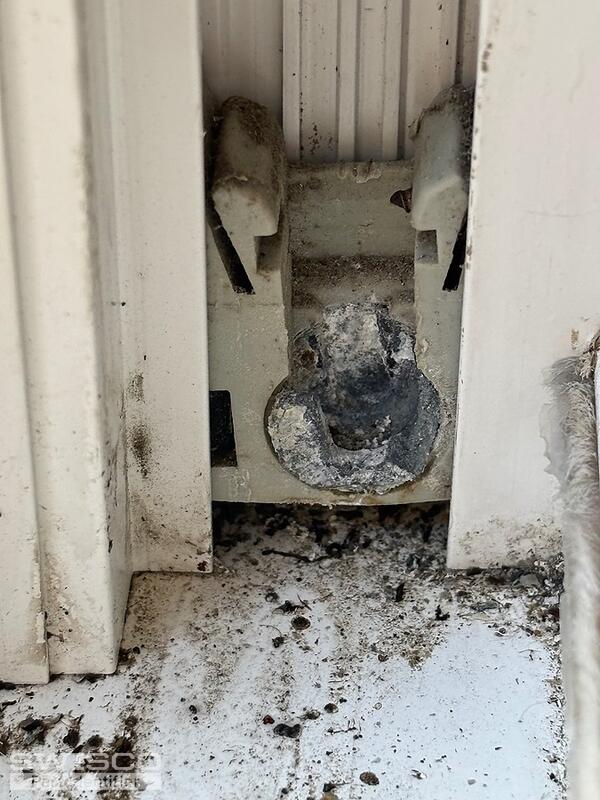

Thanks for reaching out to us! Your balance shoe can be replaced with our 15-177 Coil balance Shoe. To confirm that this is the correct replacement, carefully compare the dimensions below.

Alternate image for 15-177

The compatible balance for this shoe is the Series 152 Coil Balance secured to the shoe using the 33-072 screw. To determine exactly which coils are needed for your assembly, you'll need to look for any stamps/markings. If there aren't any, you'll need to obtain the exact weight of your sash and divide it by the total number of coils in the window; this will give your the number of pounds you will need for each coil.

If you are looking to replace the cover, you'll need the 15-143 Coil Bushing, the 15-144 Coil Bushing Cap, and the 15-145 Coil Support Barrel.

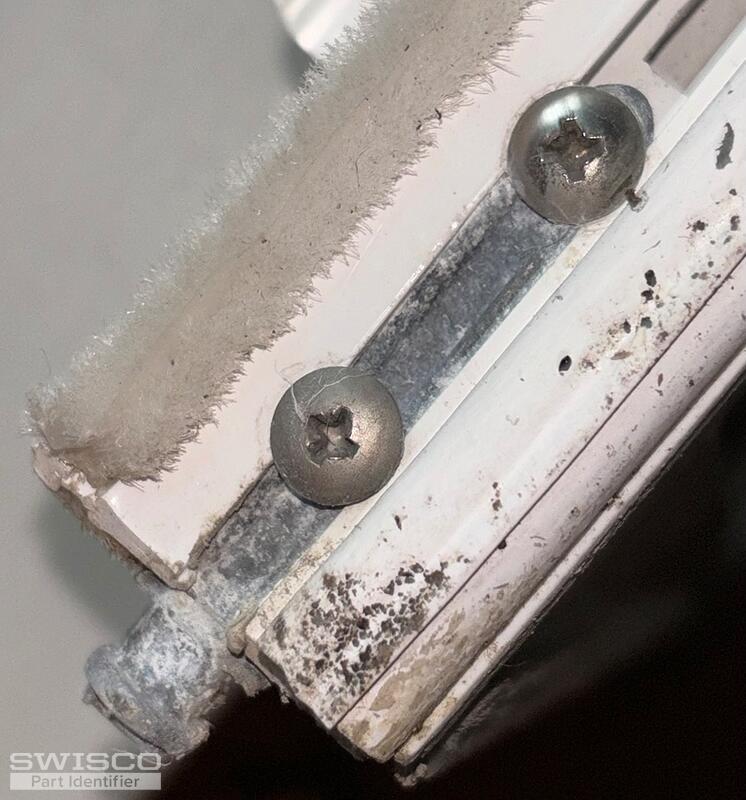

Your pivot bar reminds me of the 26-466 Pivot Bar. Take a look over the dimensions and compare them to confirm that this is the right fit.

Dimensions for 26-466

Dimensions and closer look at 26-466
