Hello,
Can you please help me identify which window balance guide this is on your site? I couldn?t seem to find it. This is for a single hung window that can tilt in.
Thank you for your help!
Tom

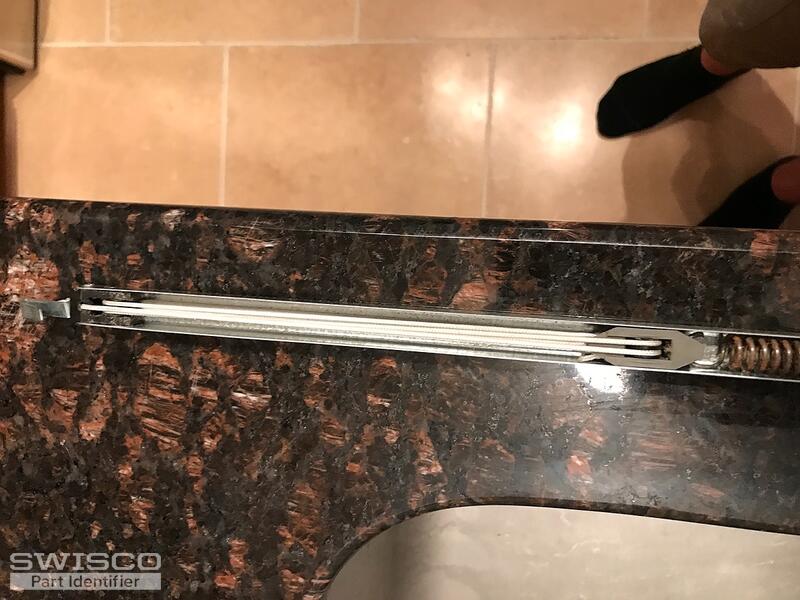

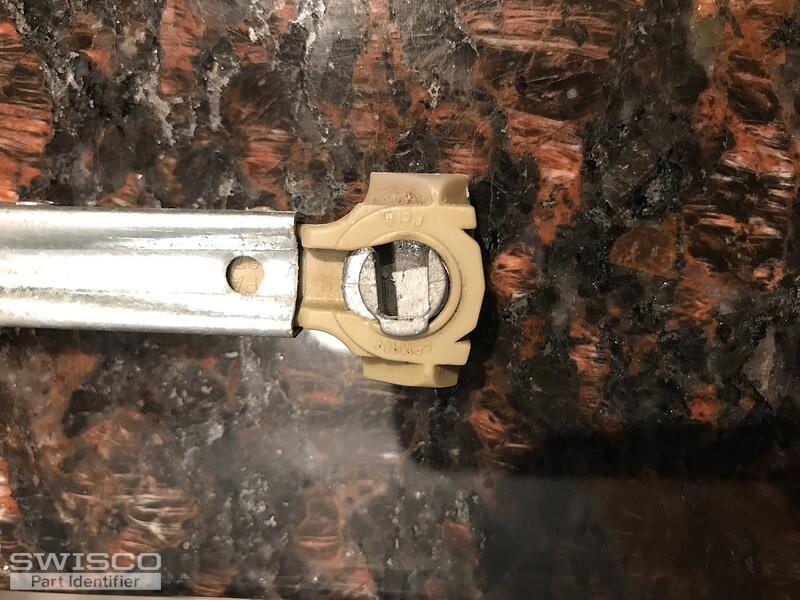

Balance bar guide/spring system
Home Owner from Waterford, MI
Aug 4, 2018 9:03 pm
5 user uploaded images
6 Replies
Tom from SWISCO
Aug 9, 2018 12:36 pm
Hey, Tom. We can replace this balance for you, but it might have to be specially made. Before we begin, can you tell me the length of the metal channel and the stamp printed on it? Can you also show me the slot in the window where that hook went? Finally, how many did you need?
Home Owner from Waterford, MI
Nov 4, 2018 4:27 pm
Length of the metal channel is 27 in. (maybe just an 1/8" over that)
The stamping is: 27B BSI

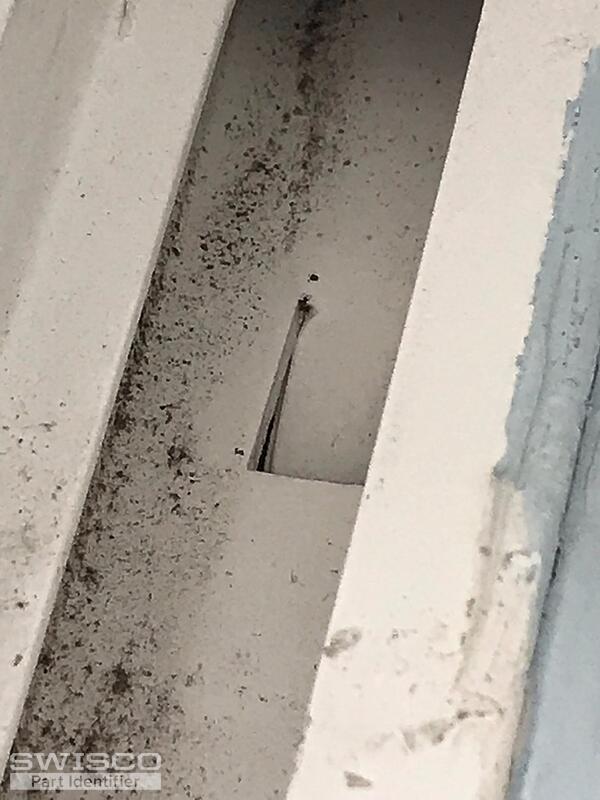

Here's a picture of where the hook latches onto the window sash. It's like an indent that the hook hooks into.
The stamping is: 27B BSI
Here's a picture of where the hook latches onto the window sash. It's like an indent that the hook hooks into.
1 user uploaded image
Tom from SWISCO
Nov 13, 2018 10:58 am
Thank you! This is just what we needed to see.
We can replace this balance, but it will have to be a special order. Basically, we will use our S795-27 but with the top screw tab swapped out for the 15-198 hook. That will allow you to install it in that slot. I just need to know how many you need. Once I know that, I'll email you an order link and price quote.
Home Owner from Waterford, MI
Nov 13, 2018 11:55 am
Thank you for the help. I need a quantity of 4.
Tom from SWISCO
Nov 14, 2018 1:18 pm
Perfect, I'll email that over right now.
