Balance coils

Start a new Discussion

Quick Learner from NYC

Mar 15, 2024 11:29 am

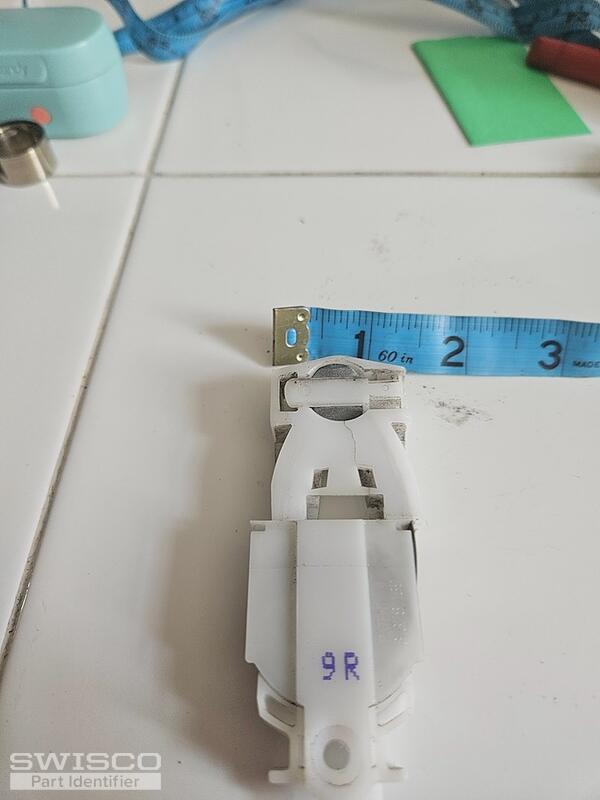

1 1/4" wide
Both marked 9R

Sash apx. 36" - 39"

4 user uploaded images

6 Replies

Jasmine from SWISCO

Mar 15, 2024 3:09 pm

Thanks for posting! I believe your coil assembly can be replaced with the Series 140 Quick-Tilt assembly. Since yours is stamped with a 9, you'll need the S140-9.

Be sure to carefully review and compare the dimensions below to confirm that this assembly will fit in your window track.

Alternate image for S140-9

Quick Learner from NYC

Mar 15, 2024 5:04 pm

Thank you. That's what I thought and had picked out. My only other question wld be regarding installation. Do they come with install instructions. I'm still unclear on where it need to be set and how the sash engages with it. I ha e no experience with coils.

Jasmine from SWISCO

Mar 18, 2024 9:25 am

I'm glad to hear that these are the right replacement for your coil balance assemblies.

I'm sorry to say that his hardware does not come with a set of installation instructions. We do have two tutorial videos below this thread that will show how to remove and install these assemblies. Take a look at them to see if they might help with completing your repairs.

Quick Learner from NYC

Mar 18, 2024 11:33 am

Thank you for your help.

Jasmine from SWISCO

Mar 18, 2024 1:07 pm

My pleasure! Please don't hesitate to reach out with any other hardware repair questions or future projects you might have.

Have a great day!
