Balance for Study

A home owner from Sacramento, CA says:
August 20, 2022

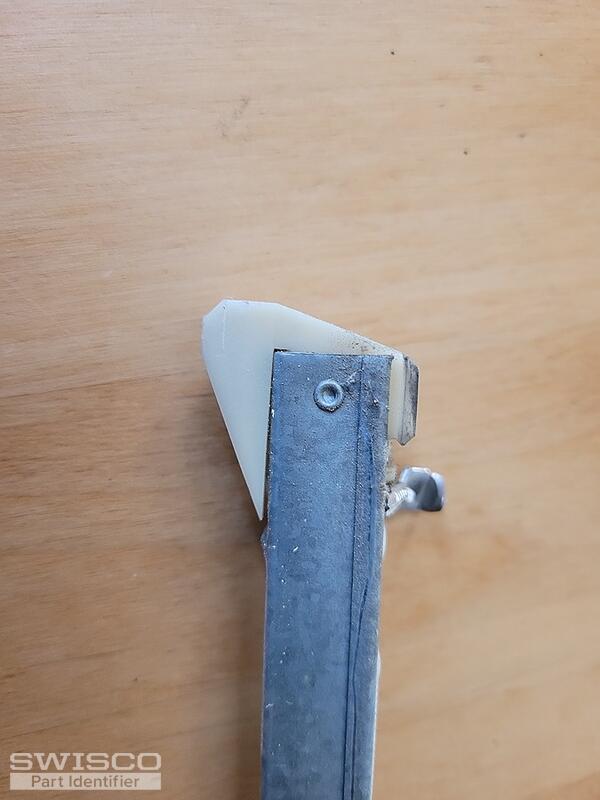

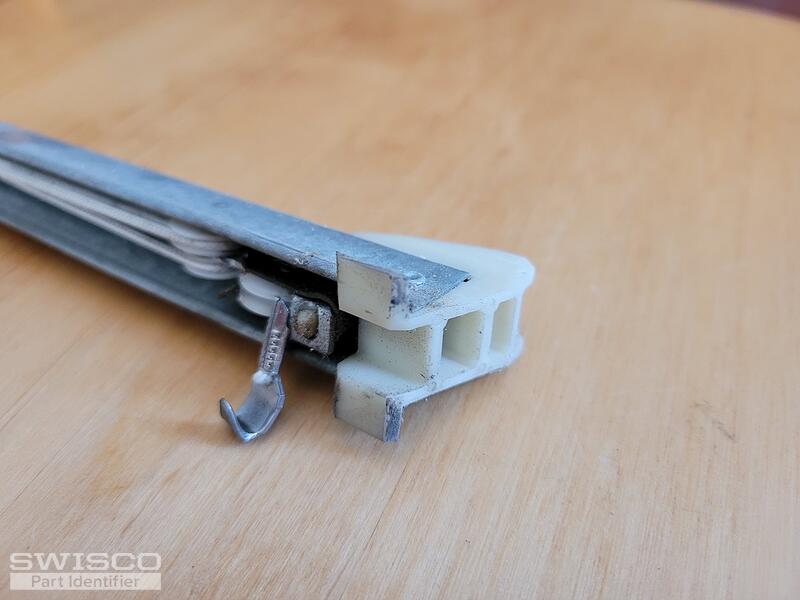

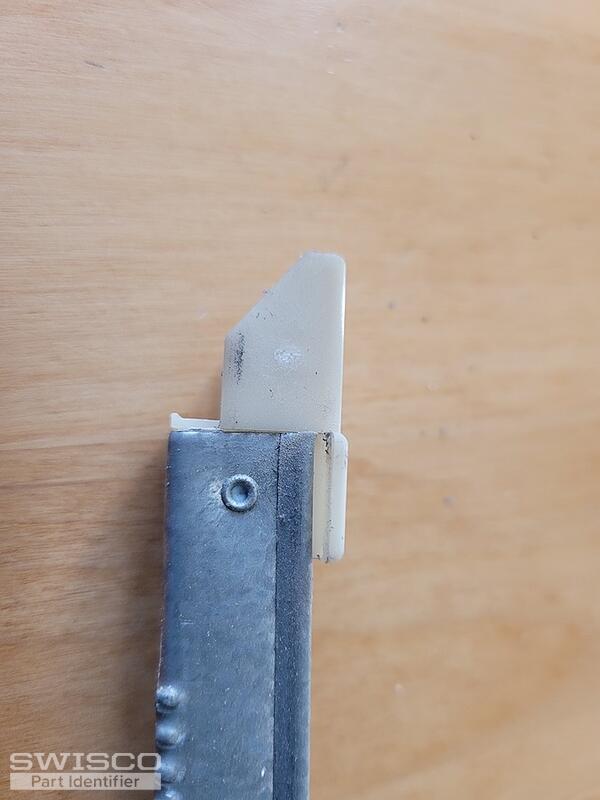

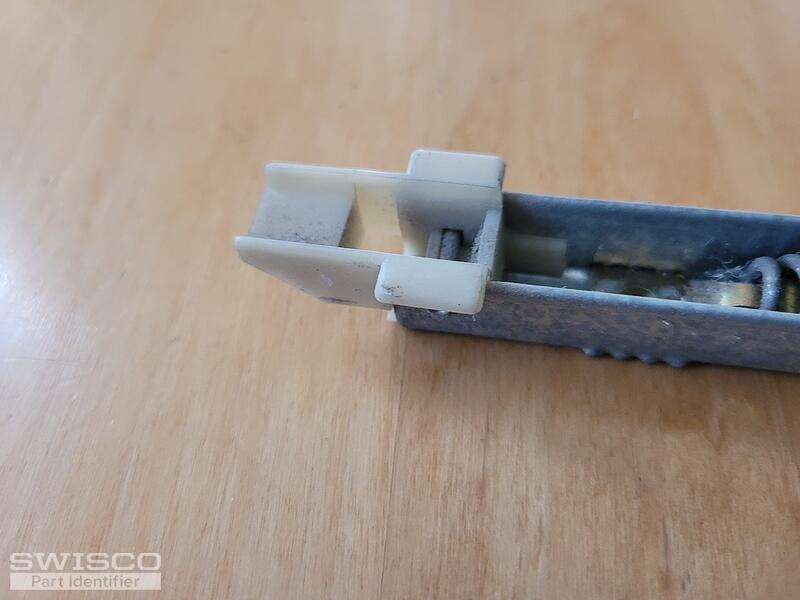

Please help with this part number and let me know if you need other pics, more information.

25 lbs, 30" ..... (9/16")

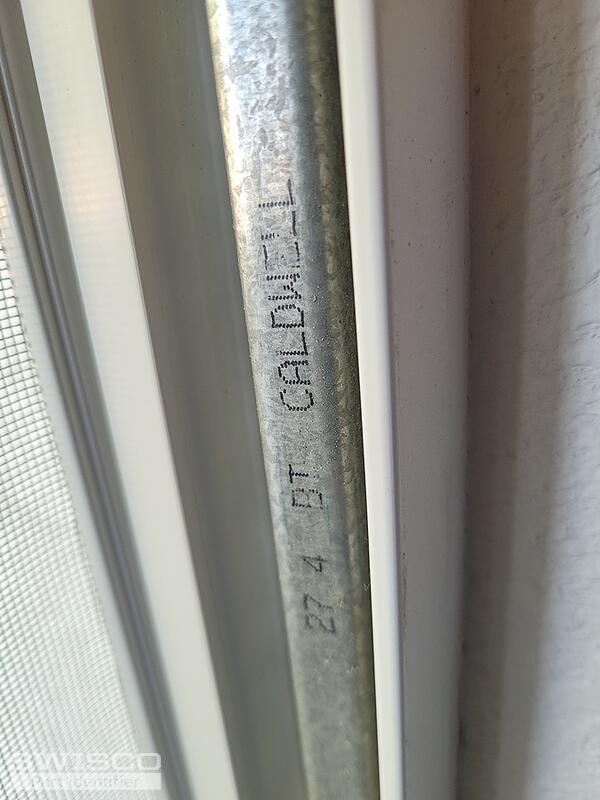

27 4 BT Caldwell

(A couple years back we replaced for another window in this home and they were S385-28 : 28" Series 385 Channel Balance).

Thank you

Patrick

Thumbnail of the uploaded file named 1_20220727_081618.jpg
Thumbnail of the uploaded file named 2_20220727_081801.jpg
Thumbnail of the uploaded file named 3_20220727_081811.jpg
Thumbnail of the uploaded file named 4_20220727_081847.jpg
Thumbnail of the uploaded file named 5_20220727_081853.jpg
Profile picture of Casey
Casey from SWISCO responded:
August 23, 2022

Hello,

For these balances, you could have either the S380-27 or S385-27 channel balance with a 2740 strength option. If another window uses the S385, this one will most likely use the same series but take a look at the photo below to confirm the correct replacement. Thanks for posting!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
28" Series 380 Channel Balance
28" Series 380 Channel Balance
S380-28
$10.97
28" Series 385 Channel Balance
28" Series 385 Channel Balance
S385-28
$10.97
