Balance, for double-hung, tilt, with spring and pulleys

Handy Person from Boone NC
Jun 21, 2022 2:35 pm

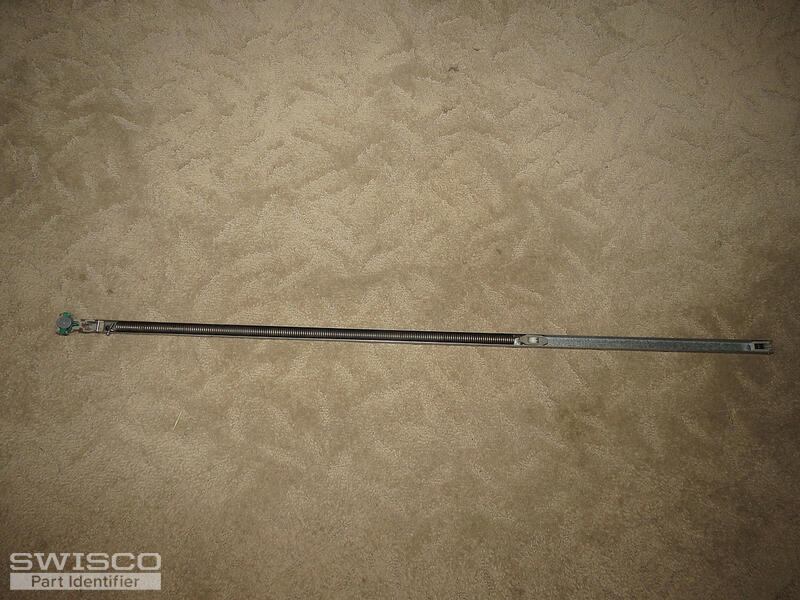

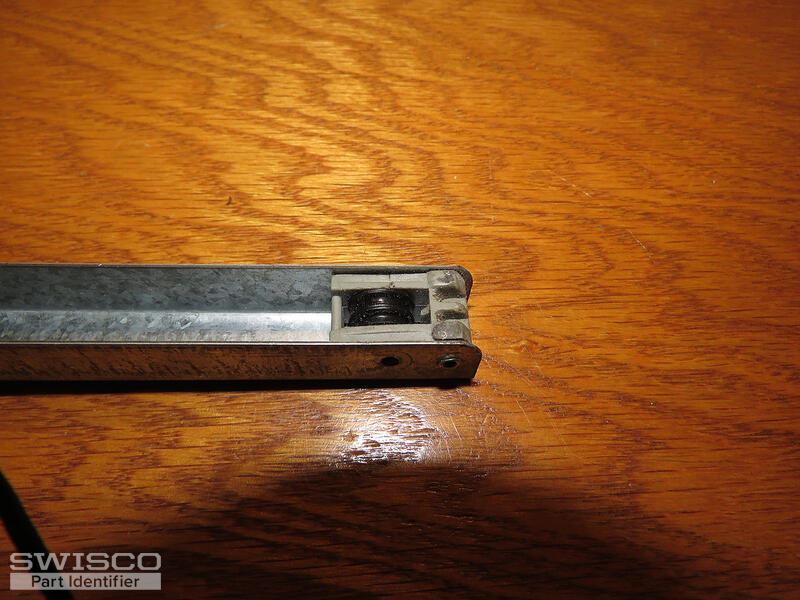

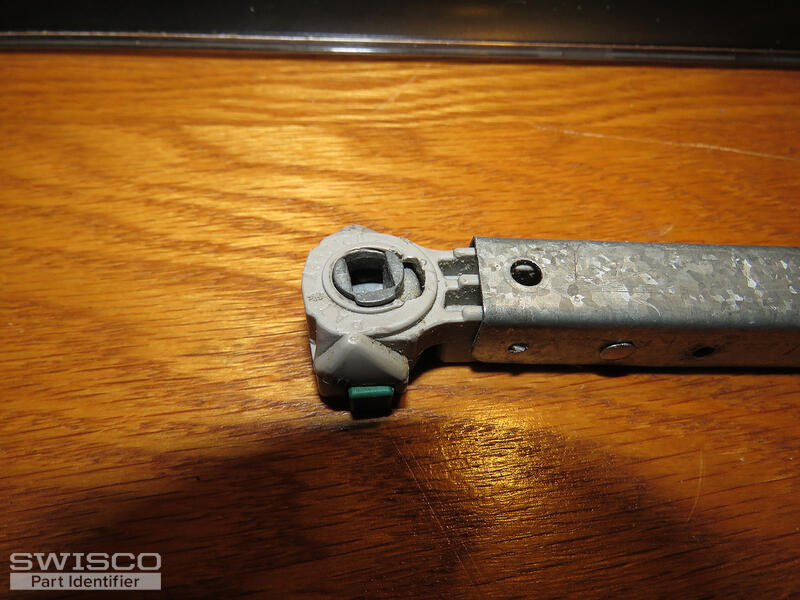

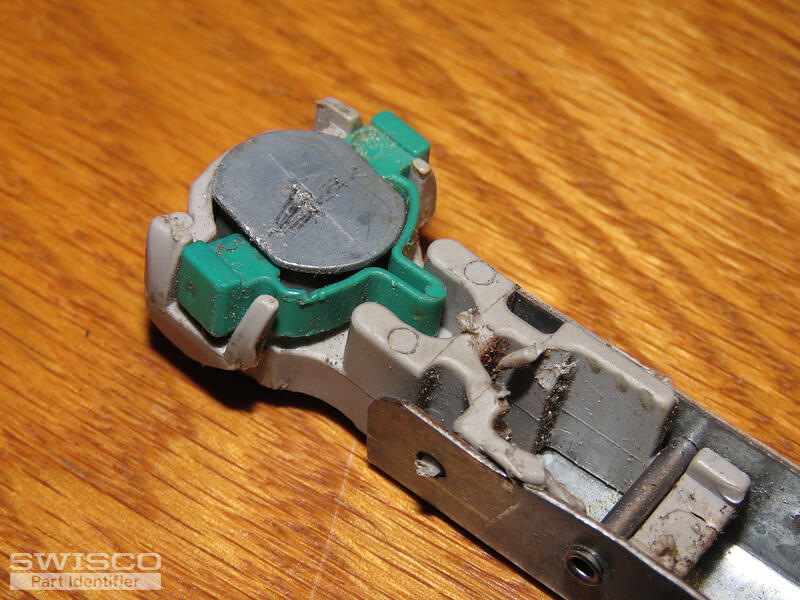

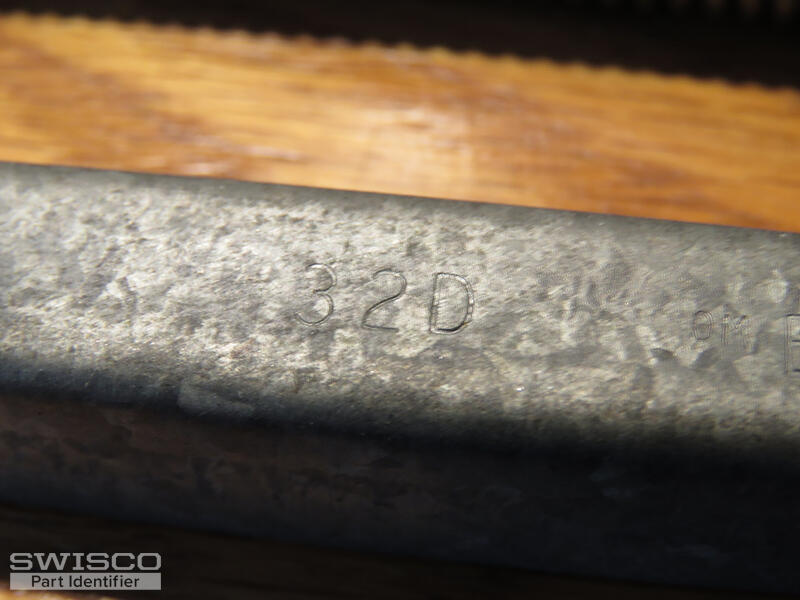

Balance for double hung tilt window. Channel 32 inches long by 5/8 inch deep by 1/2 inch wide. Channel marked "32D" as shown in photo. End hardware as shown in pictures
5 user uploaded images
2 Replies

Emily from SWISCO
Jun 23, 2022 1:42 pm


Hello!
Your balance appears to be a match for our S795-32 with the 32D strength option and 15-194 closed cam T-lock shoe (sold separately). One important detail to note is that the Series 795 attaches to the top of the track using a screw, not a hook. If yours needs a hook then let me know; we can still help but your balance will have to be custom made.
