Balance pivot shoe and pin

A handy person from Staten Island says:
May 25, 2022
Hi hope you can help me with this as you've done so many times in the past. This balance is 26" long. Serial number on it says 26D. The hook up top of the balance clicks into the jamb on the very top and this pivot shoe somehow is connected to the bottom of the balance. Pivot shoe is approximately 2". The pivot shoe approximately 2 1/2". Any assistance is greatly appreciated. Thank you.

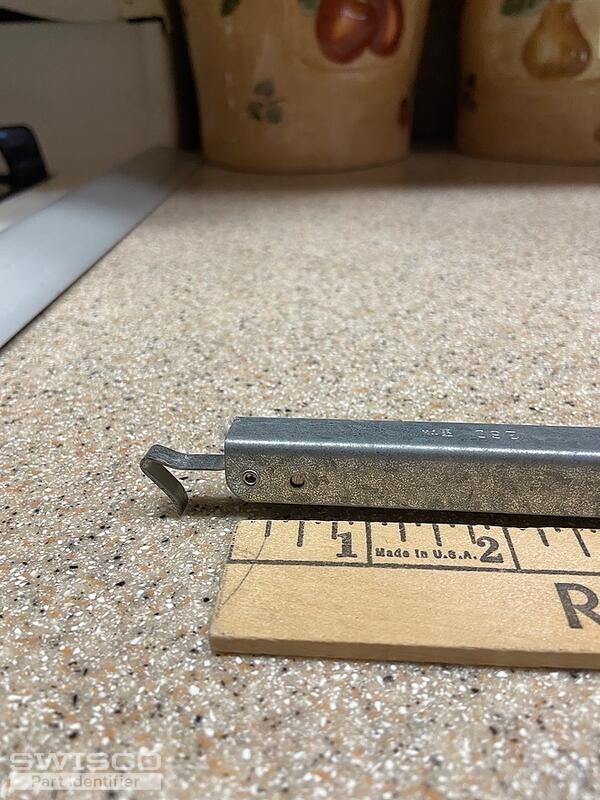

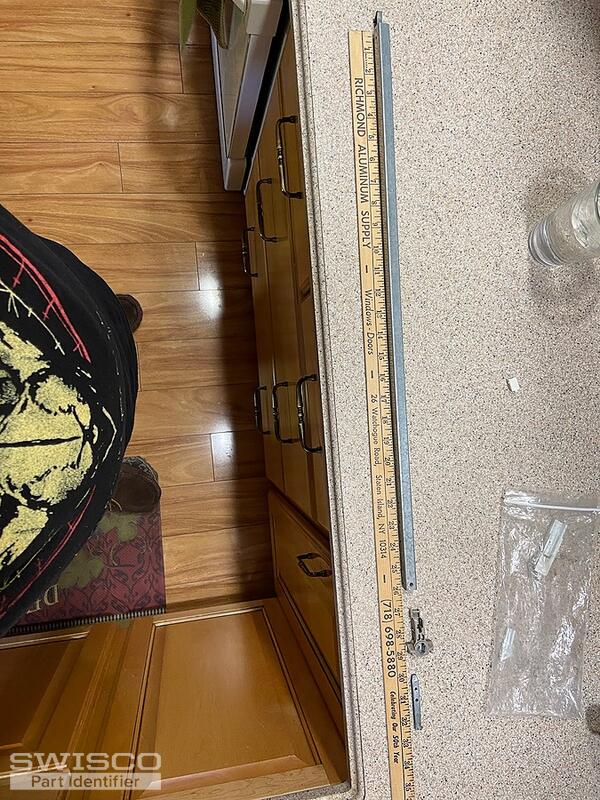

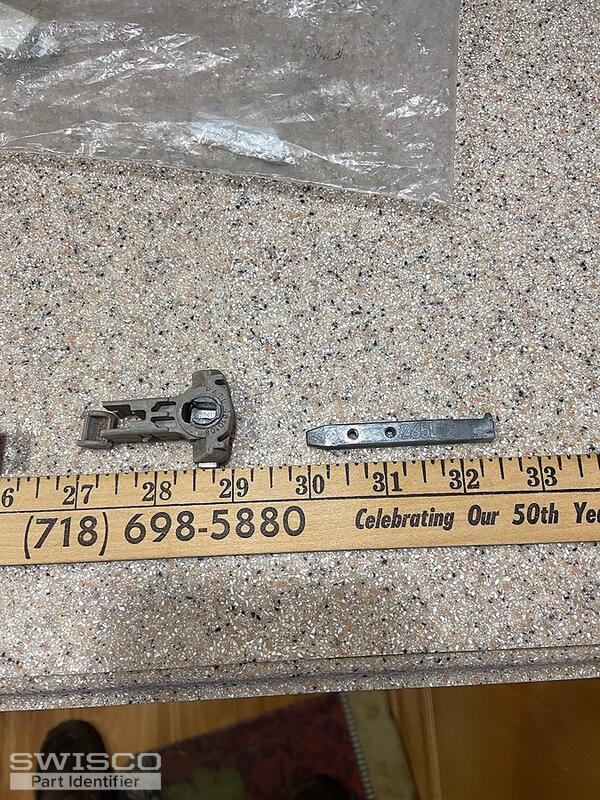

Thumbnail of the uploaded file named EC493B40-707D-4E3E-832A-6196051E6A43.jpeg
Thumbnail of the uploaded file named CC6F0CF5-20F4-4DCA-900C-CA14F076E2DF.jpeg
Thumbnail of the uploaded file named 1E86C8B1-B2F2-42E0-B57A-8682826570B9.jpeg
Profile picture of Emily
Emily from SWISCO responded:
May 27, 2022

Hi there!

It looks like you have our S795-26 channel balance with the 26D stamp option and 15-198 hook attached on top rather than a screw clip. This configuration isn't a stock option of ours so this will have to be a custom order. I'm going to email you a purchase link and price quote for 2 balances that you can use to place an order on our site. If you'd like to change the quantity, let me know and I'd be happy to do that for you!

As for the pivot bar, compare your dimensions to our 26-021 to see if this matches up.
A handy person from Staten Island says:
May 27, 2022
Thank you Emily. Received two emails and didn't see this one until after I read the other one. I also need the pivot shoes for those balances. Any suggestions ?
Profile picture of Emily
Emily from SWISCO responded:
May 31, 2022

These custom balances will come with the 15-195 closed cam T-lock shoe attached which I believe is what you have but you'll want to compare our dimensions with your old shoe to confirm this matches what you need.
Balance Clip Attachment
Balance Clip Attachment
15-198
$0.70
26" Series 795 Channel Balance
26" Series 795 Channel Balance
S795-26
$13.45
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-021
$1.97
1-1/4" T-Lock Balance Shoe, Closed Cam
1-1/4" T-Lock Balance Shoe, Closed Cam
15-195
$1.92
