Balance replacement

Start a new Discussion

Home Owner from Illinois

May 31, 2026 6:01 pm

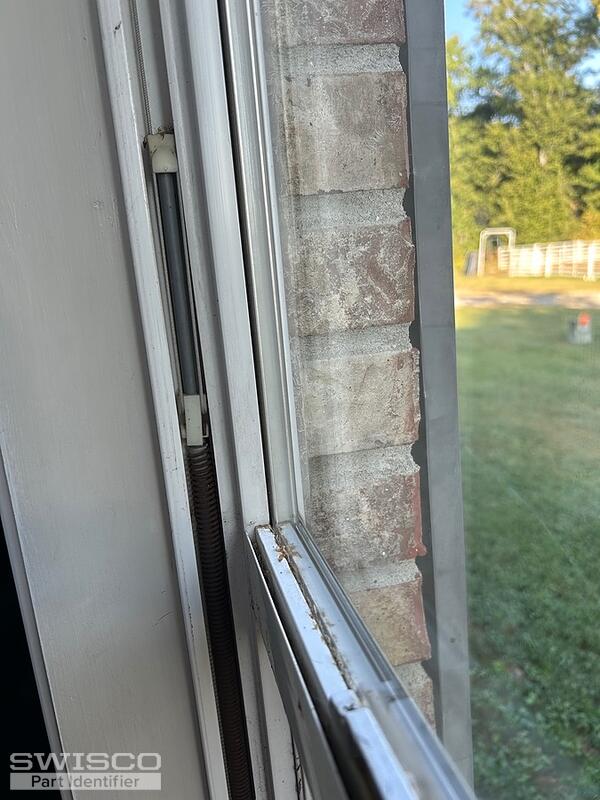

Window weighs 18.4lbs. The foot is about 1 inch at its widest and a 1/2 inch thick and rides inside the track

4 user uploaded images

4 Replies

Bob from SWISCO

Jun 1, 2026 12:28 am

Hey there. These old crossbow balances are no longer made, but it can be replaced by one of our tilt window channel balances. To know which, please measure the diameter of the spring. That will narrow it down.

Home Owner from Illinois

Jun 1, 2026 6:04 pm

Hi Bob
The diameter of the spring is 1/2 inch. One of your series 795 fits in the channel but the foot (part that attaches th the window) will not fit into the channel
Thanks
Ron

Bob from SWISCO

Jun 2, 2026 3:48 pm

You probably need the 15-194 1" T-Lock Shoe, along with the Series 795. The video below explains.
