Balance resembles S795

A home owner from Tenn says:
August 3, 2020
Plain Channel measures 33"
vinyl window 33 wide x 35 1/2 high
Window weight 27-30 Pounds

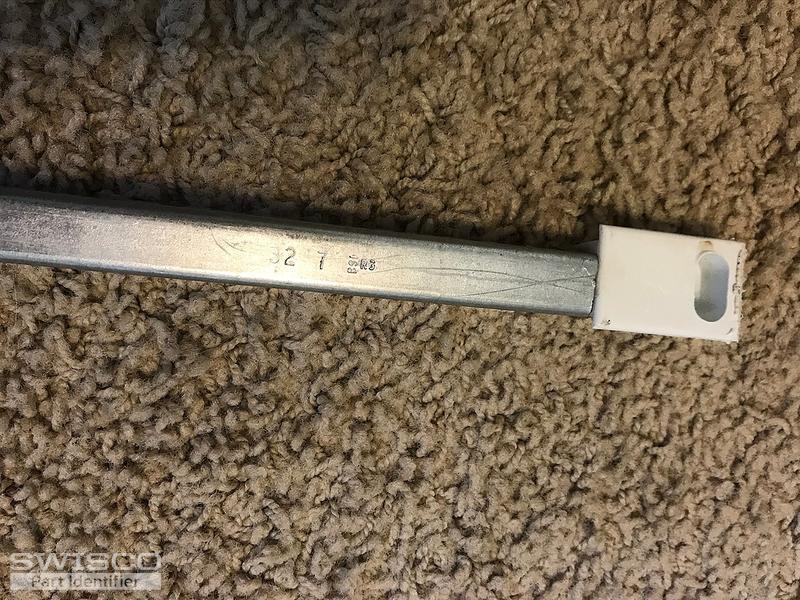

channel stamping 32-7 see photo
Resembles S795
Shoe width 1.25"
Open cam
need one only
regards.
George

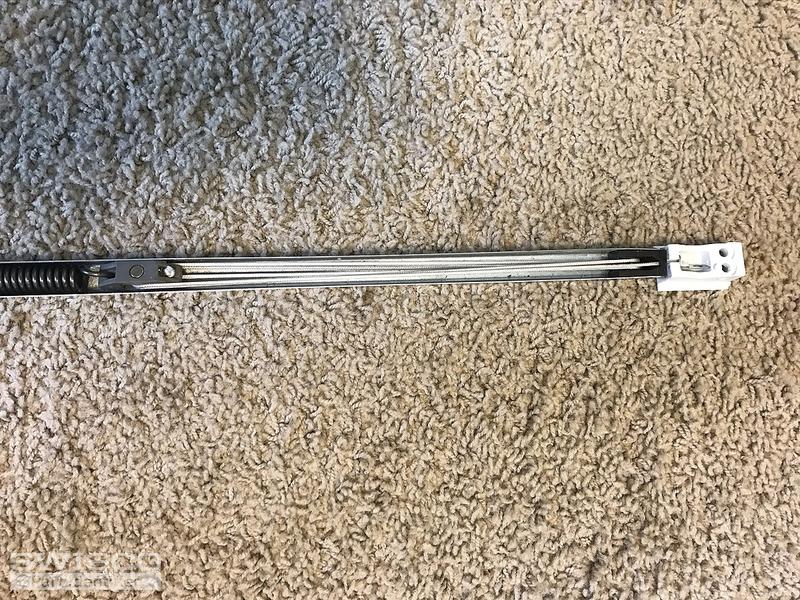

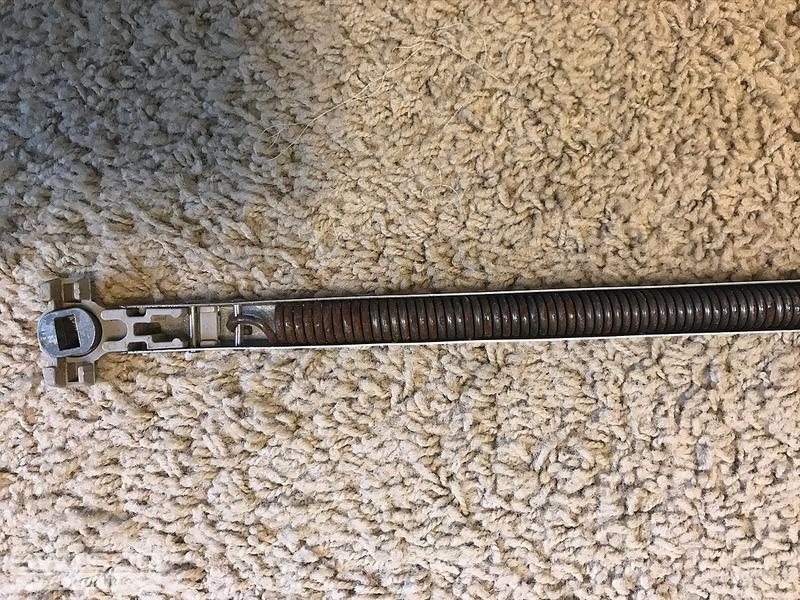

Thumbnail of the uploaded file named IMG_4439.JPEG
Thumbnail of the uploaded file named IMG_4437.JPEG
Thumbnail of the uploaded file named IMG_4438.JPEG
Thumbnail of the uploaded file named IMG_4442.jpeg
Profile picture of Bob
Bob from SWISCO responded:
August 6, 2020

Hi George. Looks like you might need a S795-33 with the 15-195B shoe, sold separately. The video below shows how to swap this shoe with the one that comes installed by default with this balance (the 15-195). It's a really simple process.

For the stamp option, your old code of 32-7 is a bit unusual. I'd confirm the exact weight of the sash; but if it does indeed weigh between 27 and 30 lbs, no more or no less, than a stamp option of 30D will work for you. This option supports a window sash in the weight range of 25 through 30 lbs.

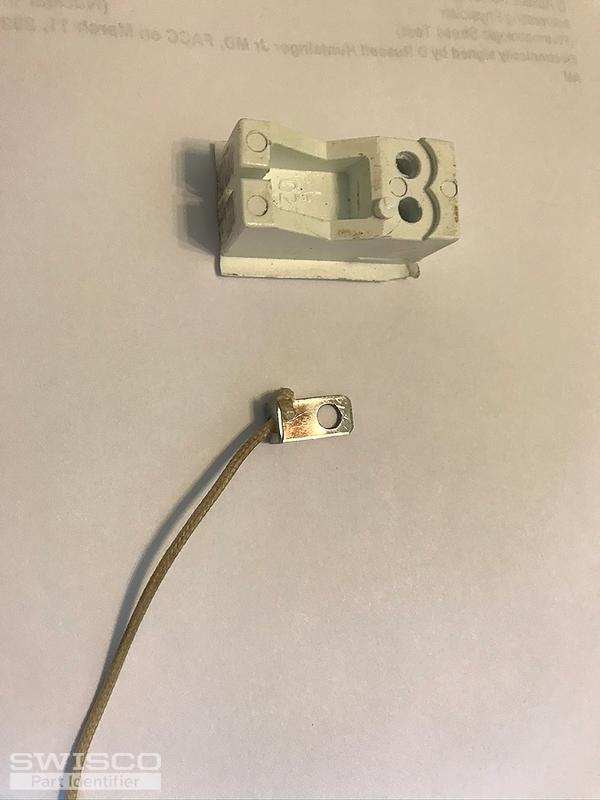

I am afraid we don't sell that top support piece. You would need to reuse your old one. Let me know if you have any other questions.
