Balance single hung

Hello,

We can supply your balances, but it would need to be a custom order. We'll be using the S770-25 channel balances with the 62-105 pulley hook attached. To get started, we'll need to know the weight of your sash to confirm the strength options for your replacement balances. Please also confirm if the top of your balance installs with a screw or an S-clip attached to a rivet.

Alternate image for 62-105

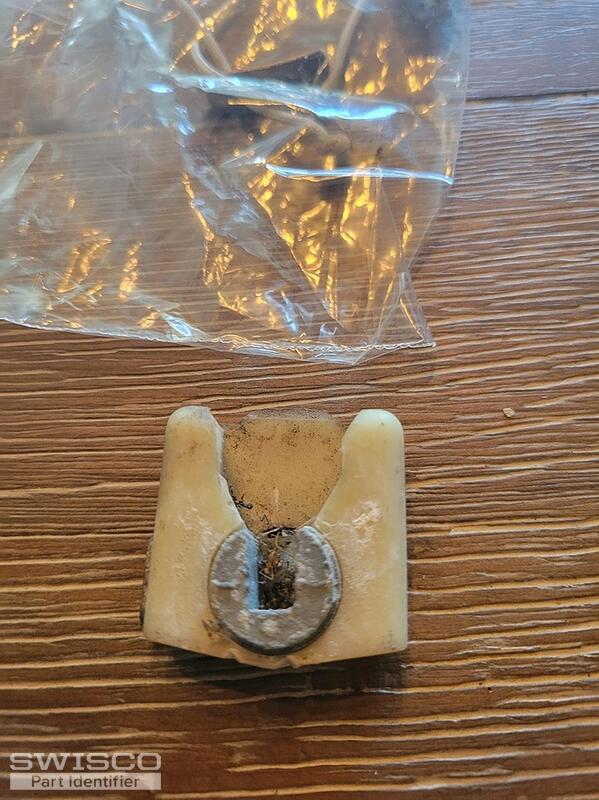

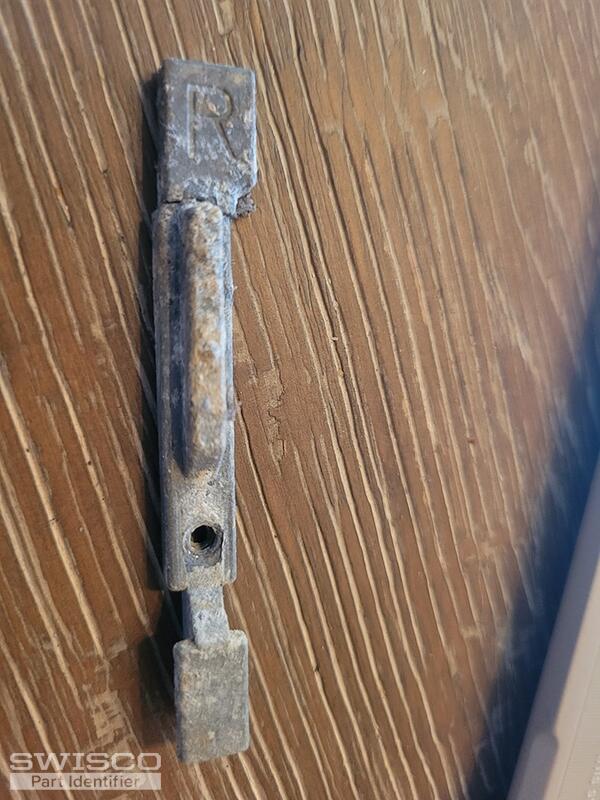

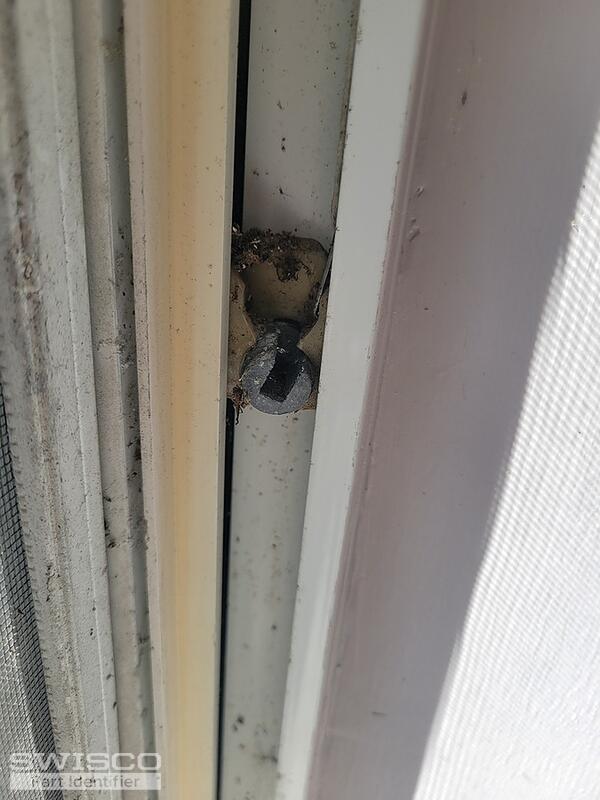

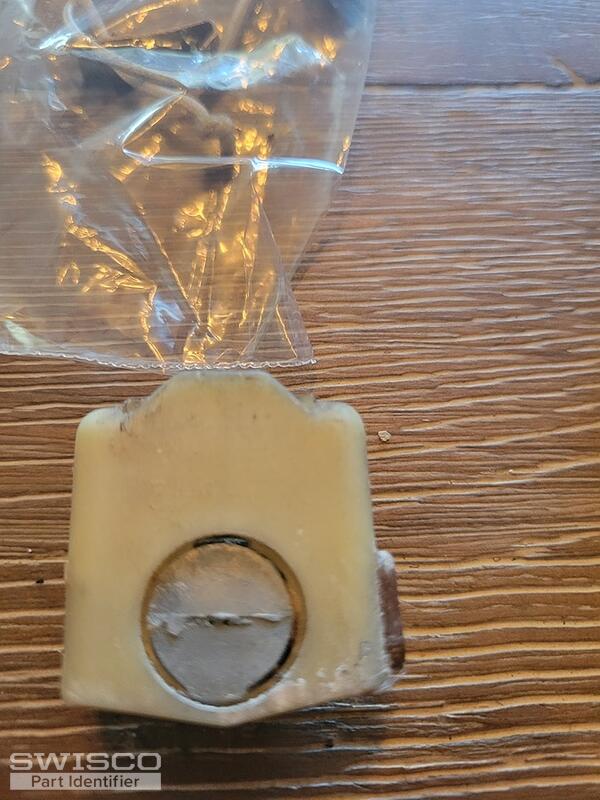

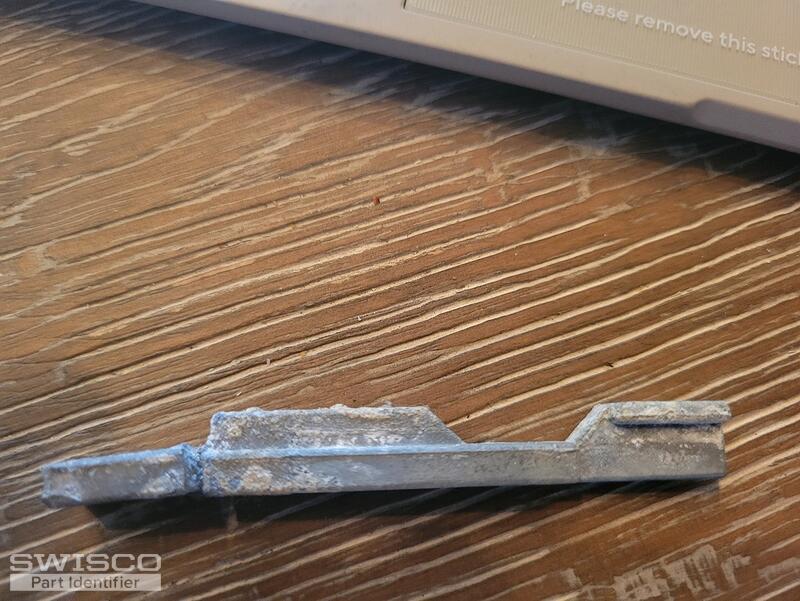

As for these other parts, the pivot shoe resembles our 15-105. The pivot bar is unfortunately discontinued. We don't have an exact match, but we were able to successfully use the 26-042 pivot bar with the 15-105 cam. Review the specifications below and see what you think. Thank you!

Open position 15-105

Alternate view of 15-105

View of 15-105 in the Closed Position

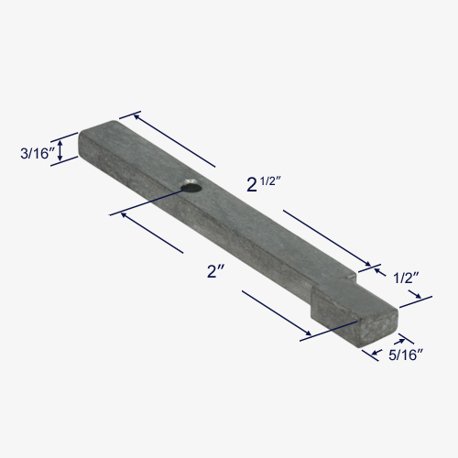

Alternate image for 26-042
