Balance spring identification

Quick Learner from Webb city mo

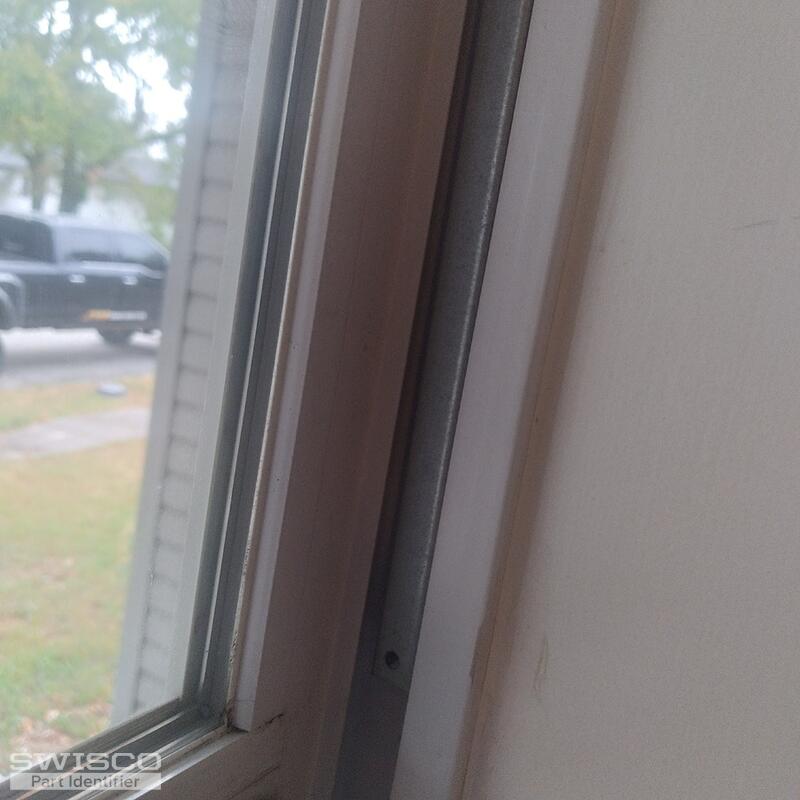

Please help identifying these balance spring components.
4 user uploaded images
2 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

It appears that your window uses the Series 795 channel balance. To further review, we will need to know the length and the number/letter stamped on the metal channel.

The Series 795 channel balance installs with a screw tab at the top, if yours uses a hook instead, please let me know as this configuration will require a custom order to assemble for you.

For the T-lock shoe, please confirm the width is 1-1/4" and if it has a closed or open(see through) metal cam style. The T-lock shoe can be removed from the window channel by pulling the stem forward and twisting it out.

Once we have these details confirmed we can confirm the correct specifications for your window. Thank you!
