Balance spring replacement

Home Owner from Tennessee
May 1, 2024 8:56 pm

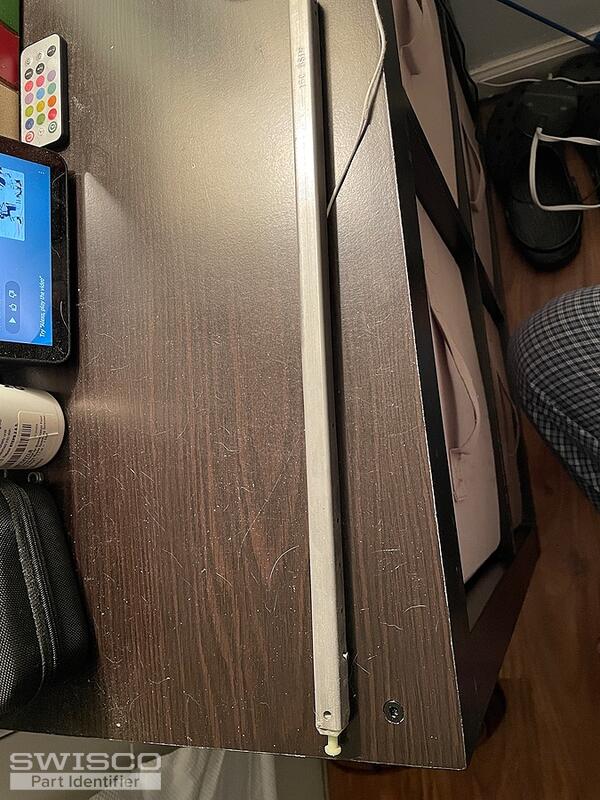

I believe these are Atrium windows from around 2010. Both balancers' cord broke. They are 16" long with 16C BSI marked on one side. I don't find a balance that mounts with a "peg" like these do. Hopefully you can help. Thanks
897C6A4F-B42C-4471-99DD-A9E1A7BEE884 F0796161-C8CA-4579-BACB-9A082964828A 63FFCF52-CE7E-4509-B12D-EB1808469685 963DD57E-F97F-416F-A504-7FF1FB1F54B6
4 user uploaded images
5 Replies
Tom
Tom from SWISCO
May 2, 2024 12:00 pm
SWISCO
EXPERT

Hello! I'm very confident that we can supply this balance, but before I recommend anything I'd like to see a picture of the metal clip at the end of the cord. Yours appears to have snapped off, but it is a very important detail. Once I see that, I'll be able to make a suggestion.

Home Owner from Tennessee
May 2, 2024 5:38 pm
Please let me know if I can supply anything else. Thanks!
Tom
Tom from SWISCO
May 3, 2024 10:49 am
SWISCO
EXPERT

Sure, I'll just need to see a picture of the metal clip at the end of the cord. As mentioned, yours appears to have snapped off, but it is a very important detail for identifying the the best possible replacement.

Are you able to provide a photo of this clip?

Home Owner from Tennessee
May 3, 2024 11:05 am
Sorry! I thought I attached them on the last message.

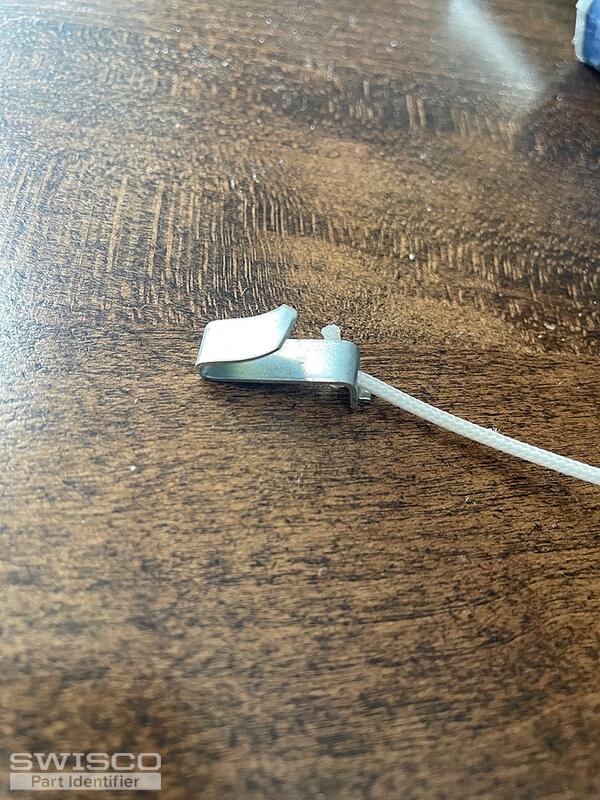

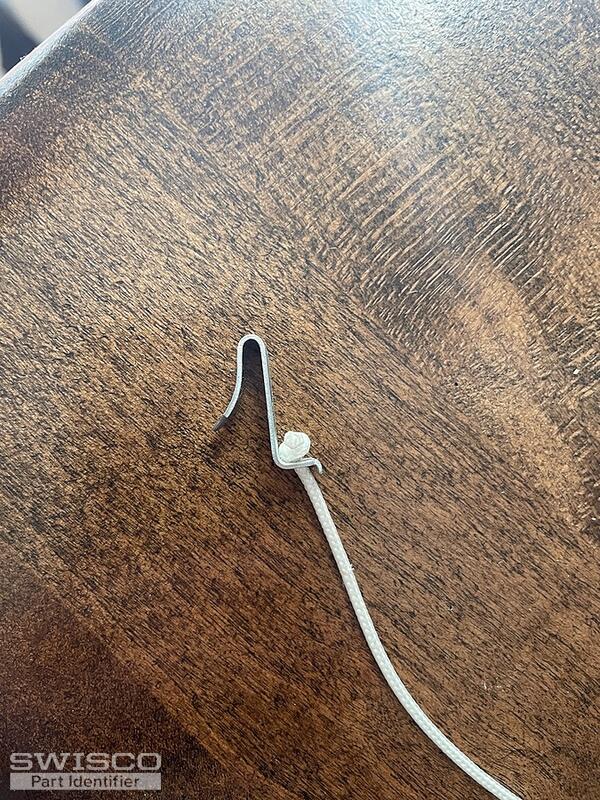

IMG_5192 IMG_5193
2 user uploaded images
Tom
Tom from SWISCO
May 3, 2024 2:14 pm
SWISCO
EXPERT

No worries! Your balance is a custom assembly, made with a 15-224 Inverted Link and a 15-198 Balance Clip Attachment. I've forwarded a link with a quote for (2) of these custom assemblies; there is an order minimum of (2) for custom assemblies.

If you would like a larger quantity of balances please let me know and I'll be happy to update the quote for you.

You'll be able to use the provided link to review the quote and place the order from your online cart.

Feel free to reach out with any questions.
