Balance springs for tilt windows

Home Owner from Florida

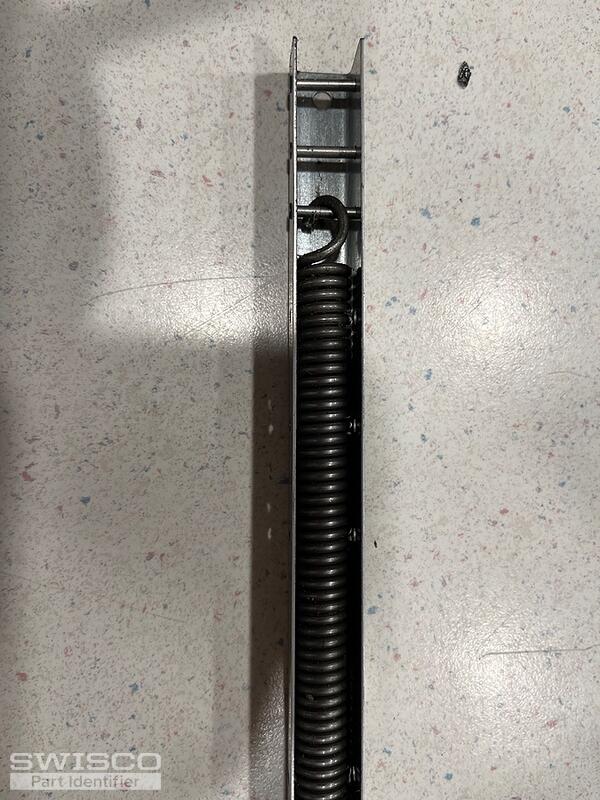

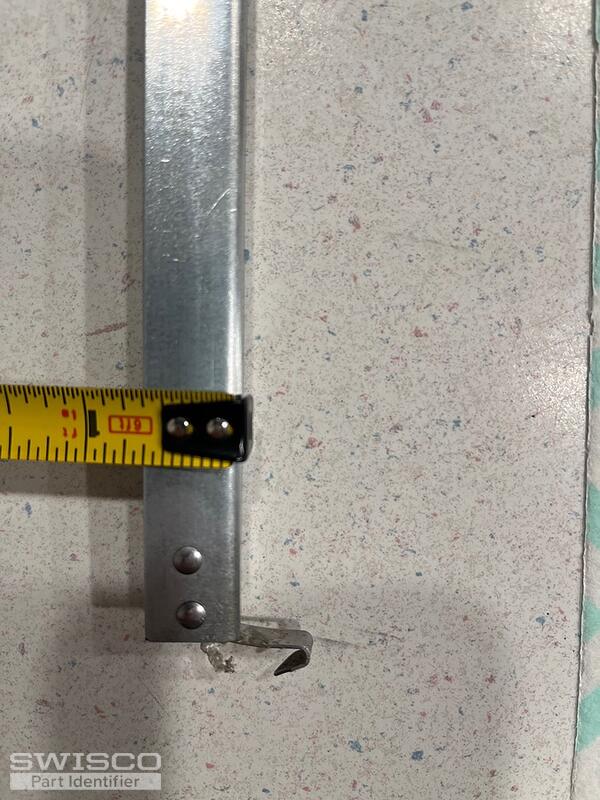

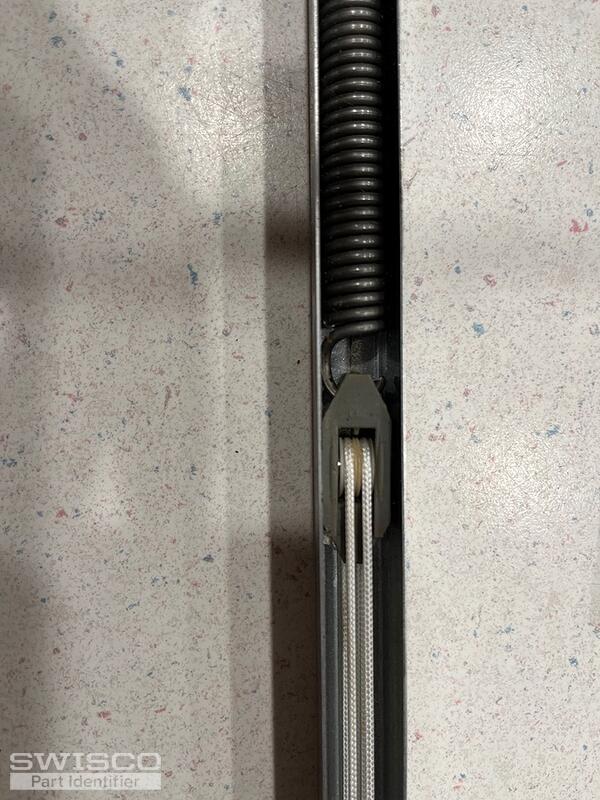

Hi. Do you have anything matching the 29" 2840 assembly in the attached photo's?
5 user uploaded images
6 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for your post! There is a strong likelihood we have a replacement match for this window balance. Although, I will need to see a photo of the other end of the balance to determine the correct match.

I'll also need to see any other hardware that could possibly be left behind in the window channel.

Please let me know if you have any additional questions!

Home Owner from Florida
Thanks. I have attached a photo of the top end of the channel. The only other piece of hardware is the pivot shoe assembly. I have already added a couple of these (15-105 from your website) to my cart.
1 user uploaded image
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Sure thing! It sounds like you'll need the S770-29 Channel Balance with a 62-105 Heavy Duty Pointed Hook attached to the bottom. We'll also need to add a rivet to the top of them. These will need to be a custom assembly since they are not a standard item in our inventory.

To finalize the quote, I'd just like to confirm the sash weight. Our 29D stamp will support a sash weighing between 23 to 28lbs.

Please feel free to reach out with any questions you might have.

Home Owner from Florida
Thanks. The weight of the window sash is 26 pounds.
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for confirming! I've forwarded the quote to your email. Please let me know if there is anything else I might be able to assist with.
