Balance that moves window up n down

A quick learner from Woodbury New Jersey says:
Hi we are looking for the balance I think it's called the metal That allows the winter clothes up and down
Thumbnail of the uploaded file named 29823933-C7F0-4A65-9139-1A3B4717F959.jpeg
Thumbnail of the uploaded file named 792996A0-5EDE-49CF-AD3C-33D36F0DDC14.jpeg
Thumbnail of the uploaded file named 5EA64EA9-05DB-44F2-BED9-FF302138137C.jpeg
Thumbnail of the uploaded file named 2E321D7F-EB8D-4EA2-AF8A-7CF4500E0B07.jpeg
Profile picture of Tom
Tom from SWISCO responded:

I'm not sure it's called that, necessarily, but these parts are called balances. In order to identify what you have, I'll need you to remove it from the window and show me a picture of it by itself. I need to see the top end, bottom end, stamp, and whatever clip or hook is at the end of the cord.

A quick learner from Woodbury New Jersey says:
Hi Here are the pictures that I was able to get thank you so much

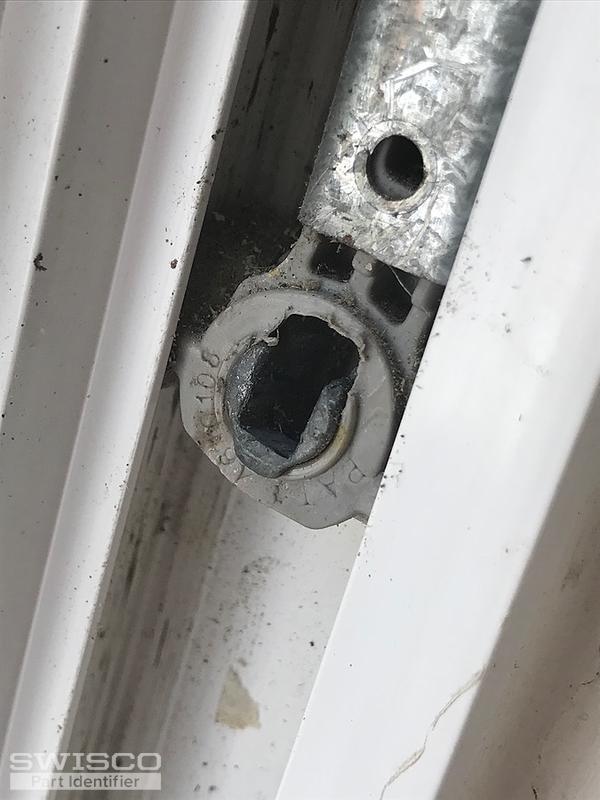

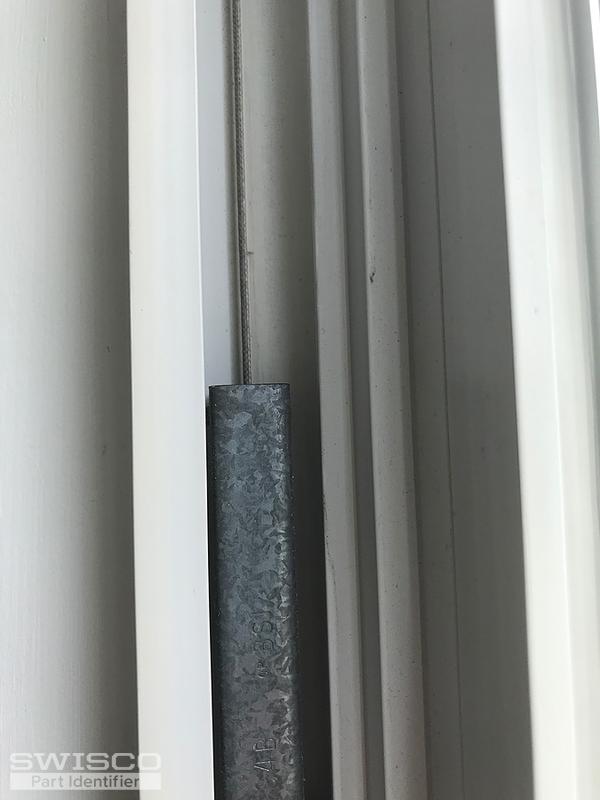

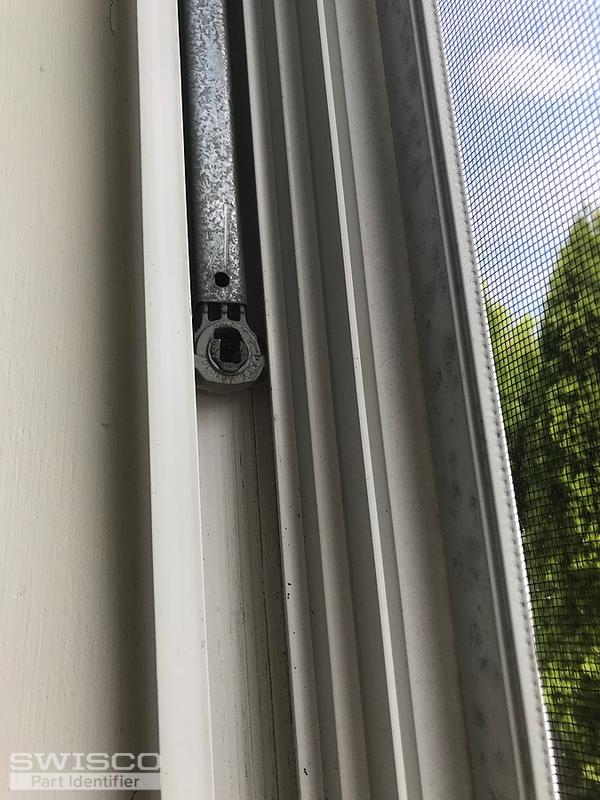

Thumbnail of the uploaded file named 3399067A-CD49-4603-B64A-3EA074A1C1FB.jpeg
Thumbnail of the uploaded file named 313EB6F6-2700-4D40-AE77-F1AE29EAA1D8.jpeg

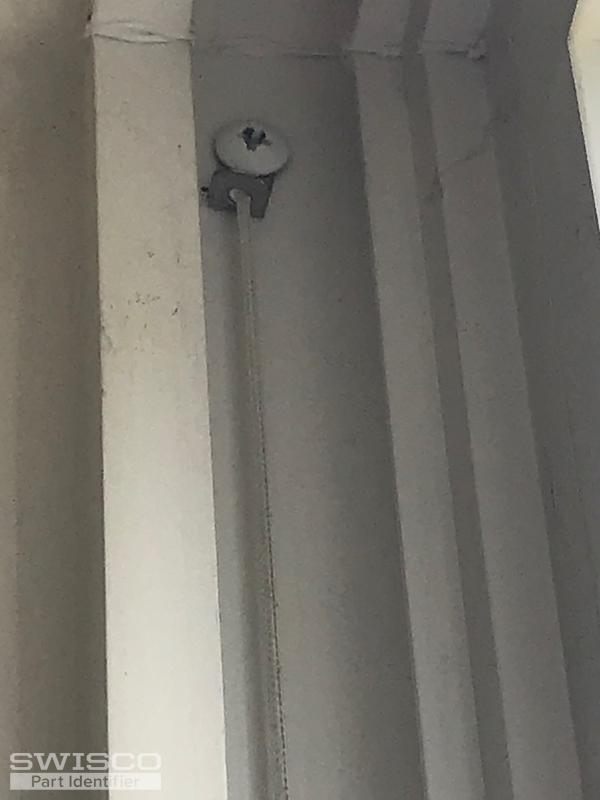

Thumbnail of the uploaded file named 927F0365-F3A8-45D0-A1F4-9A1173C5A669.jpeg
Thumbnail of the uploaded file named 7D73147C-7189-4428-9A08-F6C991663E16.jpeg

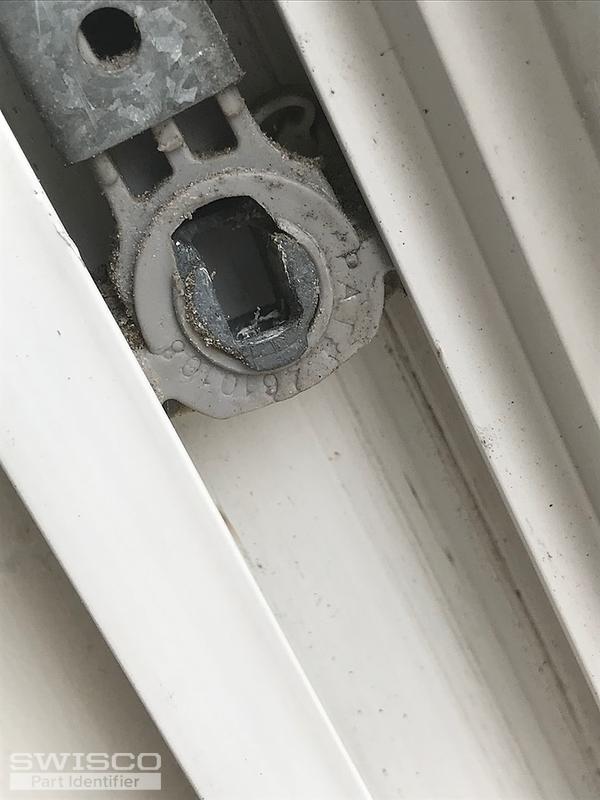

Thumbnail of the uploaded file named 87C4AACD-2BDE-4F04-8220-41AF6DC8CC06.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thanks, these pictures are perfect. I recommend our Series 795 channel balance. I am confident that this will replace your old parts.

A quick learner from Deptford nj says:
Hello, I was wondering how I go about purchasing them looks like they are 35"
A quick learner from Deptford nj says:
Maybe 34"
Profile picture of Tom
Tom from SWISCO responded:

All orders can be placed directly on our site at your convenience. You should measure your metal channel to confirm the right length, though.

A quick learner from Deptford nj says:
OK great I will remeasure! Can you tell me Is it difficult to put on? Does it have directions when I buy it
Profile picture of Tom
Tom from SWISCO responded:

These don't come with instructions, but they're very, very easy to install. You just put the shoe in sideways first, so it'll fit in the track, twist it so it's oriented properly (stamp facing inside the house), then tilt it up and screw it in at the top.

A quick learner from Deptford nj says:

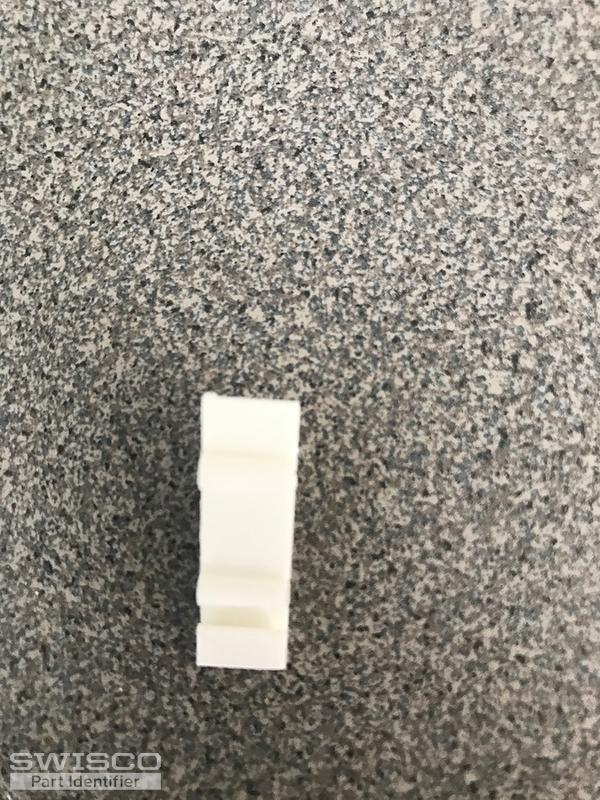

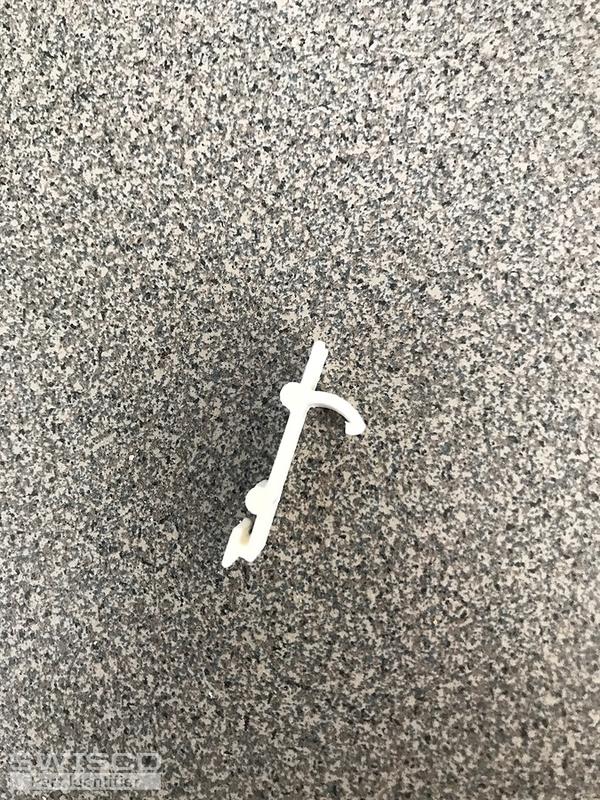

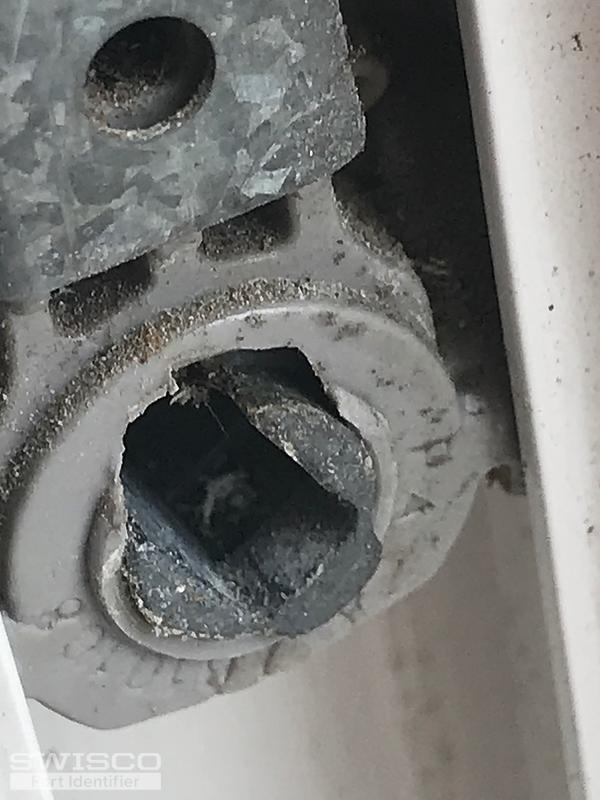

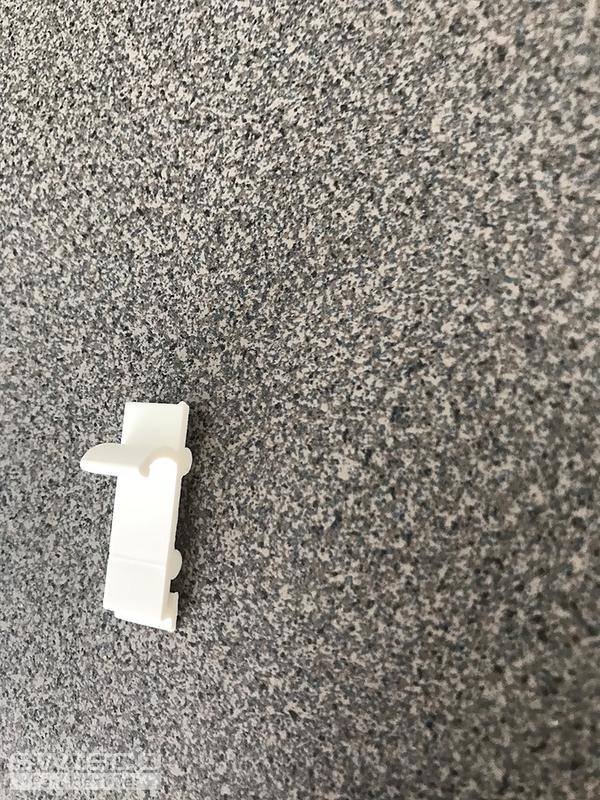

Hello I have another part I need they are the clips that hold the screens Pics attached
Also, the balancers I have a part number I am not sure you can use it

CB 1050-34b-7003+535 balancer
Thank you
Frank
Thumbnail of the uploaded file named 10867D78-04CE-4912-BC71-422FE6CBC365.jpeg
Thumbnail of the uploaded file named 93F2E461-0FDA-4919-913E-D5D3554AA0C7.jpeg
Thumbnail of the uploaded file named 7B335E1F-4756-482F-8F50-5F19F4623DF6.jpeg

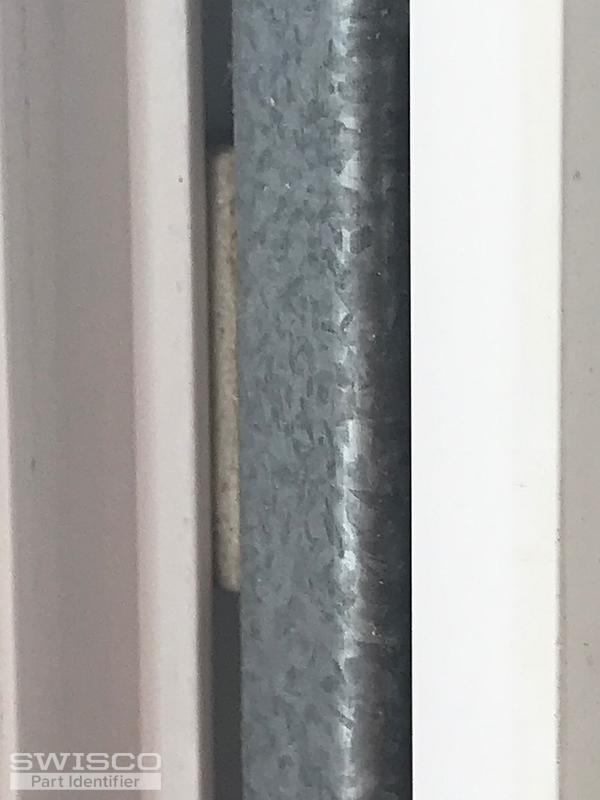

Thumbnail of the uploaded file named 4E0E8817-DCA4-44C1-9690-DEF533EB7A56.jpeg
Thumbnail of the uploaded file named 03B2EBFB-84C2-4929-BB93-34CDD5AD33B3.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Hello again, Frank. That screen clip looks like our 70-123 and the balance still looks like our Series 795. The stamp printed on the metal channel isn't a product code, it only indicates the calibration of the spring.

A quick learner from Deptford nj says:
Thank you so much for the help! Stay safe!
