Balance with hook and inverted link

Quick Learner from Illinois
Jun 12, 2024 10:27 am

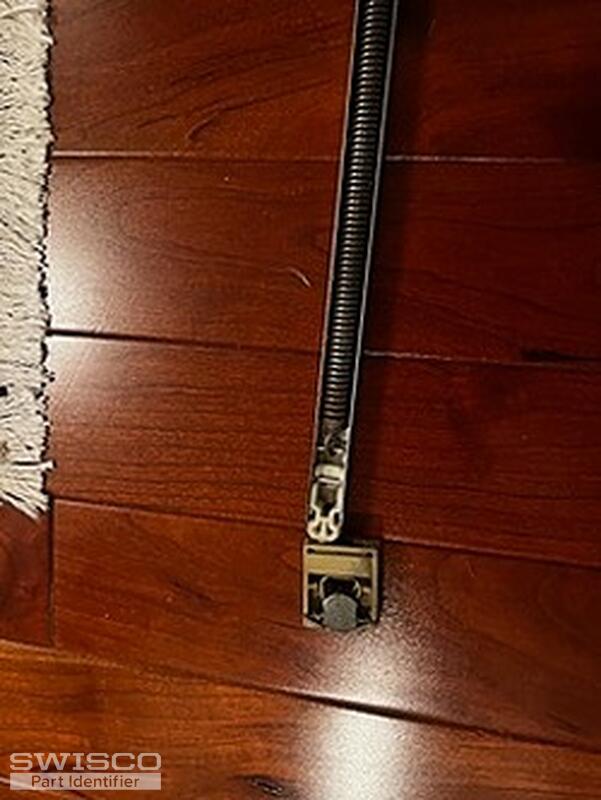

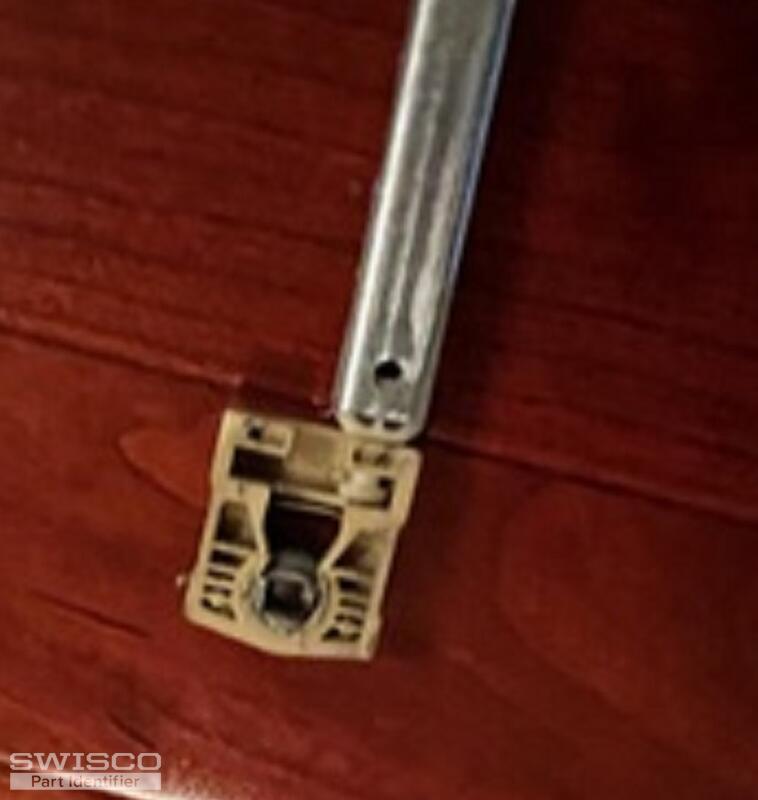

I need two of these balances. It looks like the shoe is a 15-224, but what do you think?
The sash weighs 28 pounds.

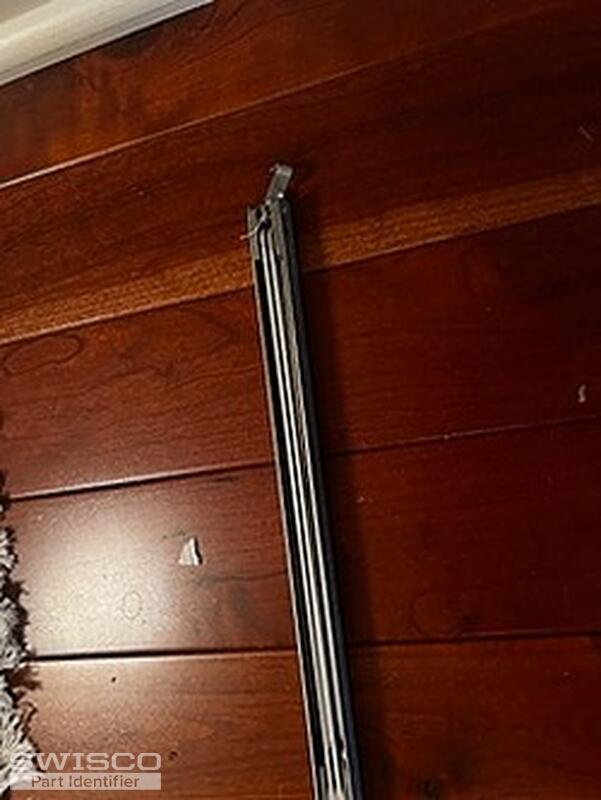

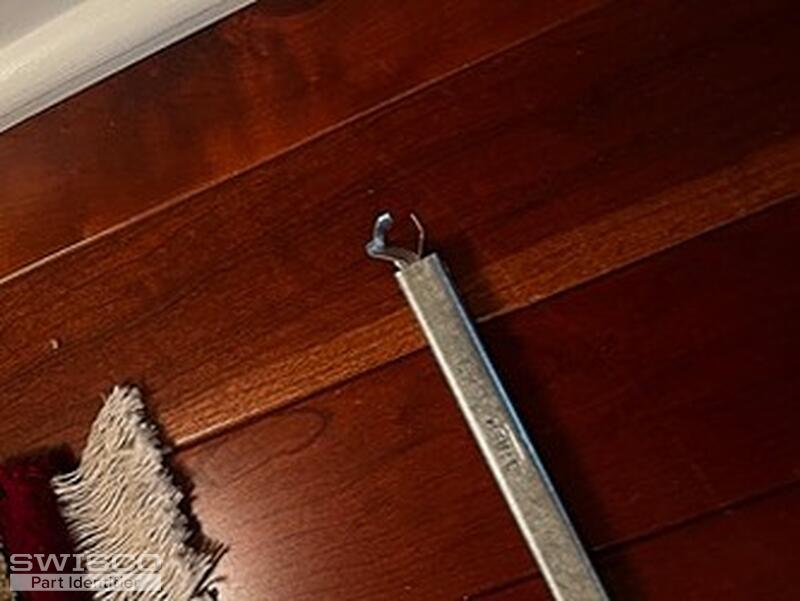

It attaches to the window with a hook.

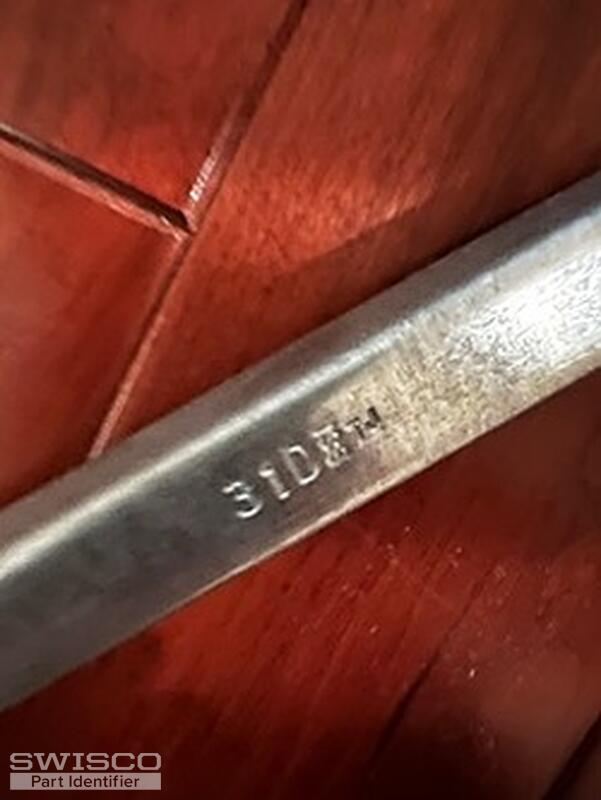

pivot shoe hook attachment 31D bsi stamp pivot shoe CathyM 5
5 user uploaded images
2 Replies
Quick Learner from Illinois
Jun 12, 2024 4:35 pm
I don't see the pictures so added them again.
Emily
Emily from SWISCO
Jun 14, 2024 9:47 am
SWISCO
EXPERT

Hello there!

We can supply this balance, but it has to be a custom order due to its configuration. You have a special, non-stock setup that we have to make here in the shop before we ship it out.

To outline it for you, we will be using our S795-31 channel balance as the base but swapping the top clip out for our 15-198 hook and the bottom shoe out for our 15-224 inverted link. We will also use the 31D stamp to match your original balance. I'll go ahead and email you a purchase link for (2) of these balances that you can use to place an order on our website. Please note that there is a 5-6 week lead time.

If you need the pivot shoe as well, see our 15-216 which is sold separately.
