Balance and other 2 pieces
Quick Learner from Keystone Heights , FL
May 2, 2024 2:44 pm

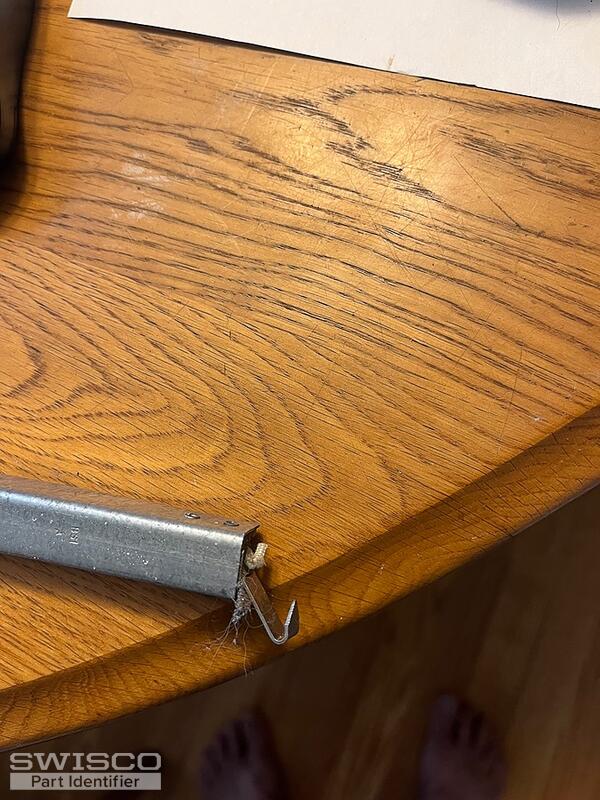

I have over 20 windows needing repair parts, want to make sure that I get the right ones. Want the left and right piece for the bottom of the window the swivel pieces that slide up and down in the track and balance.
We can supply your balances but it would need to be a custom order. We'll be using 29D stamps for the S770-29 channel balances with a rivet in the top of the channel and the 62-105 pulley hook attached, which will support a window sash between 23-28 lbs. I'd recommend weighing your sash to confirm that it falls within the supported weight range. Custom orders can't be returned for a refund so we like to be thorough.
Alternate image for 62-105
Once you're able to confirm if these specifications match your original assembly, we'll just need to confirm if you'd like a price quote for all 40 balances or if you'd prefer to start with 2 balances to try in one window, which some customers prefer when it comes to custom balances.
As for these other parts, the pivot shoe resembles our 15-105. The pivot bar is unfortunately discontinued. We don't have an exact match but we were able to successfully use the 26-042 pivot bar with the 15-105 cam.
