Balancer Parts

Start a new Discussion

Handy Person from West Chester, OH

Nov 17, 2025 3:43 pm

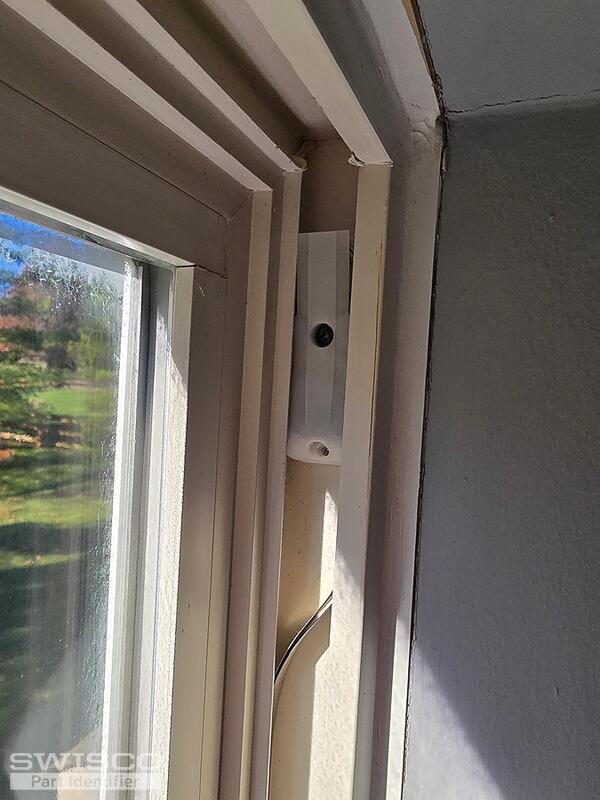

#5.5 64" coil
1/2" thickness
Looking for the coil and the plastic holder piece

4 user uploaded images

4 Replies

Jasmine from SWISCO

Nov 18, 2025 1:11 pm

Thanks for your post! The shoe you have is the 15-111 Pivot Shoe. These are compatible coil spring is the 1/2" wide Series 160. The one marked with the #5.5 can be replaced with the S160-05 but you'll need to check the stamp on the others to confirm it is the same.

The plastic piece is the 15-150D Coil Double Support.

Handy Person from West Chester, OH

Nov 18, 2025 5:22 pm

I am concerned that the replacement doesn't have enough travel, especially when the original was 64" long. Is some other modification needed too?

Jasmine from SWISCO

Nov 19, 2025 10:49 am

You will need to adjust the position of the assemblies in the track, which may require drilling a new hole. These have a maximum travel length of 35".

Unfortunately, the springs with the longer travel length are no longer made.
