Paul from SWISCO responded:
July 19, 2018

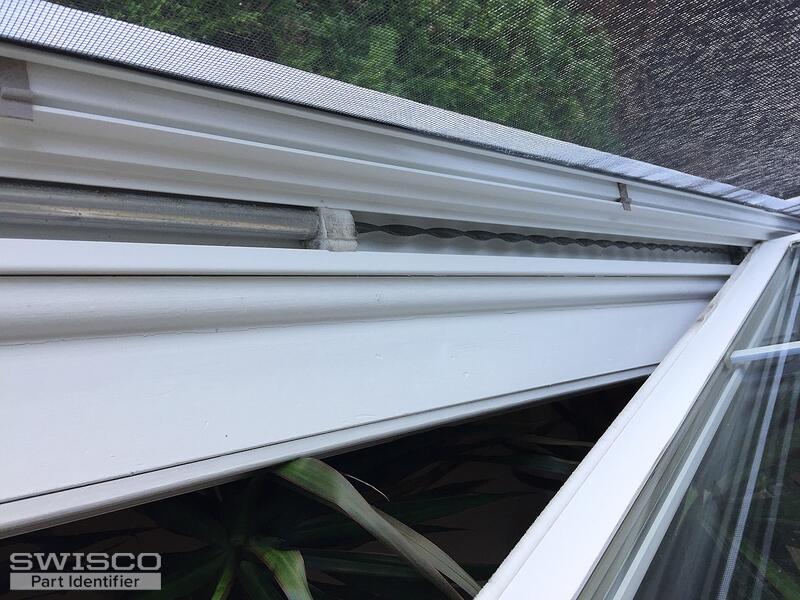

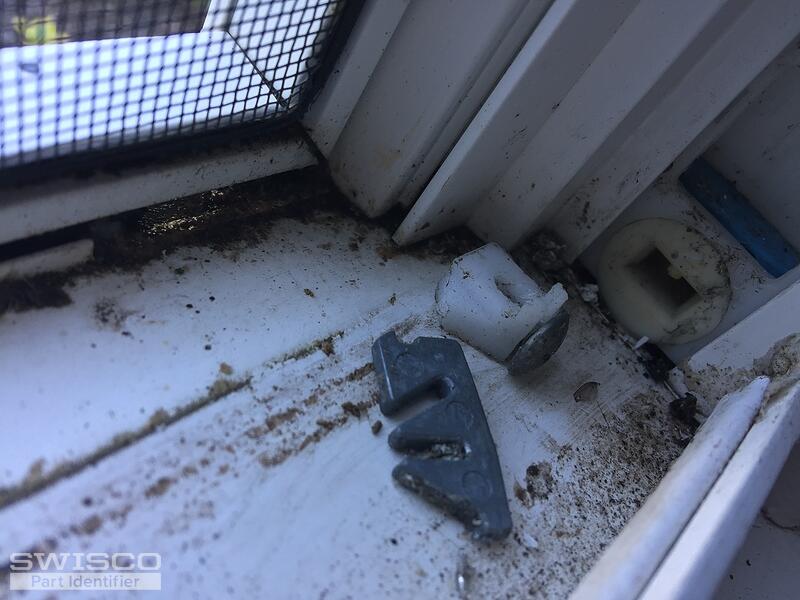

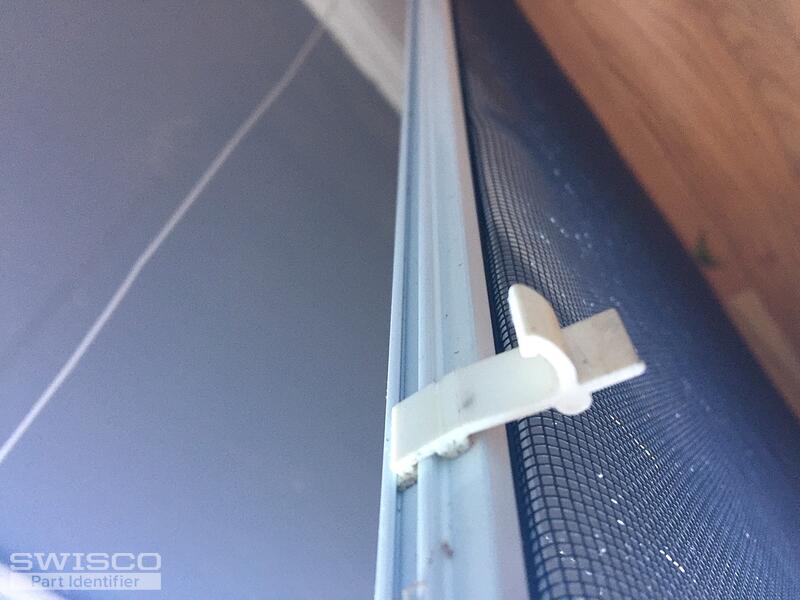

As I started looking at your photos, I noticed that you have a discontinued Patriot window. We highly believe we can assist you with the appropriate replacements. Let's start with your first photo. I see a balance screw plug with screw that helps secure the spiral to your pivot shoe. Our 26-200 and 33-016 are the way you want to go. Moving onto your pivot shoe, you should be able to use the 15-046. The measurements seem to match up. Take a look and see if you agree. Our Series 600 spiral balances have been used for these type of windows. To choose the correct one, we need to know the length of the balance and the color of the bearing on the balance. It's also a good idea to go with the 75-006 charging tool to help with the repairing of these windows. Lastly, let's not forget about your screen tab. Our 70-123 will work for you. |
