Balancer for Milgard window

A home owner from Tualatin, OR says:
July 9, 2022

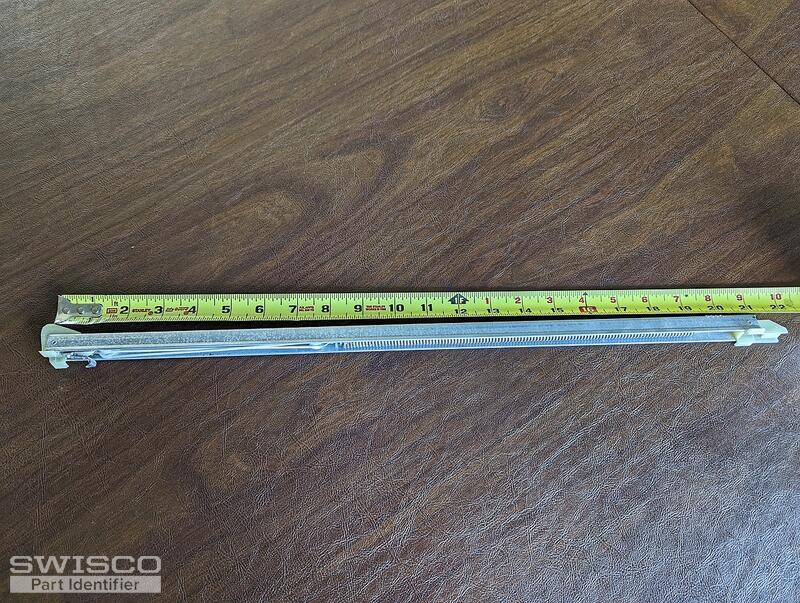

Need replacement for broken balancer. Balancer is 21 inches long with markings stamped: 20 5 DQ CALDWELL

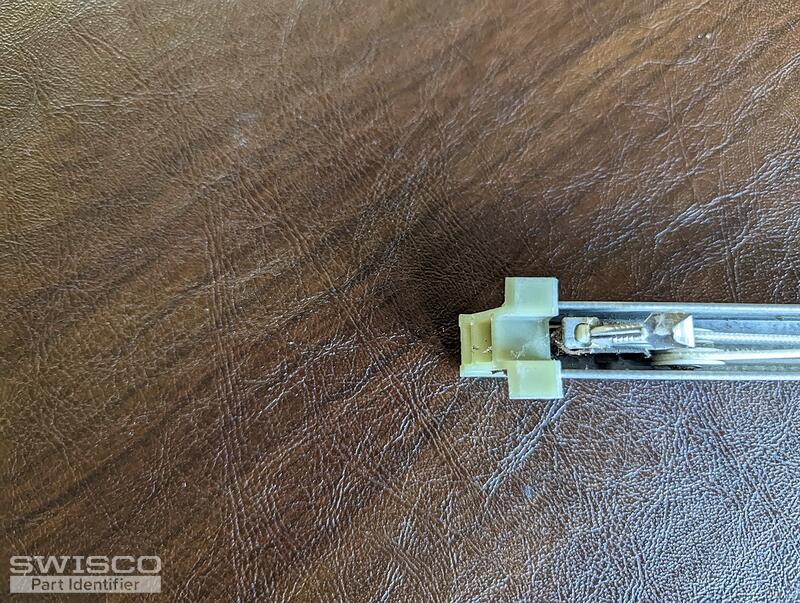

Thumbnail of the uploaded file named PXL_20220709_230027318.jpg
Thumbnail of the uploaded file named PXL_20220709_230019514.jpg
Thumbnail of the uploaded file named PXL_20220709_230006243.jpg
Thumbnail of the uploaded file named PXL_20220709_230000551.jpg
Thumbnail of the uploaded file named PXL_20220709_225831399.jpg
Profile picture of Emily
Emily from SWISCO responded:
July 13, 2022

Hi there!

Your hardware appears to match our S380-21 or S385-21 channel balance. These two parts may look almost identical but each one has a different bottom shoe size. The Series 380 comes attached with a 1" deep shoe and the Series 385 comes attached with a 1-3/32" deep shoe. You'll just need to measure as shown in the diagram below to determine the best match. You will also need the 2050 strength option.

If you have any questions just let us know!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
21" Series 380 Channel Balance
21" Series 380 Channel Balance
S380-21
$9.38
21" Series 385 Channel Balance
21" Series 385 Channel Balance
S385-21
$9.38
