Balancers - need complete with top guide and bottom shoe

A handy person says:
I am looking to replace some balancers on my windows. The length of the metal in the pictures is 18". I need complete with top guide and bottom shoe. Attached are pictures to help identify correct part number. Please let me know if any additional information is needed for correct part number

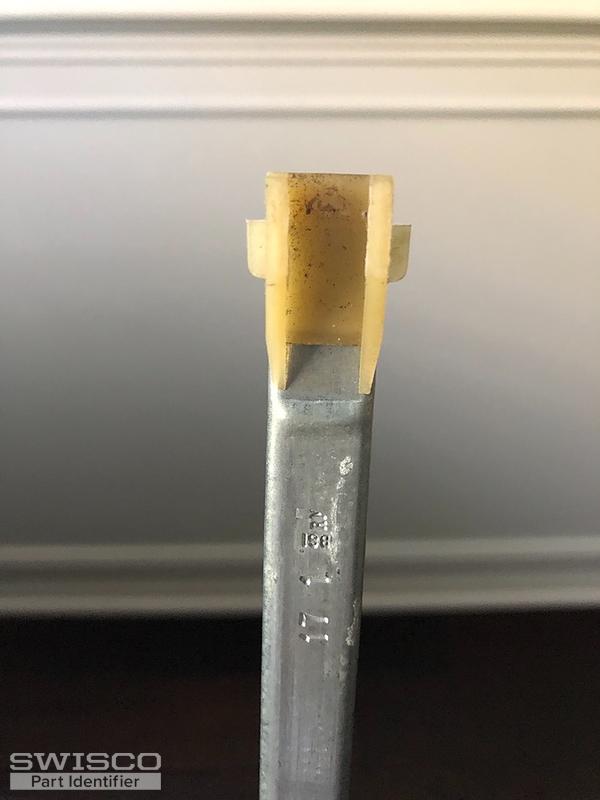

Thumbnail of the uploaded file named F34A9AD1-DB58-40AE-8D6F-61A93F06D441.jpeg

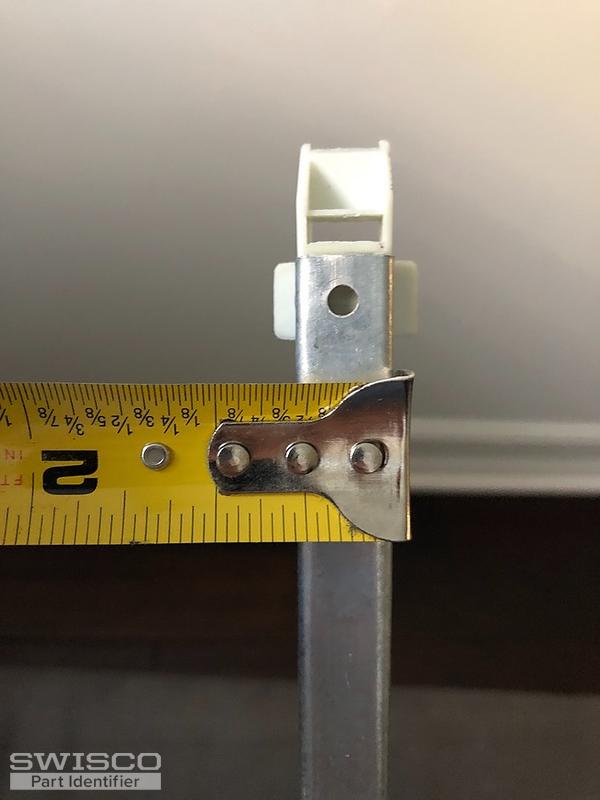

Thumbnail of the uploaded file named AC119464-0B41-4B21-A787-A24681D50CDF.jpeg

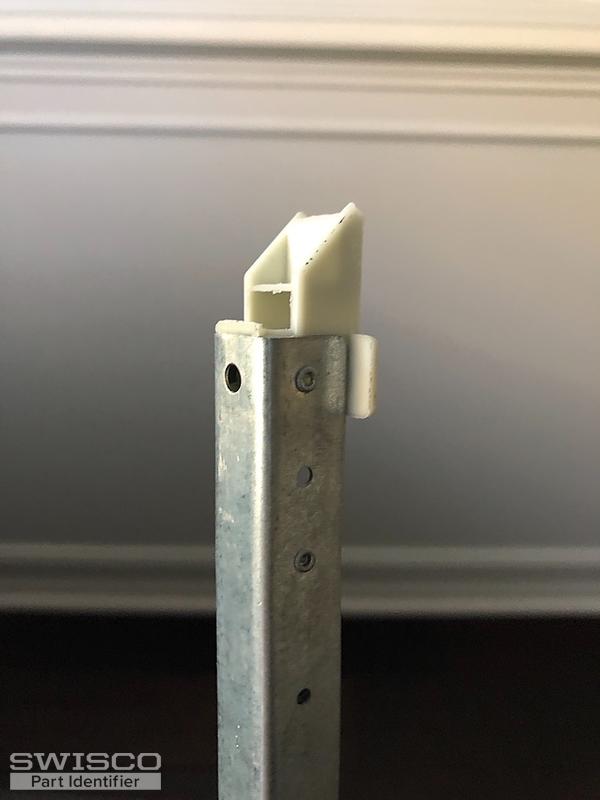

Thumbnail of the uploaded file named 184C563B-AAA2-45E8-B068-C4F392E72E34.jpeg

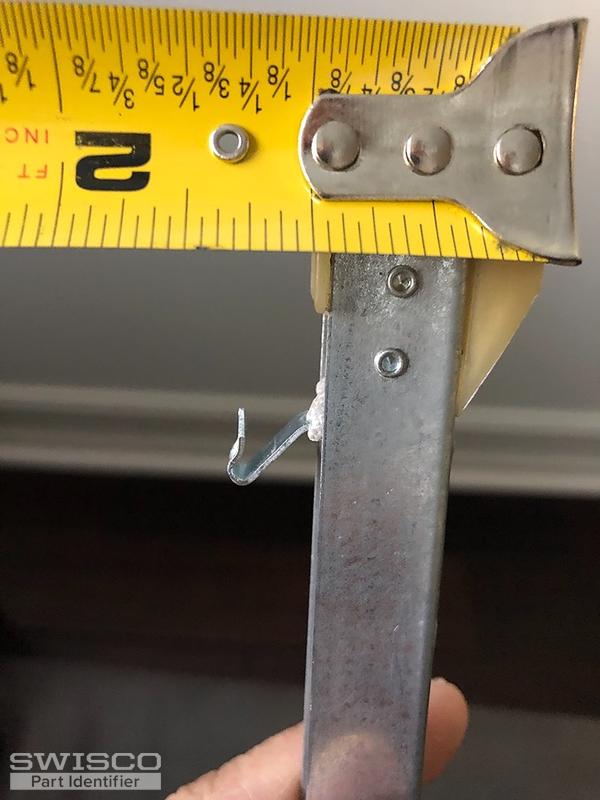

Thumbnail of the uploaded file named 45F1F54A-A469-495A-9448-280D778CE7D0.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-18 or S385-18 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 1710 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.



Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
