Balances

Quick Learner from DeLand, FL 32720, USA

Apr 11, 2025 3:22 pm

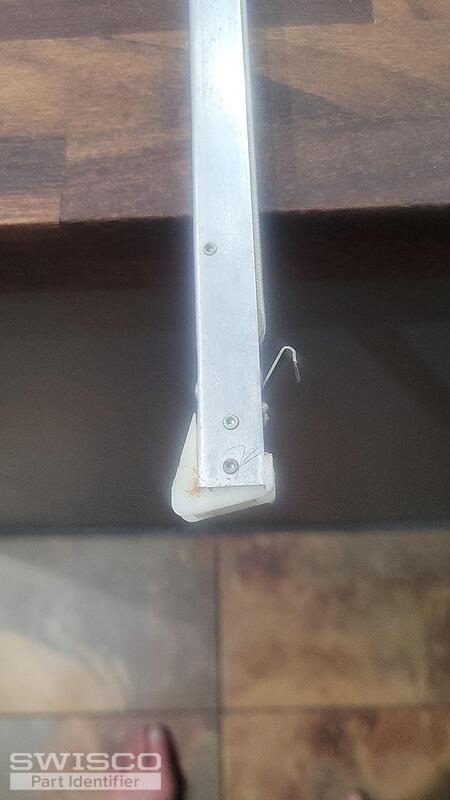

I have 28 balances I need to replace. 20 are marked 28-2-J (this are all 28 inches long and 1/2 inch width)
6 are marked 28-1-J (this are all 28 inches long and 1/2 inch width)
2 are marked 2630 (these are 26 inches long and 1/2 inch width)
Could you please direct me to which items to order?

4 user uploaded images

6 Replies

Emily from SWISCO

Apr 15, 2025 9:42 am

Hi there!

Thanks for reaching out to us. Your balance looks like a match for the Series 377. This comes attached with the 19-018 top fitting and 15-005 1" deep shoe.

Can you double-check the length of the metal channels? They should measure 29" for the 28-1 and 28-2 balances and 27" for the 2630 balance.

Quick Learner from DeLand, FL 32720, USA

Apr 15, 2025 11:15 am

Yes you are correct when measuring with the plastic ends those are the lengths

Emily from SWISCO

Apr 17, 2025 11:18 am

As long as the metal balance channels measure 27" and 29" long, not including the end fittings, you'll be good to go with the S377-27 (2630), as well as S377-29 balances with 2810 and 2820 strength options for your respective stamp codes.

Quick Learner from DeLand, FL 32720, USA

Apr 17, 2025 11:35 am

Ok thank you

Emily from SWISCO

Apr 17, 2025 11:57 am

We're happy to help. Just let us know if you need anything else.
