27" Series 377 Channel Balance

Product Code: S377-27

27" Series 377 Channel Balance

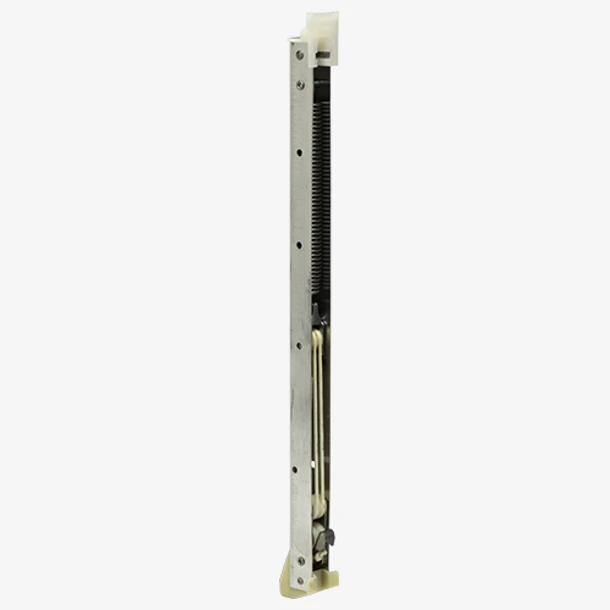

Main product image of the S377-27 27" Series 377 Channel Balance
How to Identify Replacement Channel Balances
How to Replace a Non-Tilt Channel Balance
How to Repair a Jammed Window
$9.75/each
Quantity Price
1-11 $9.75
12-49 $8.78
50-99 $8.29
100-249 $7.80
250+ $7.31
Please Note: Bulk pricing applies only to purchases of the same option
Option:
2610
2620
2630
2640
2650
add $0.75
2660
add $1.25
2665
add $2.25
Product Description
This is a Series 377 channel balance for non-tilt windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.

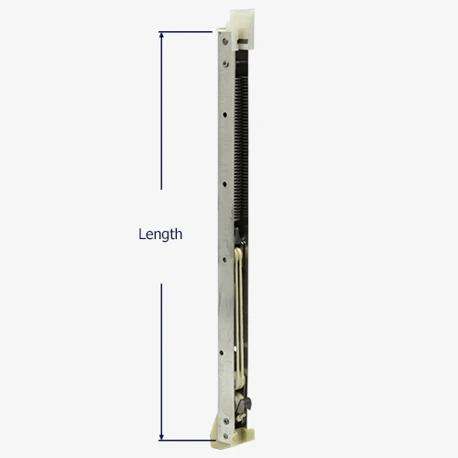

  • This balance has a 27" long metal channel. When determining the length, do not include the attached fittings. Only measure the metal channel.

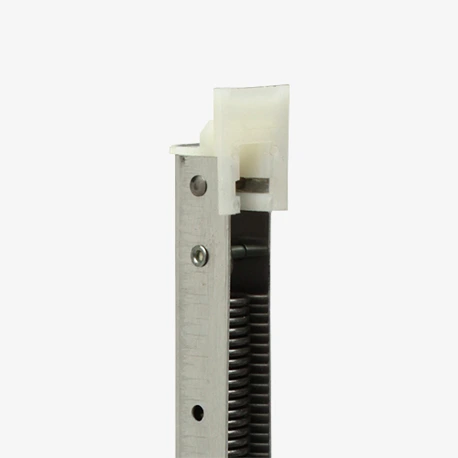

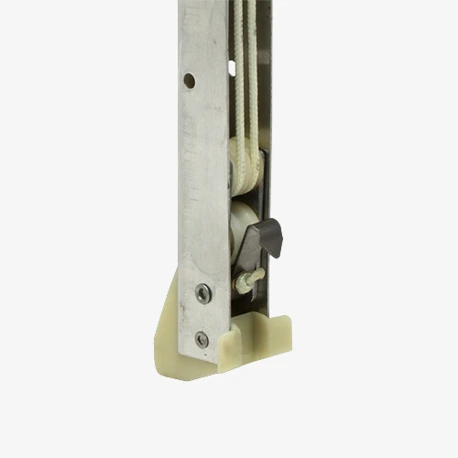

  • Comes fully assembled with the 19-018 top and 15-005 (1" deep) bottom fittings and will be ready to install out of the box.

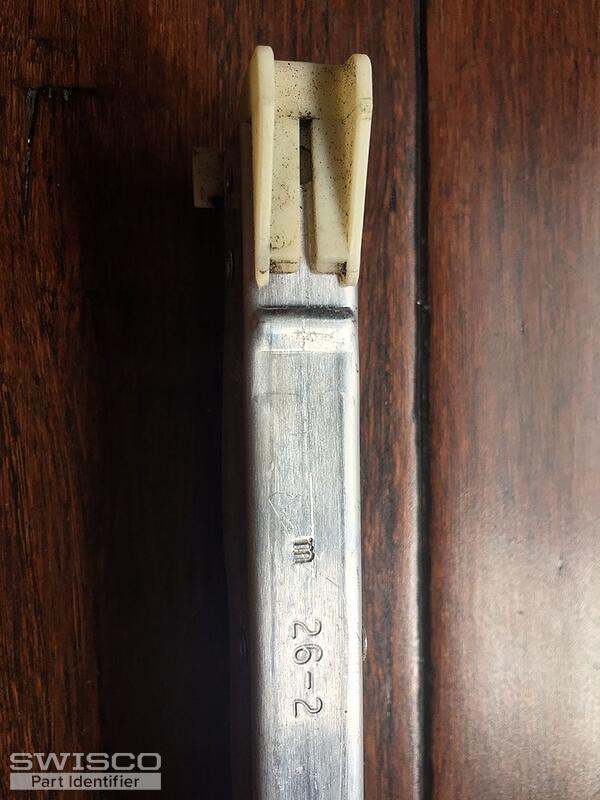

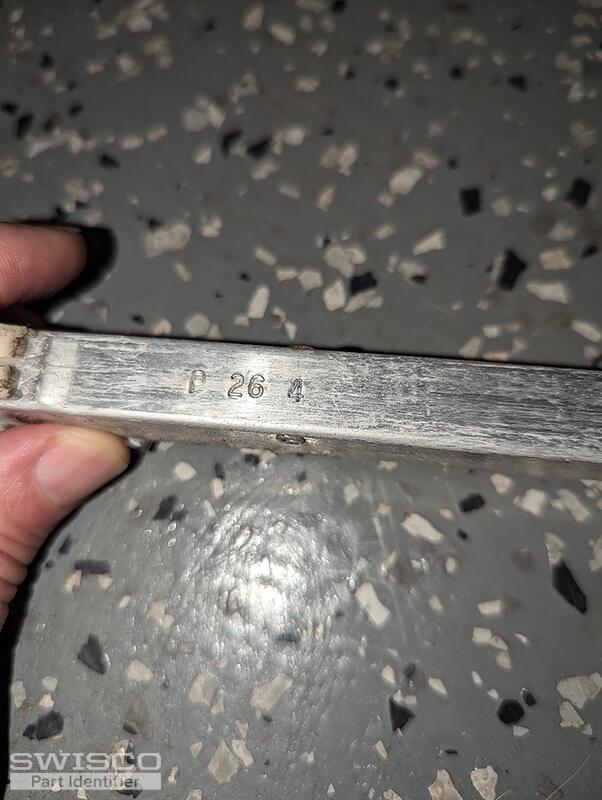

  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • The width of the metal channel measures 9/16" but is considered 1/2" in the trade.
  • Can work for either the left or right side of the window interchangeably.
  • Used in windows manufactured by Pan Am
Stamp Option Sash Weight Range
2610 5 to 9 lbs
2620 9 to 13 lbs
2630 13 to 19 lbs
2640 19 to 26 lbs
2650 26 to 30 lbs
2660 30 to 33 lbs
2665 33 to 36 lbs
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
Guides
Customer Questions & Answers
Discussion # Of Replies Last Post Date

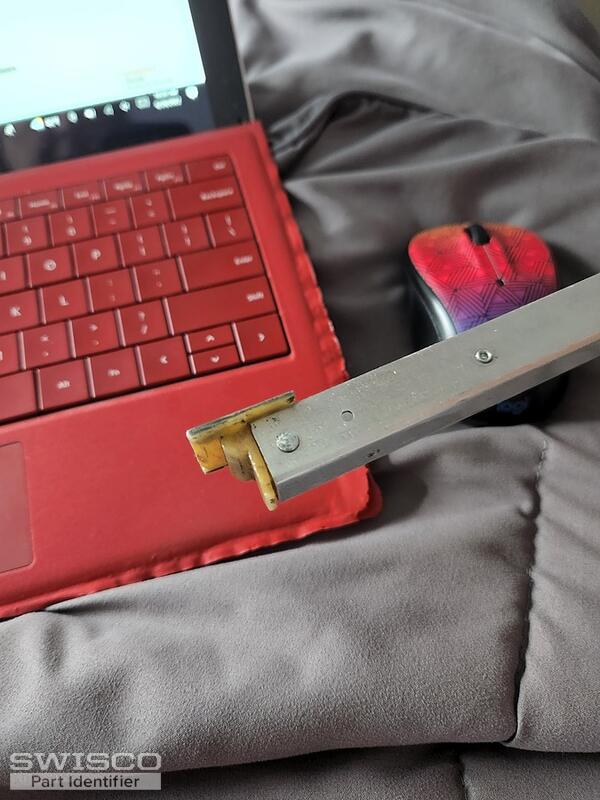

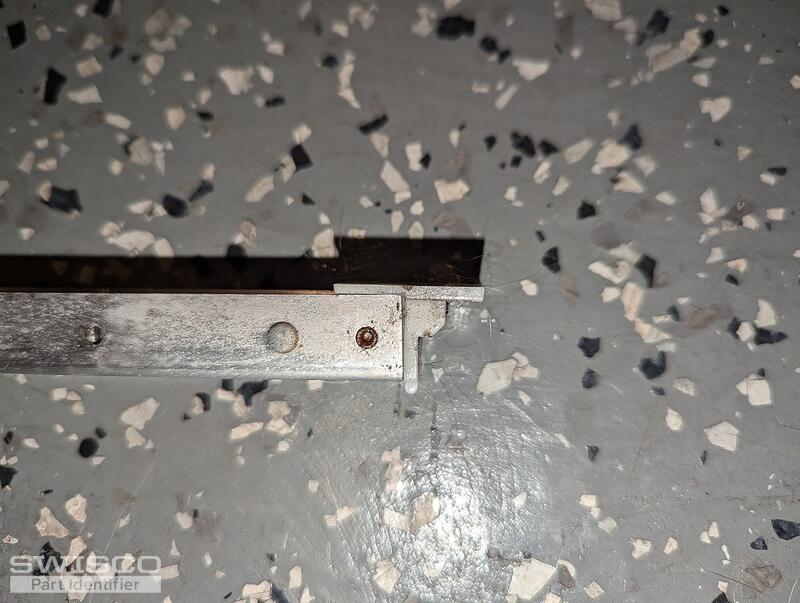

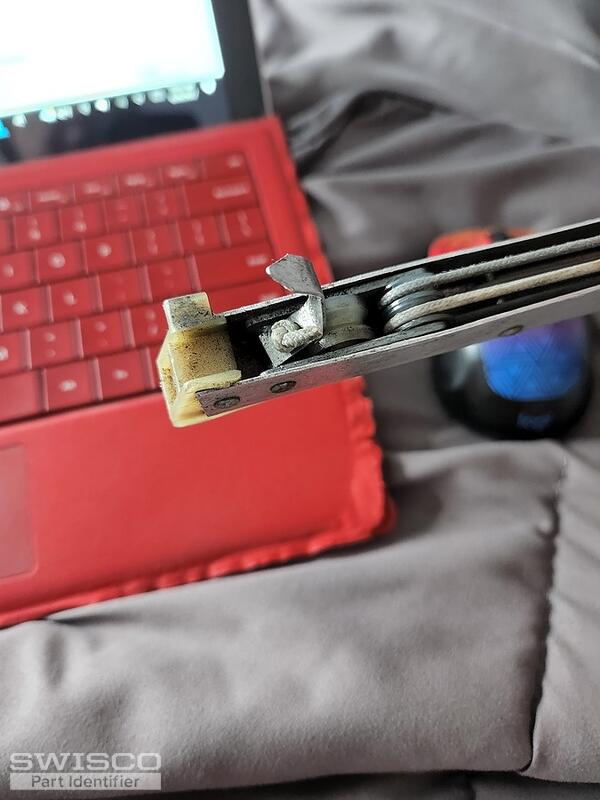

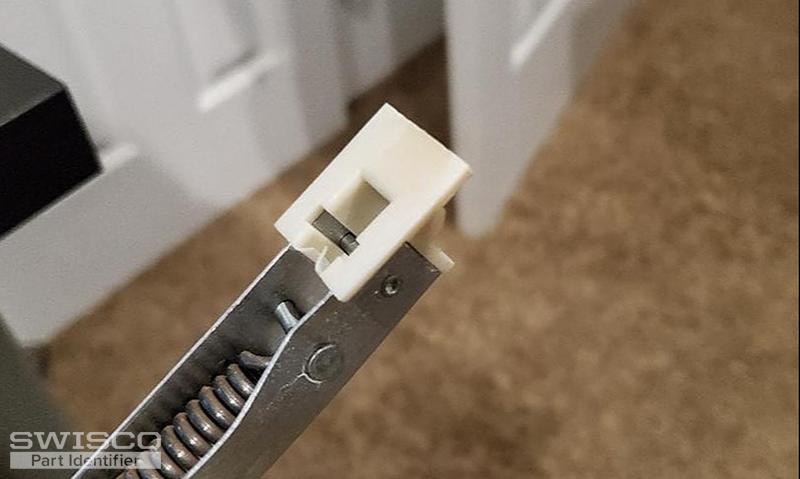

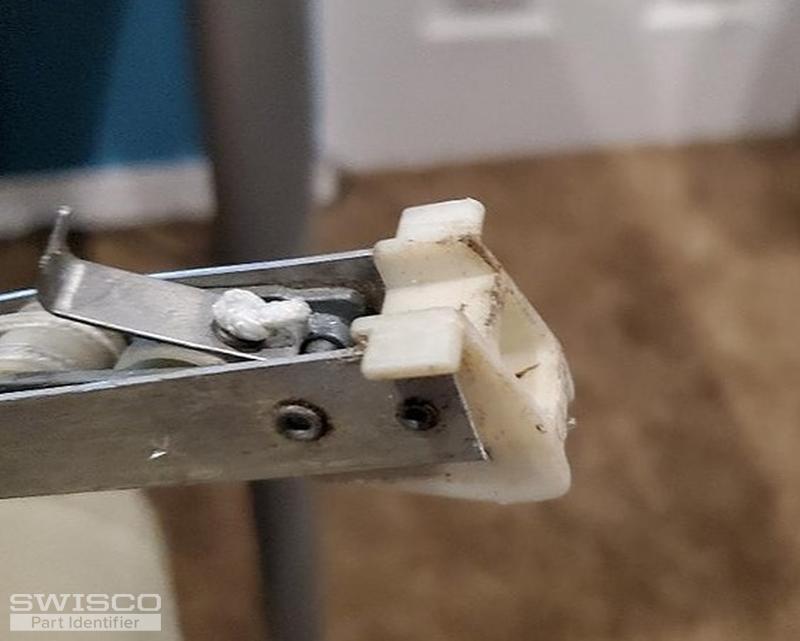

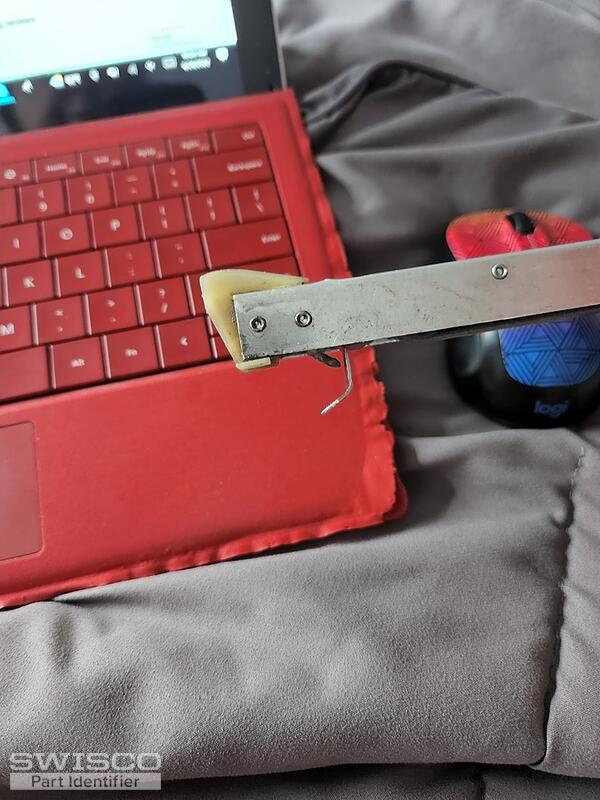

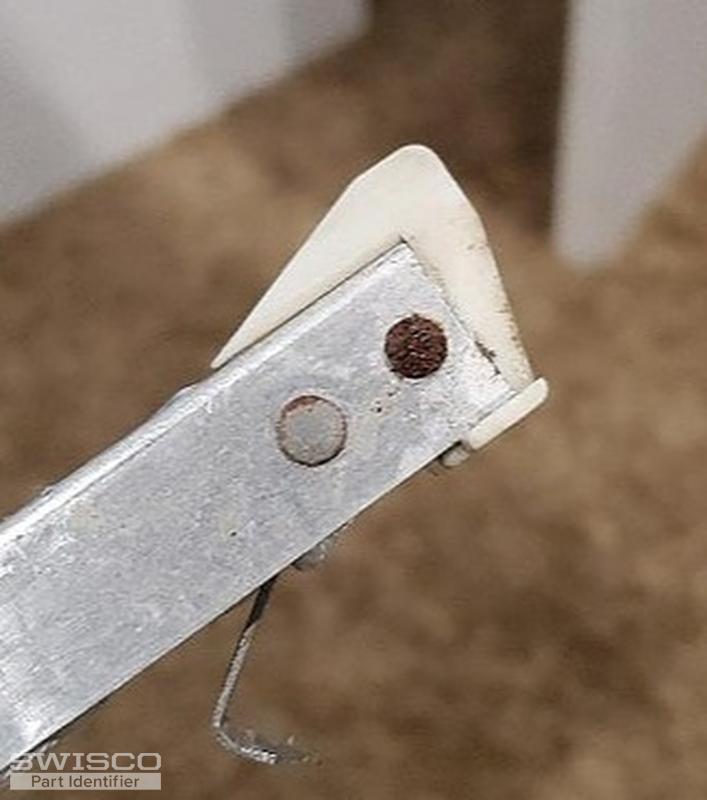

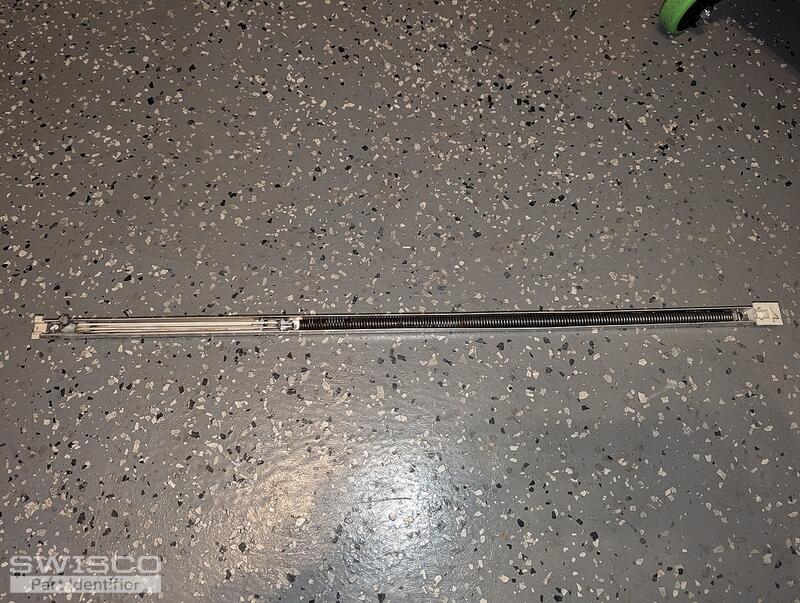

Replacement balancesThis discussion includes image(s). 2 Sep 27, 2019
Looking for balance sash with winged bottomThis discussion includes image(s). 2 Jan 20, 2019
Channel ballastThis discussion includes image(s). 3 Apr 20, 2018
Caldwell Balance Spring This discussion includes image(s). 0 Mar 23, 2018
Replacement T balancerThis discussion includes image(s). 4 Apr 12, 2017
BALANCE HELP 2 Feb 13, 2017

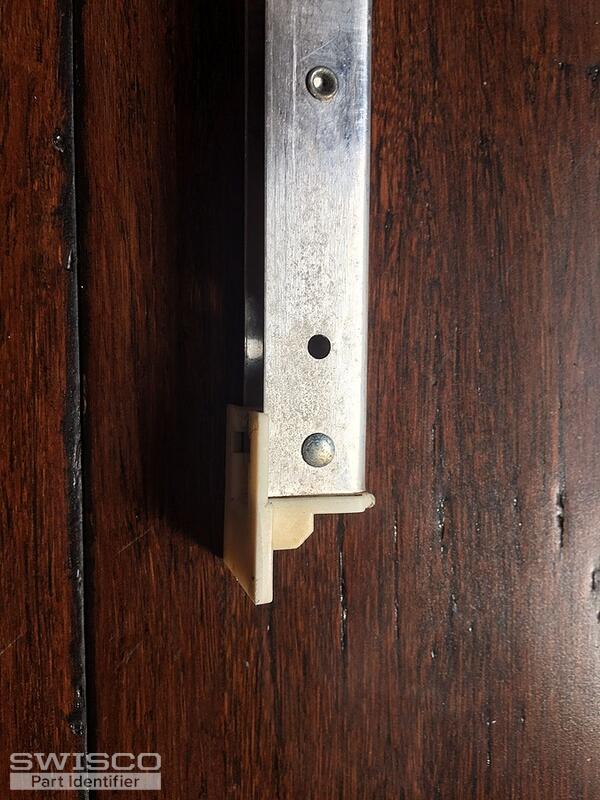

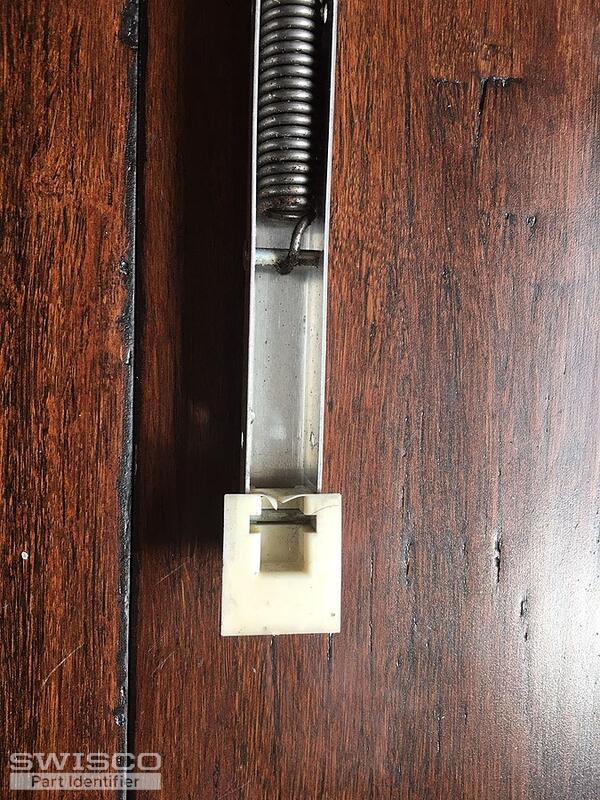

Need to replace my channel balance This discussion includes image(s). 2 Dec 14, 2016
