Hello,
I need help determining which balances would work for these windows. The glass etching says they are Herculite. The balance numbers are different than what I am used to seeing so I'm hoping you will know what will work. Here are all the numbered balances;
1) Entry. 21 2 Bsi oe qty 2
2) Dining. 27 3 bsi oo qty 2
3) Family room. 27 3 bsi oo qty 2
4) bed. Downstairs 33 3 bsi oe qty 2
5) Master. 29 3 bsi OB qty 8
6) Bed above garage. 18 2 bsi nn. qty 2
7) Upstairs bath 15 2 bsi OF qty 4
If you could help me order these I'd really appreciate it!
|
Bob from SWISCO responded:
February 7, 2019
Thanks for posting. The numbers you cite are not actually do not identify specific types of balances; rather, they indicate the spring weight--this will be useful later. For now, I need a little more information from you to make sure we get the right parts for all 7 sets of balances you require. 1) Could you show me an undamaged version of your balance, removed from the window, from each of the 7 sets you mention (entry, dining, family room, etc)? I need to see the nylon attachments specifically, and make sure they do not differ from set to set. 2) Could you also confirm the length of the metal channel in each set? Do not include the nylon attachments in this measurement. Once I have this information, I should be able to narrow down the balances you need. Thanks! |
|
Tom from SWISCO responded:
February 15, 2019
I'm not sure I understand your dimensions. You say that your tops are 3/4" depth = 5/8", but I don't know what that means. Is 5/8" a different dimension? What is it in regards to? The same goes for the shoe. You say that the depth is 1" = 1-1/8", but these are two very important measurements that would decide what your Series is. Like Bob said, we would still need to see a picture of the balance out of the window. Though to be honest, you really just need to confirm whether your nylon fitting has wings or not. If it has wings, then you have either our Series 380 or Series 385, depending on the depth of the shoe. If the bottom fitting doesn't have wings, then our Series 395 is a stronger possibility. Personally, I'm leaning towards the Series 395 myself, but you should confirm whether it has wings just to be 100% sure. |
|
|
Tom from SWISCO responded:
February 21, 2019

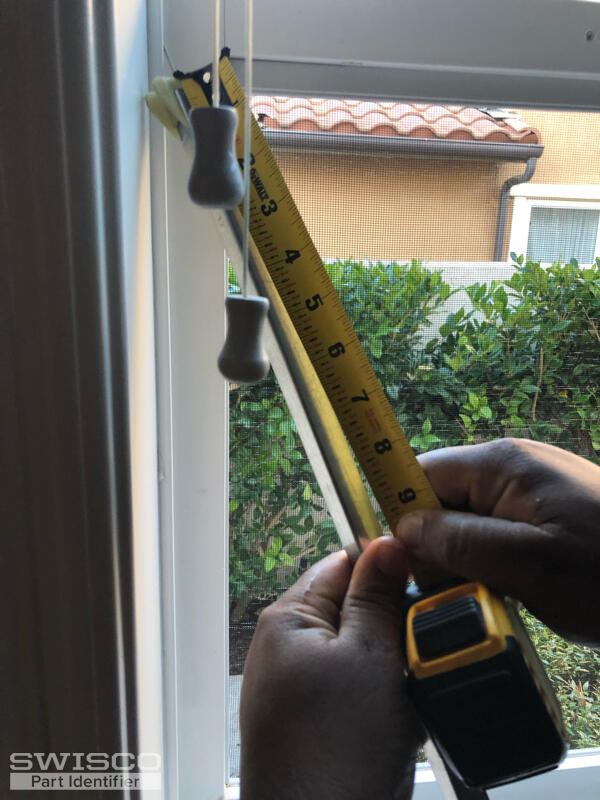

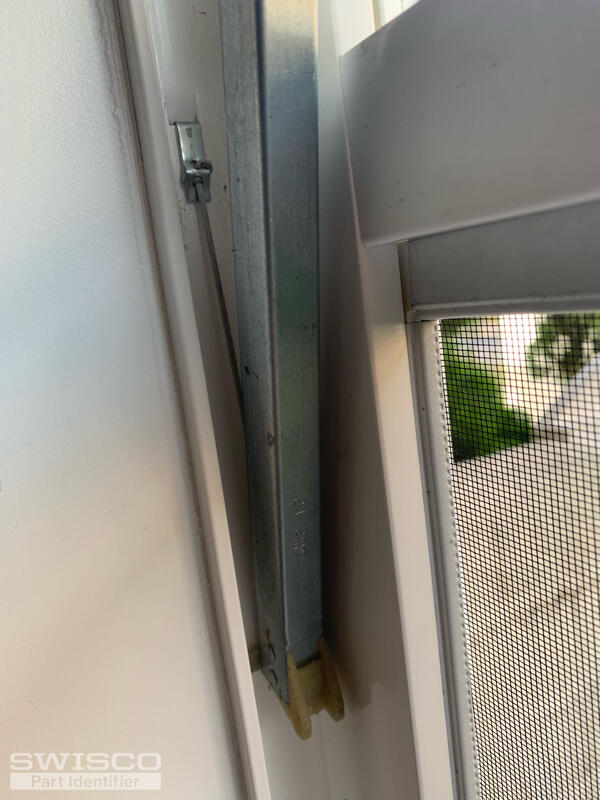

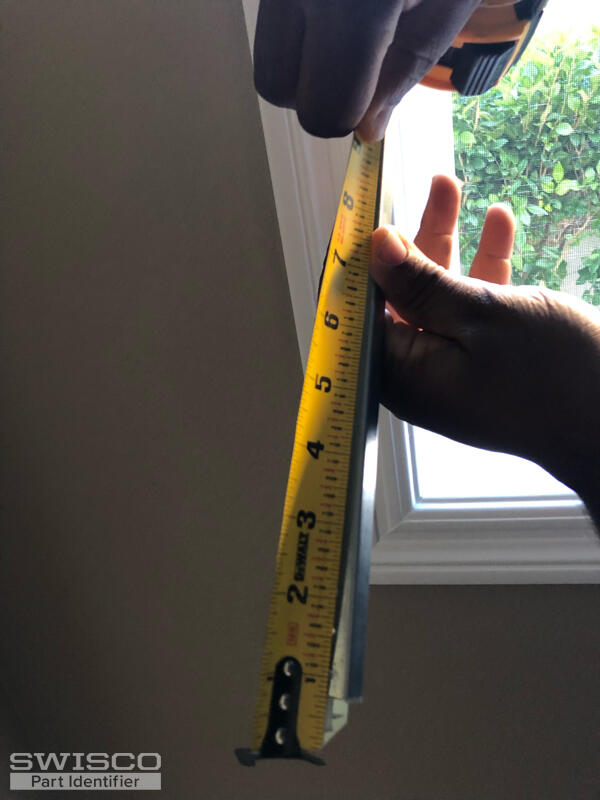

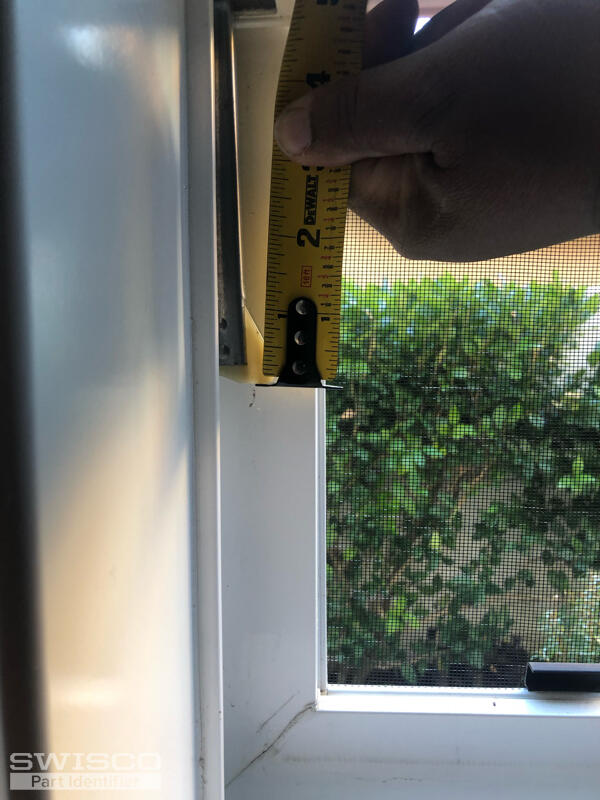

It's still hard to tell. Your balance is a little obscured in each of these pictures. That said, it does look like your shoe has wings. With that in mind, you want either our Series 380 or Series 385, depending on the depth of the shoe. If the shoe is 1" deep, you want the Series 380. If it's 1-3/32" deep, you want the Series 385 instead. The depth is the "heel to toe" measurement. |
