Balances and tilt bracket

Quick Learner from New Jersey
I have 12 windows that need to replace the balances and the tilt lock mechanism.
4 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

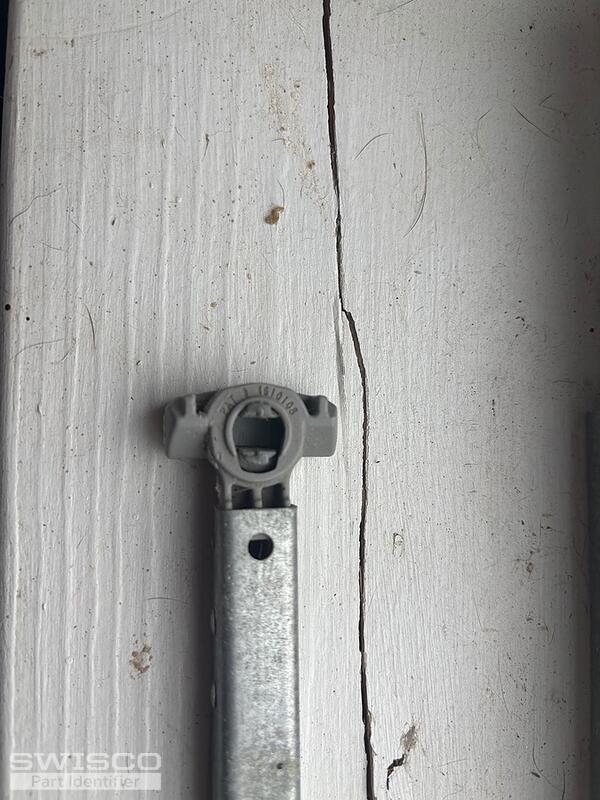

Thanks for posting. The channel balance looks like a Series 795, along with the 15-195B 1-1/4" wide Open Cam T-Lock Shoe, sold separately. I can't make out further details about the balances from these photos, so read our guide below to determine all the details you need to choose the right balance. Let me know if you have any questions.

As far as the Tilt Latches go, it's difficult to say without seeing them out of the window. I suspect they might be the 26-393A or 26-393B pairs, depending on the dimensions and the style of the grooves on the sides of the latch bodies. Compare both options with your old latches, and let me know if either seems like what you need; if both differ, send photos of the tilt latches out of the window and tell us how.

Dimensions for 26-393B
Dimensions for 26-393B
Alternate view of 26-393B
Alternate view of 26-393B
Dimensions for 26-393A
Dimensions for 26-393A
