Barber and ross cranking mechanism

Handy Person from Vienna Va

Apr 28, 2019 10:22 am

Dear sirs

Can you ID this part for me? I think it is no longer made. Do you have any in stock? Or is there another manufacturer device that will fit.

Thanks Darrell

2 user uploaded images

4 Replies

Bob from SWISCO

Apr 29, 2019 12:43 pm

Hi Darrell. I'm sure we can replace this operator for you, but we need to see the entire mechanism, including the link arm(s). A bird's eye view of the whole operator, either removed from the window or at least with the window open, will help us narrow down the possibilities. Many thanks.

Handy Person from Vienna Va

May 2, 2019 9:44 am

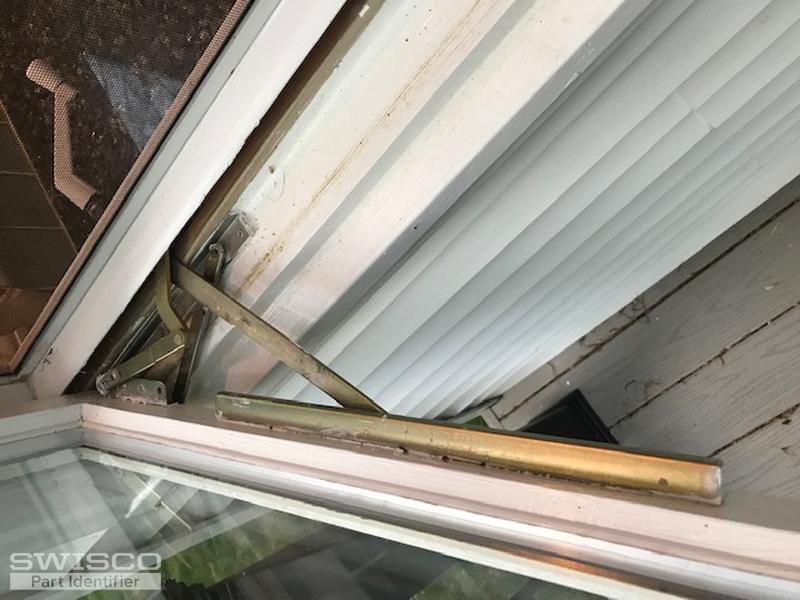

OK, here are the pictures of the arm mechanism.

Thanks

Darrell

2 user uploaded images

Bob from SWISCO

May 2, 2019 9:52 am

Thanks for getting back to me, Darrell. See our 39-031 & 39-032 Entry Gard Operators, or our 39-155 & 39-156 Dual-Arm Operators. Compare the dimensions of both sets with your old operator to see what matches most closely. If you need a new handle and cover, see our 39-205 and 39-107.
