Bi-Fold door hardware

Home Owner from Chicago

Mar 7, 2021 6:33 pm

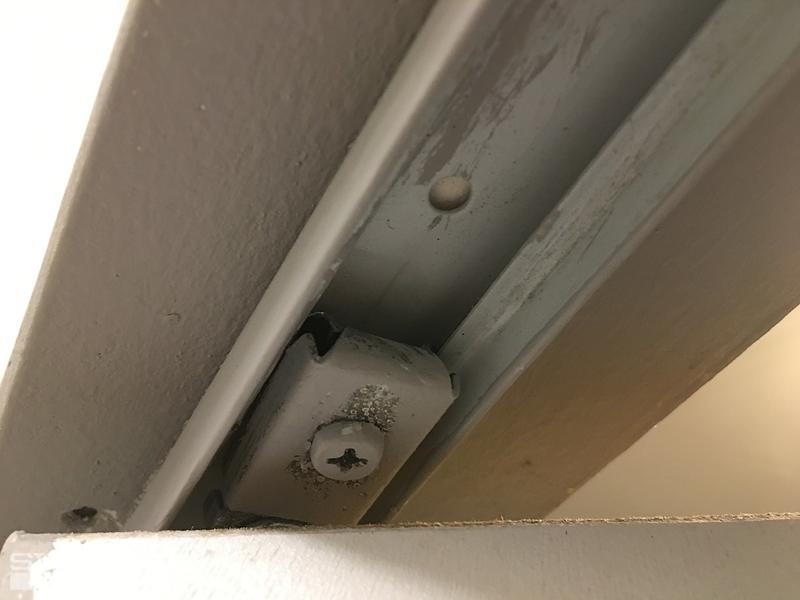

We have a 36" track which is 1" wide needs replaced since it is somewhat bent. We also need the following hardware replaced. Please advise on what to order.

1. Track
2. Hinges
3. Roller
4. Top mount
5. Bottom mount

4 user uploaded images

4 Replies

Casey from SWISCO

Mar 9, 2021 12:49 pm

Hello,

We'd be happy to help but we would need to see and know the dimensions of the top roller and bottom pivot pins removed from the doors, as well as a clear view of the bracket in the track that these parts connect to, to research your replacement options.

We have a guide that lays out the kind of information we need for bi-fold doors, which you can read through here. Thank you!

Home Owner from Chicago

Mar 9, 2021 9:25 pm

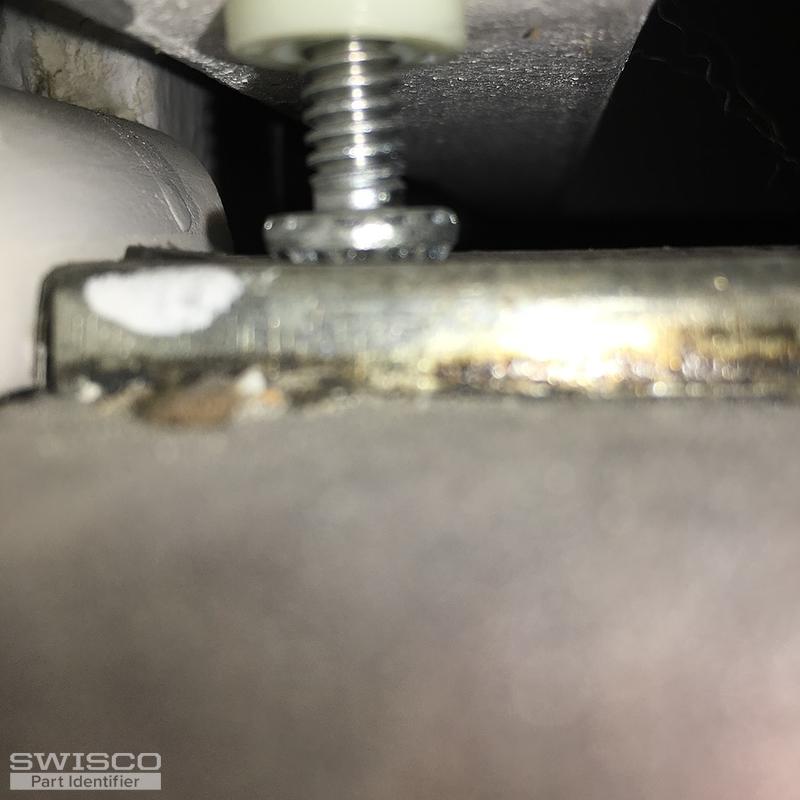

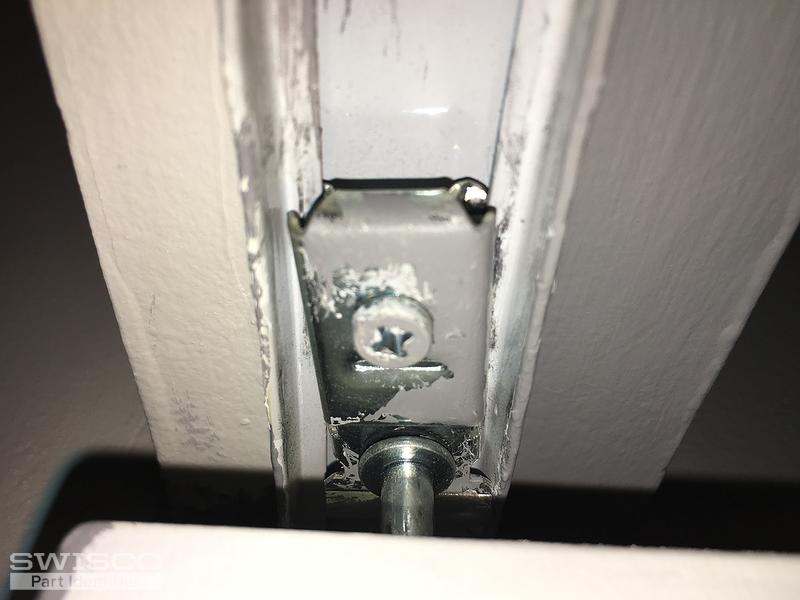

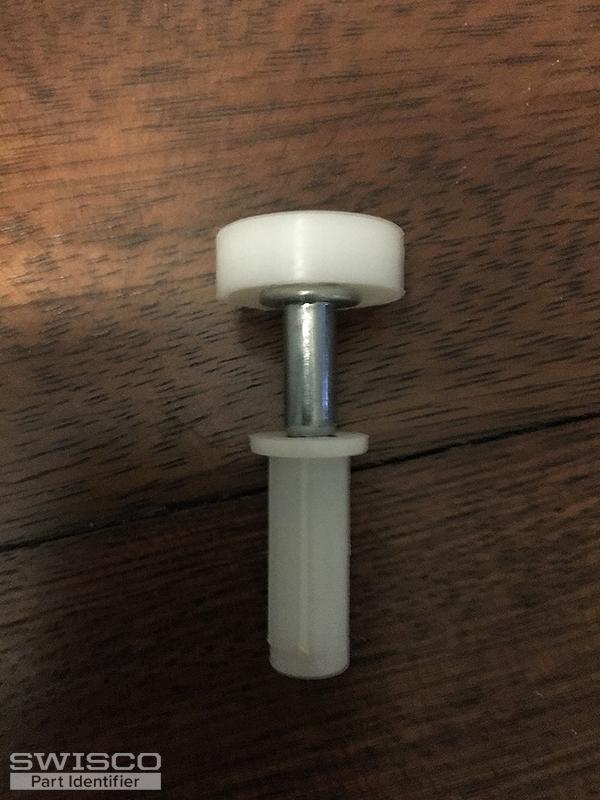

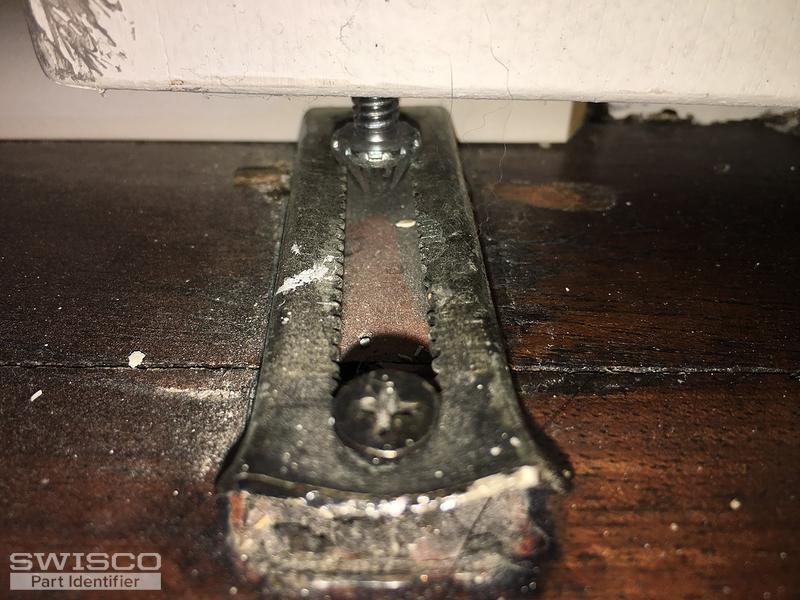

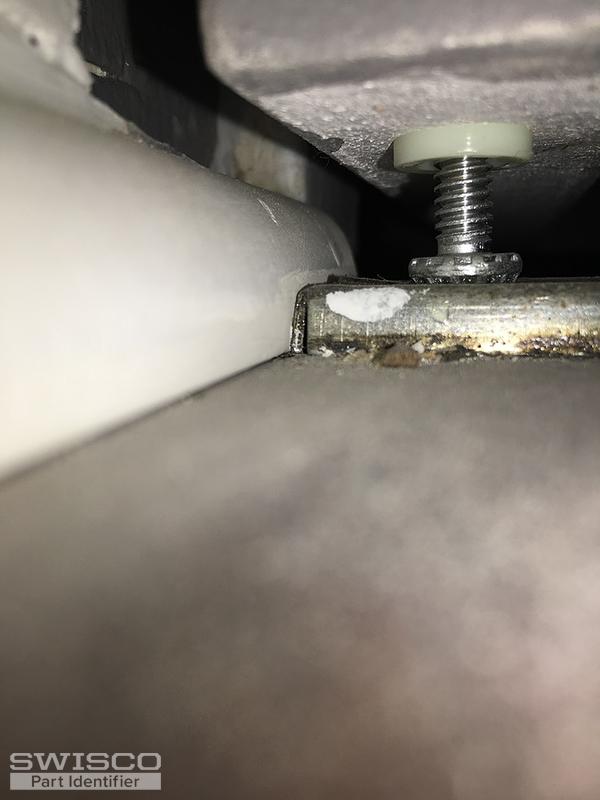

The roller is about 7/8" in diameter. Here are more photos of the hardware. Let me know if this will suffice. Thanks.

5 user uploaded images

Paul from SWISCO

Mar 10, 2021 9:05 am

Your top track looks like our 23-509, which comes with the 23-302 pivot bracket. The hinge that comes with this bifold door set is the 23-401. The top roller guide is our 23-114 and the bottom pivot bracket is 23-301. You can purchase the 23-504 complete track set if you'd prefer. Thanks for posting.
