Bifold Door Hardware

A quick learner says:

May 3, 2023

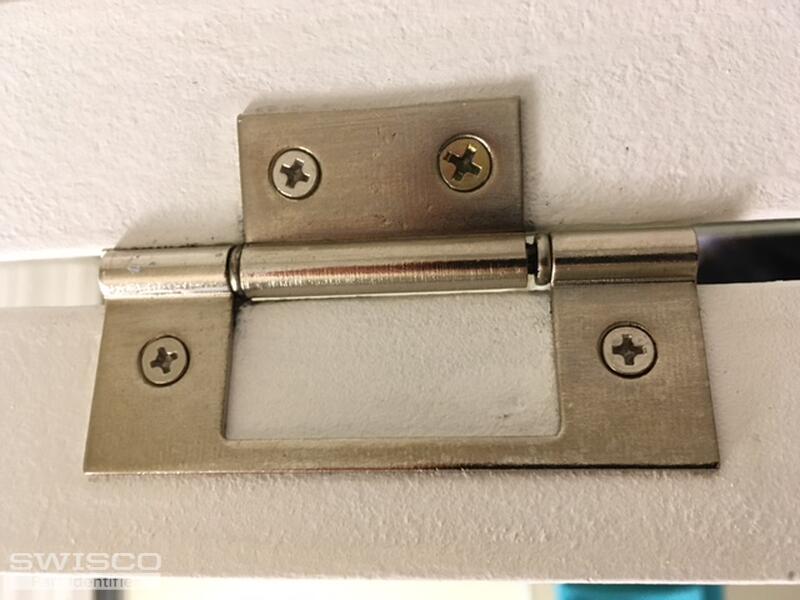

Hello here's the pictures of our door hardware that we would like to replace.

Thumbnail of the uploaded file named image6.jpeg

Thumbnail of the uploaded file named image4 (3).jpeg

Thumbnail of the uploaded file named image5 (1).jpeg

Thumbnail of the uploaded file named image7 (1).jpeg

Jasmine from SWISCO responded:

May 4, 2023

Thanks for posting! Based on the photos here, I am confident we have the replacement parts you need for your wood folding doors, but you'll need to make sure to confirm the dimensions for each part to determine if they are the right fit.

To start, your hinge appears to be our 23-401. You'll especially want to confirm the installation hole measurements.

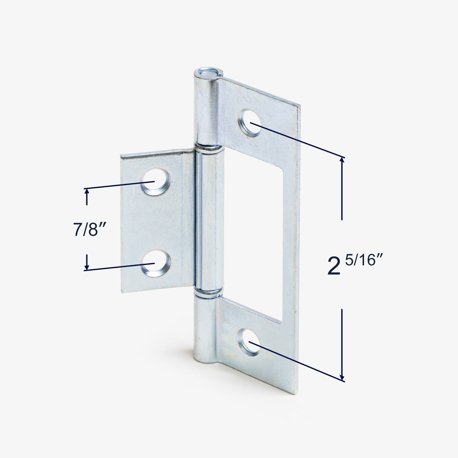

Alternate view of 23-401

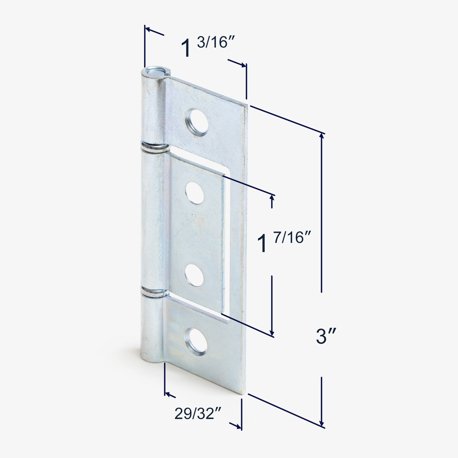

Dimensions for 23-401

The top bracket appears to be the 23-302 which is likely being used along with the 23-118 spring-loaded top pivot pin.

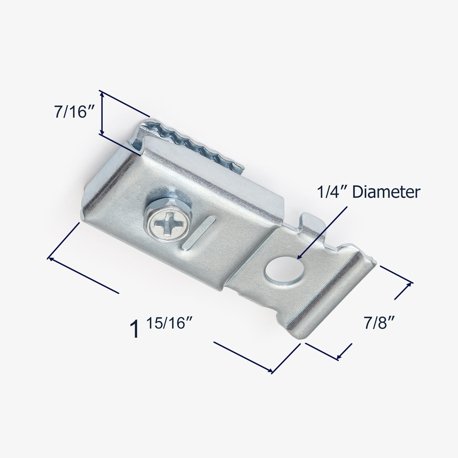

Dimensions for 23-302

Dimensions for 23-118

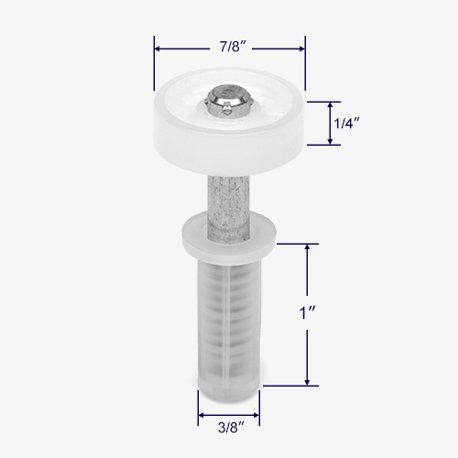

The guide wheel appears to be the 23-195. The most important measurement you'll want to confirm is the diameter of the wheel that fits into the track as well as the diameter of the post that fits in to the top of the door.

Dimensions for 23-195

Your bottom bracket looks like it could be our 23-301. Which is likely being used along with the 23-119 bottom door pivot or the 23-113, but you'll need to remove the bottom pivot to confirm which.

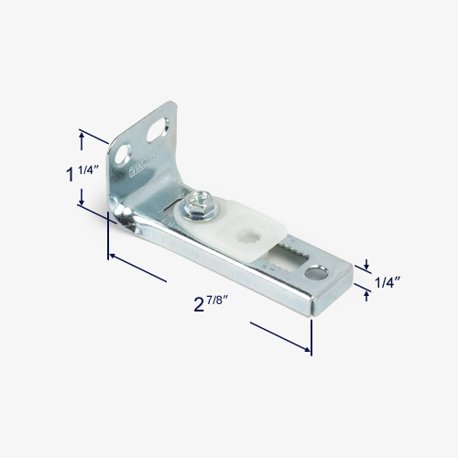

Dimensions for 23-301

Closet Door Non-Mortise Hinge

23-401

$1.37

Guide Wheel, 7/8" Nylon, Top Guide

23-195

$1.70

Bi-Fold Door Top Pivot Bracket

23-302

$1.87

Bi-fold Door Bottom Pivot Bracket

23-301

$2.27

Spring-Loaded Top Pivot Pin

23-118

$1.25

Bi-fold Door Adjustable Bottom Pivot

23-119

$1.25

Bi-fold Bottom Door Pivot
