Bifold Mirrored Door
Quick Learner
Feb 25, 2025 3:36 pm

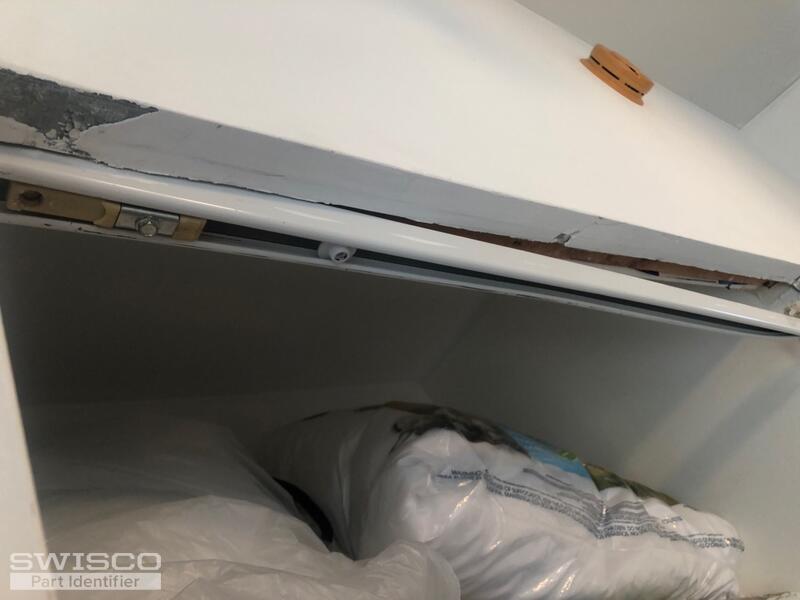

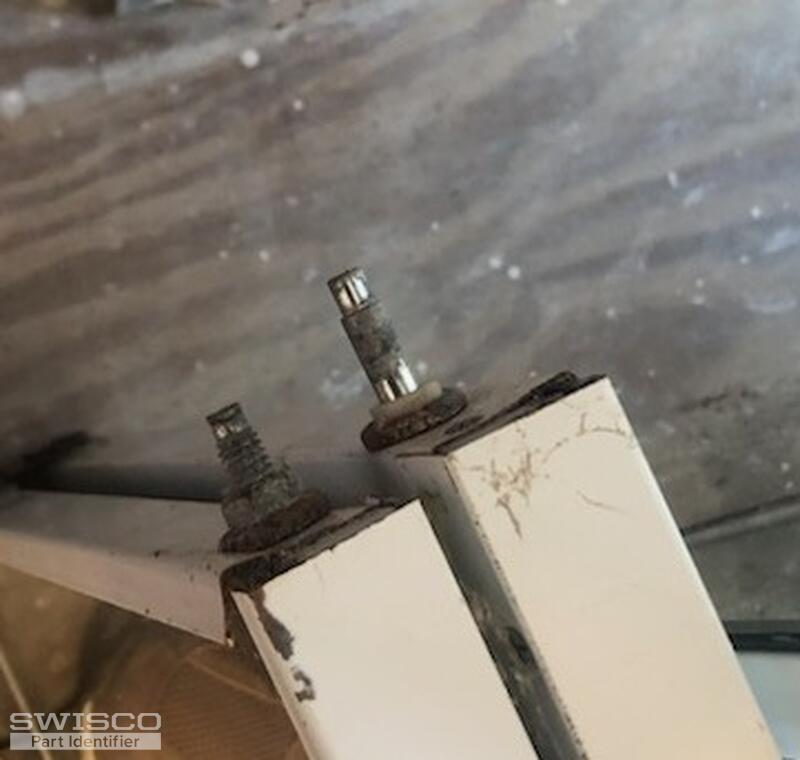

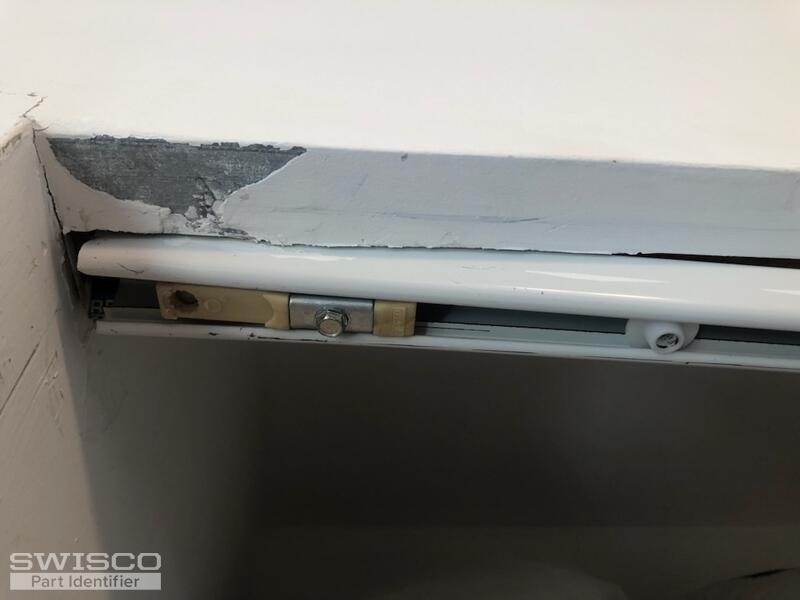

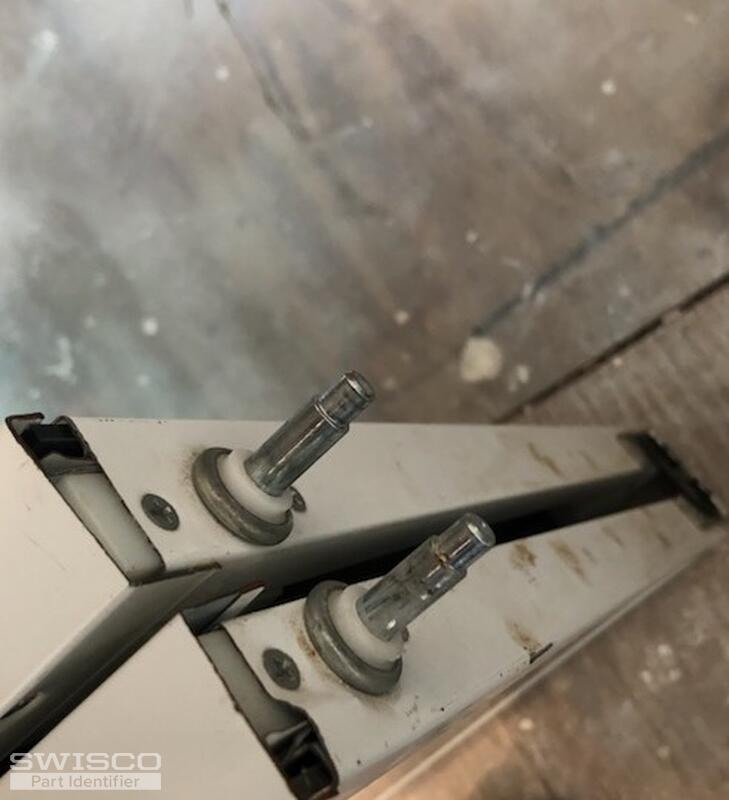

First five photos are of my 24 inch bifold mirrored door. Vintage 2006 I need top and bottom rail with hardware. The sixth and seventh photo is of my four foot mirrored slider bypass door. I need two bottom rollers and bottom rail for it.
5 user uploaded images
5 Replies
Quick Learner
Feb 25, 2025 3:50 pm
Sixth and seventh photo
Both Doors are about 2006 Stanley closet doors
Both Doors are about 2006 Stanley closet doors
2 user uploaded images
Paul from SWISCO
Feb 26, 2025 11:52 am
Hello,
Your Bottom roller with the blue flag is no longer available but the 23-041 is often recommended as a replacement. Review the specifications below to confirm it would be a good fit. This roller is used with the 23-240 track and additional length options shown on this page.
Dimensions for 23-041
Alternate view of 23-041
Profile view of sliding mirror door bottom track
As for your bifold hardware, take a look at the 21-450 track commonly used with the 23-112 top pivot and 23-113 door pivot. Take a look and let us know if you need anything else.
Dimensions of the low profile track assembly.

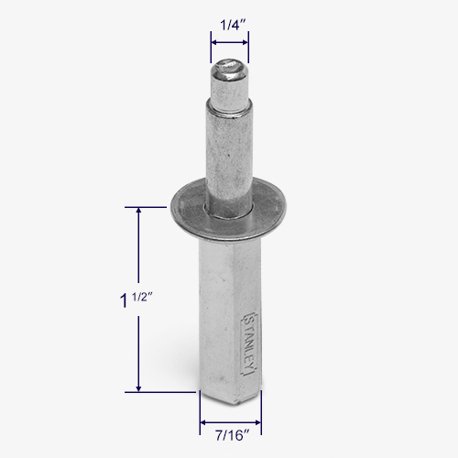

Dimensions for 23-112

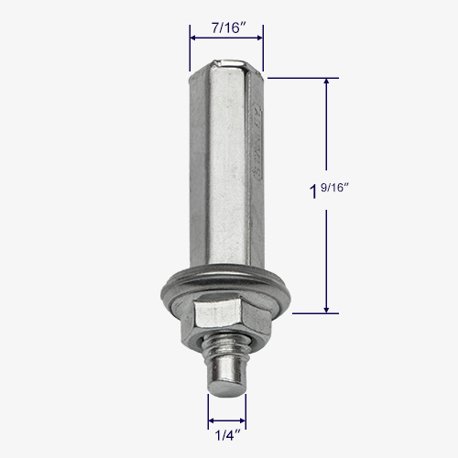

Dimensions for 23-113
Quick Learner
Feb 28, 2025 2:55 pm
Paul . I think I need a bottom rail for the 3 foot Stanley bifold mirrored door. You didn't mention that. I had some flooding and the guys tore out the doors but I think there was a bottom rail for the 3 foot. Bifold Carl
Paul from SWISCO
Feb 28, 2025 3:33 pm
If the top and bottom tracks measure 3' long, see the 21-452. The tracks would be the same for the top and bottom.
