Bifold hardware ID

A quick learner says:

January 7, 2019

Looking for help with bifold hardware need the top assembly spring mechanism along with pin that goes in the door as well as the pin that goes in the bottom of the door that goes in the track. Pictures attached. Thanks

Paul from SWISCO responded:

January 11, 2019

Greetings. I identify the top nylon guide as 23-130 with 23-112 spring loaded pin. The bottom track doesn't normally come with the top track set up. Your bottom spring guide might be our 23-121 with a nylon cap. Please compare with another door in the house to be sure.

A quick learner says:

January 16, 2019

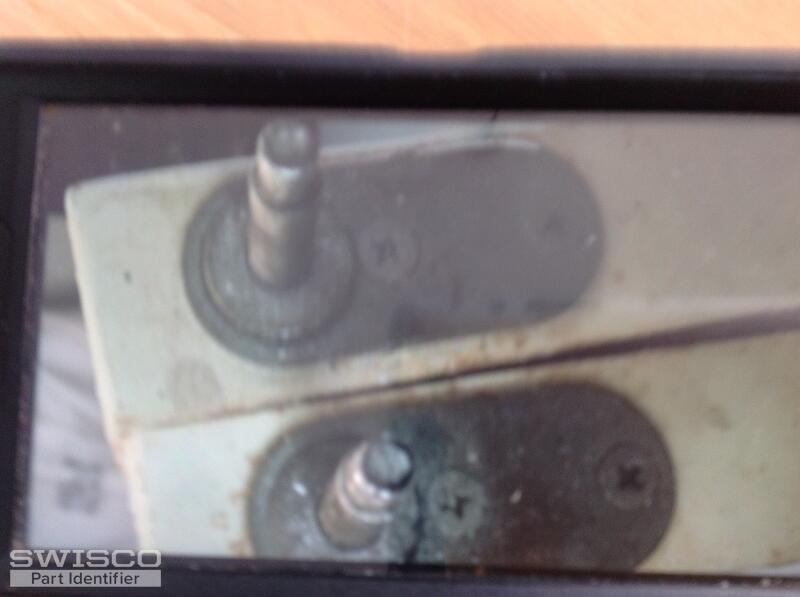

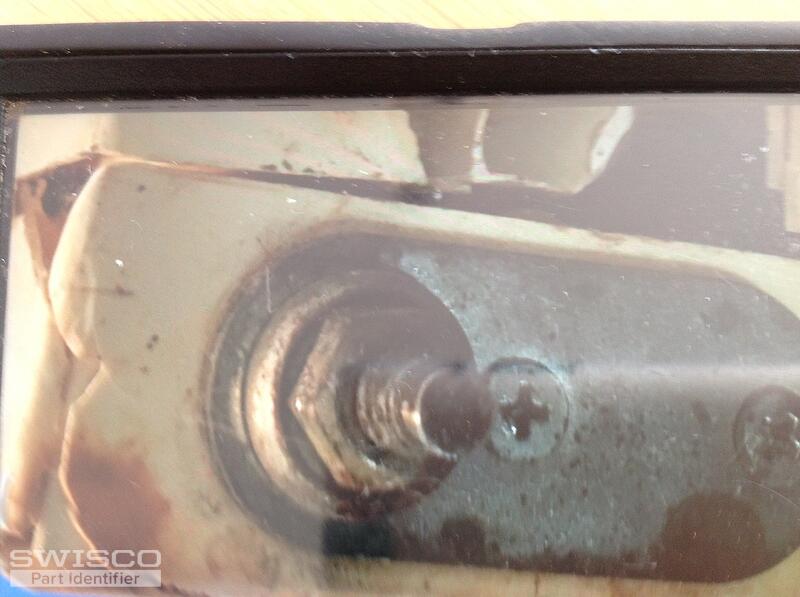

Here are a couple of pictures from the bifold doors. The picture with the two on it are from the top of the unit and the one with the one on is from the bottom . I think the bottom has another pin that goes in it as well but its missing. Thanks

Paul from SWISCO responded:

January 17, 2019

These photos seem to show our 23-112 spring loaded pins and the other shows our 23-113 bottom threaded door pivot. From your first set of photos, I still believe you need a spring loaded guide pin like our 23-121 with a nylon cap to slide in the bottom track. Did you check another door? I'm afraid there is nothing else I can determine from these photos.

Spring Loaded Top Pivot

23-112

$1.95

Bi-fold Door Top Slide Guide

23-130

$1.70

Bi-fold Bottom Door Pivot

23-113

$2.44

Top Pivot Guide, 7/16" Diameter
