Biltbest crank

Quick Learner from United States

Nov 30, 2010 11:50 am

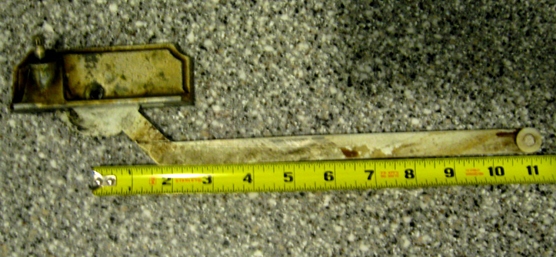

I saw on the net someone inquiring about biltbest parts. Do h u have access to the crank I've attached? It's a narrowish longish casement window that locks on the left ( as your standing) and cranks from the right side in the middle.

Thanks, Mark

5 Replies

+ Add a Comment

Tom from SWISCO

Dec 1, 2010 10:20 am

EXPERT

Is your window a casement window?

If so, you may want to take a look at the Swisco 39-013 Wood Window Operator, 13 1/2". Also, you will want to replace the track, see the Swisco 11-3/8" EntryGard Track, 4 Hole. Lastly, you may need a new handle. Take a look at the 39-114L and 39-205 handles.

Keep in mind, in addition to replacing your other hardware you may need to replace the wooden sill cover.

Quick Learner

Dec 1, 2010 2:19 pm

Does it matter that this is an awning type window rather than casement?

Tom from SWISCO

Dec 3, 2010 9:52 am

EXPERT

Yes, it does matter in this case. You will have to use an awning window operator. Unfortunately, we currently do not offer a replacement operator for your application at this time.

We will post an update on the discussion board if more information becomes available.

Contractor from New Jersey

Mar 16, 2011 5:50 pm

I'm looking for a suitable replacement (left and right) operator for a Biltbest crank/casement operator.

The arm is 11". Can you suggest a replacement

Thanks,

Robert

Tom from SWISCO

Mar 17, 2011 10:33 am

EXPERT

Hello Robert.

Please take a look at the image and responses above. You'll see that we recommend the Swisco 39-013 Wood Window Operator, 13 1/2". You may also want to consider replacing the track and operator crank handle.
