Product Code: 39-013

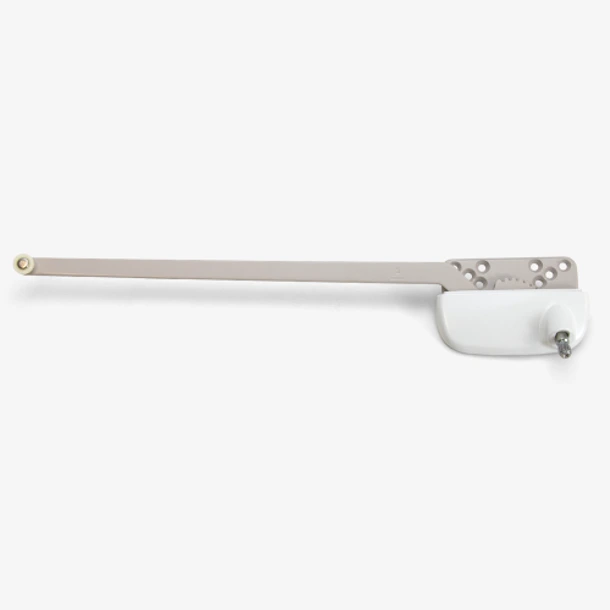

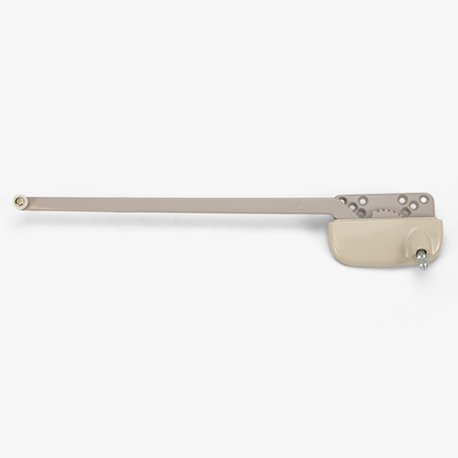

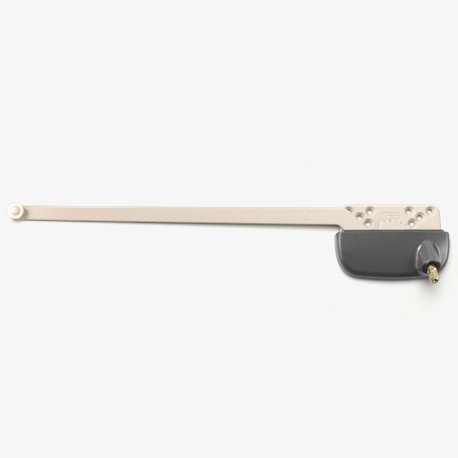

Casement Window Operator, 13-1/2" Arm

Name: Casement Window Operator, 13-1/2" Arm
SKU: 39-013
Price: 28.45 USD
Availability: InStock

$28.45

Casement Window Operator, 13-1/2" Arm Image

Quantity	Price
1-9	$28.45/ea
10-24	$27.03/ea
25-49	$25.61/ea
50-99	$24.18/ea
100+	$23.33/ea

Please Note: Bulk pricing applies only to purchases of the same option

white beige bronze dark bronze +$8.20

Quantity

Add to Wishlist

Product Description

This is a Truth Hardware sill mount, single arm crank operator. Used to open and close wood, metal, and vinyl casement windows.

See SWISCO product 39-014 for the opposite handed version.
Will provide a full 90 degree window opening.

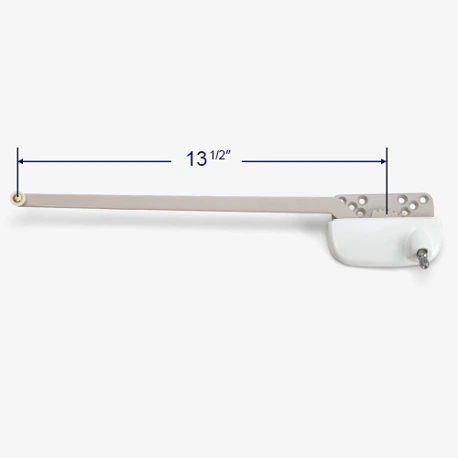

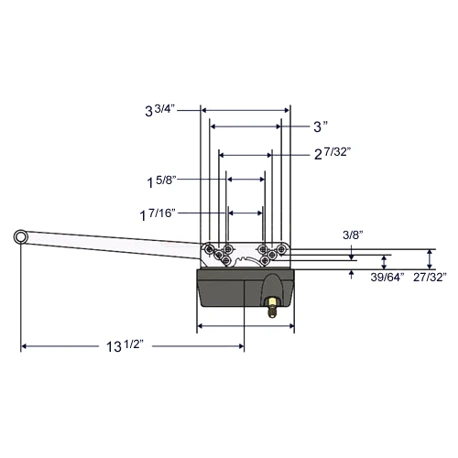

13-1/2" long arm, measured from wheel center to gear center.
11/32" spline; handle sold separately.
Ellipse style case is manufactured of high-pressure die-cast zinc; hardened steel drive worm and gear arm with nylon roller.
Finish is electrostatically applied, durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.

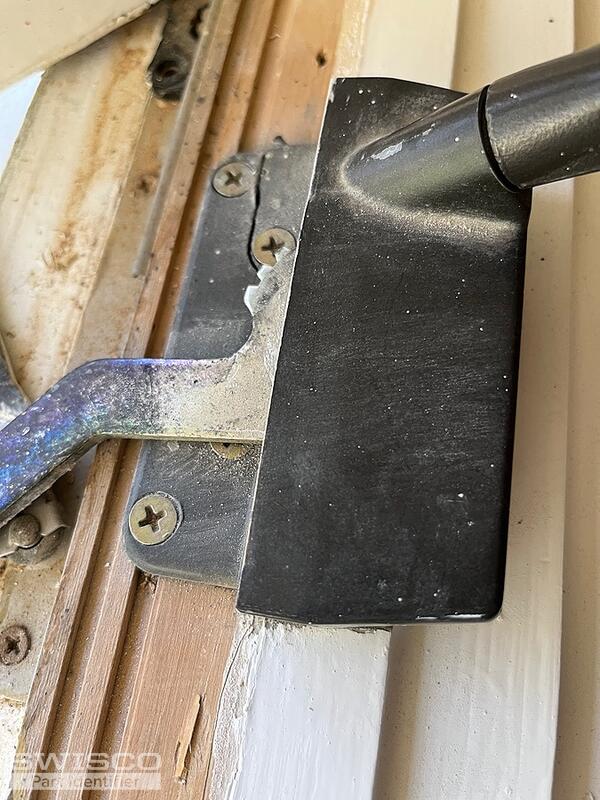

Crank and arm mechanism

The crank turn will open the window but it will not catch to close it. Just turns but doesn't bring to a close.

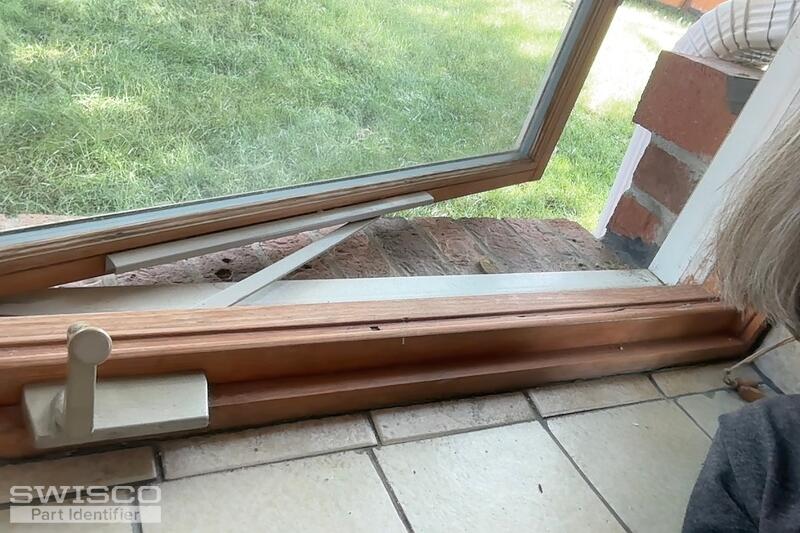

Truth 40055 left-hand casement operator

I am looking for a replacement for this Truth 40055 left-hand casement operator.

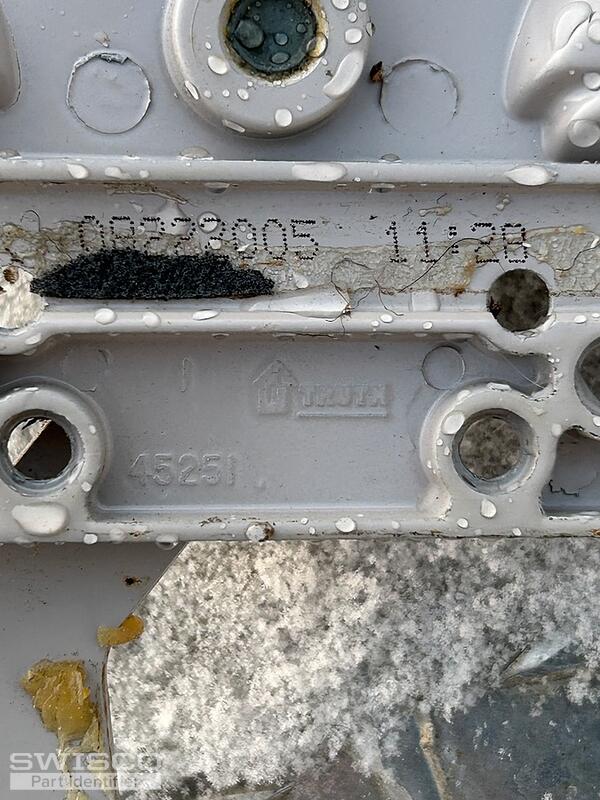

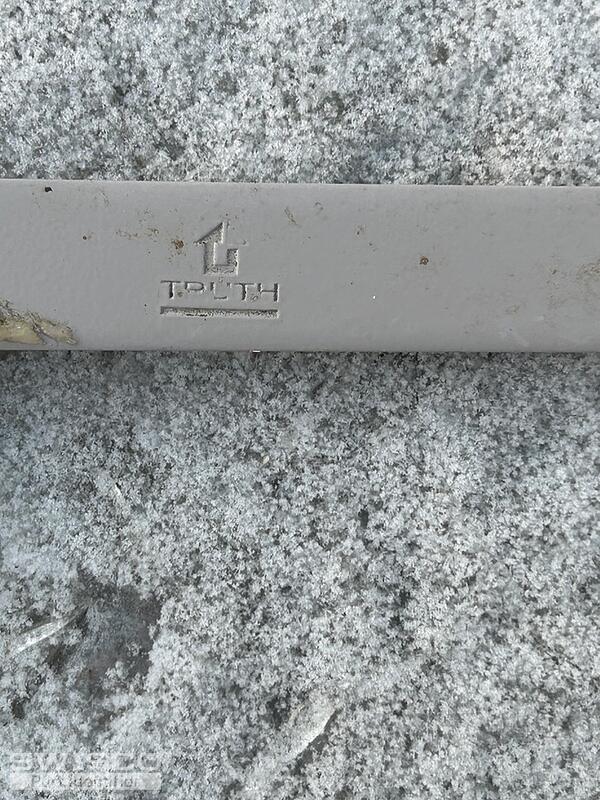

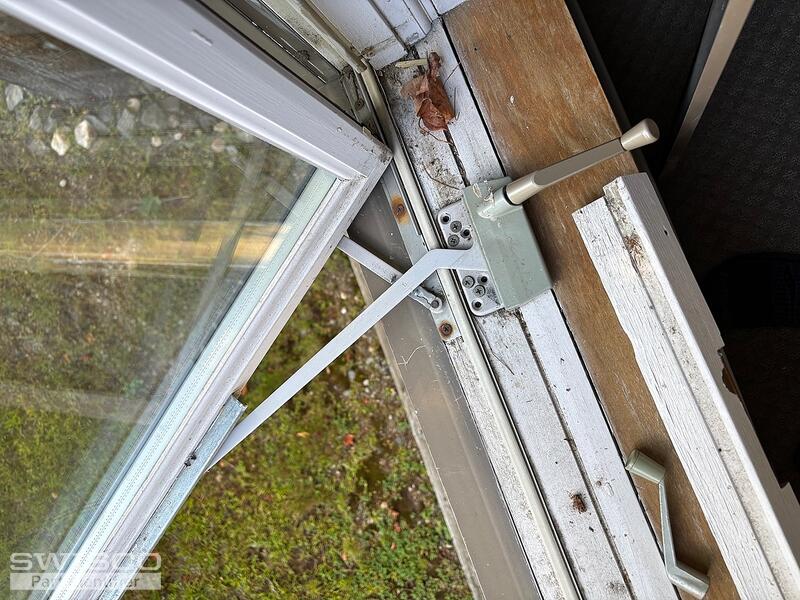

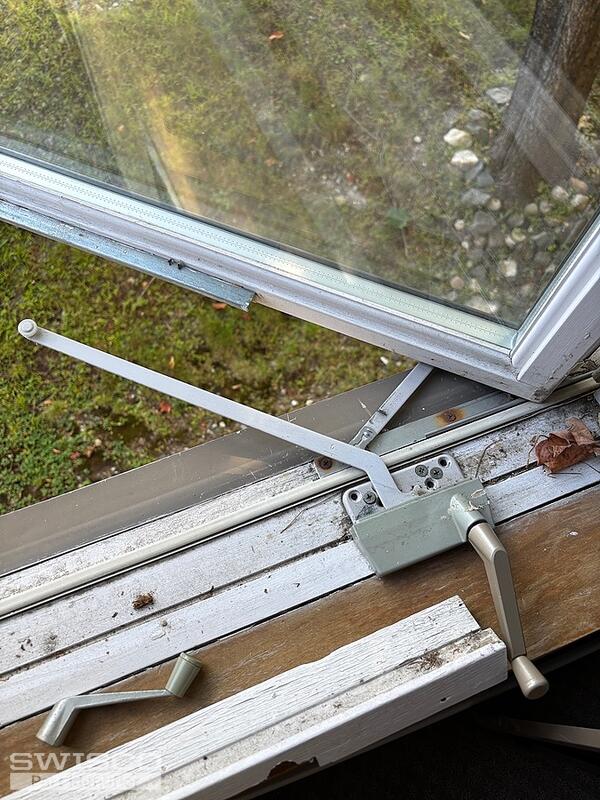

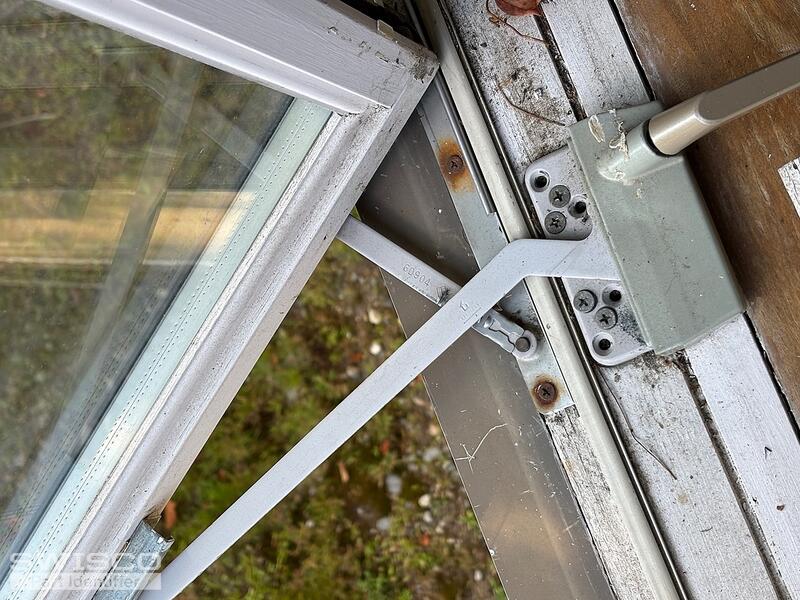

Truth Crank Assembly - 30744D

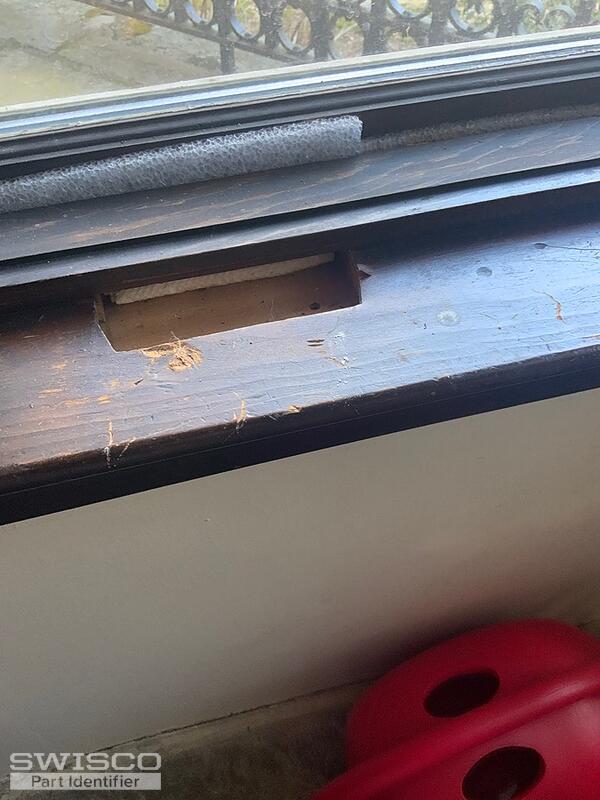

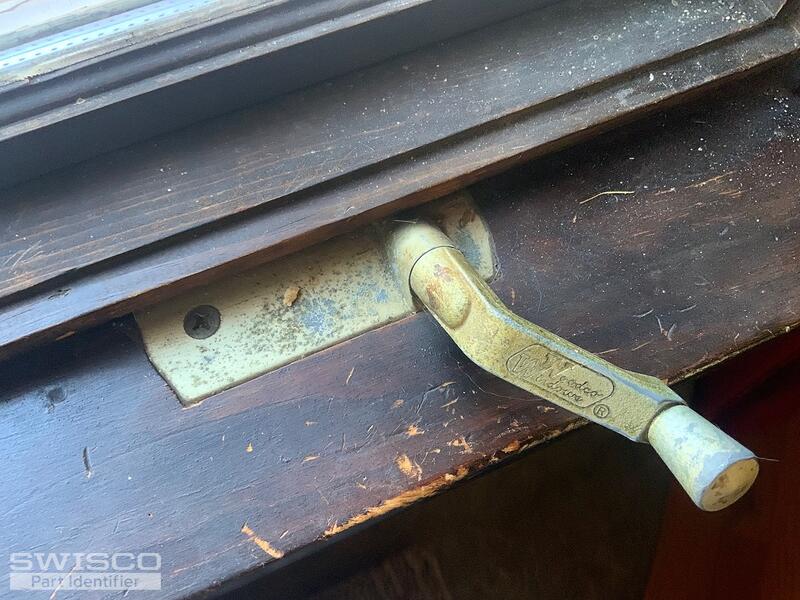

I have 2 windows that won't crank open. The window dimension is 32 x 44. One crank part has a number 30744D. One of the rails has number 40942. I've attached some pics.

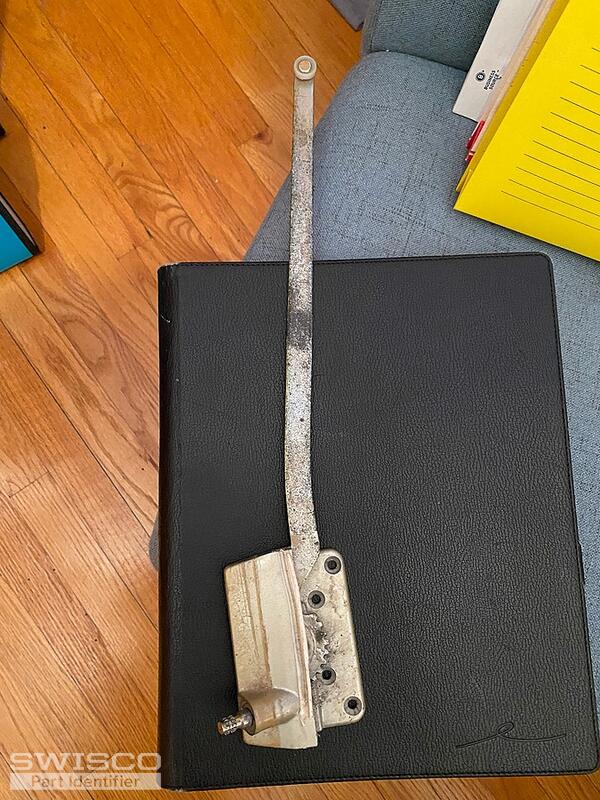

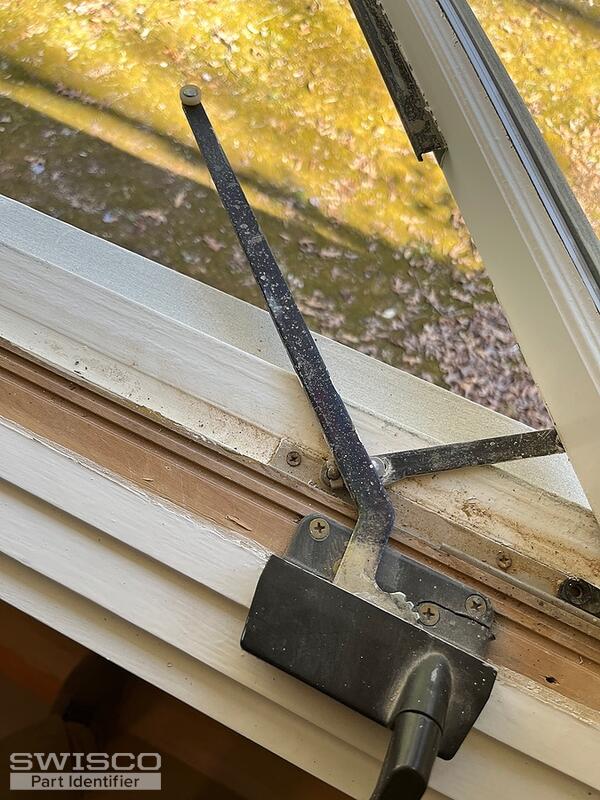

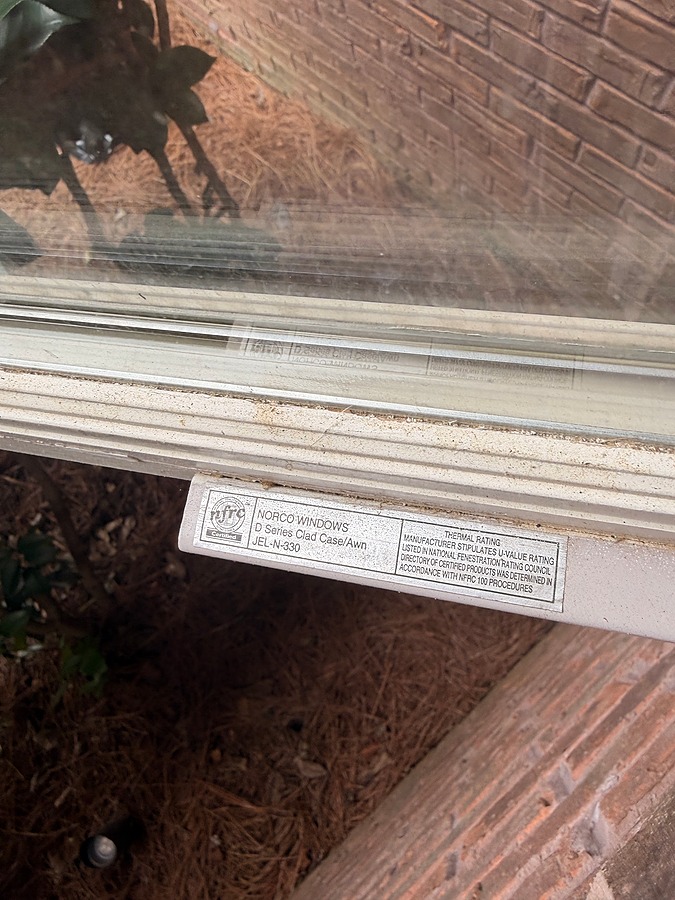

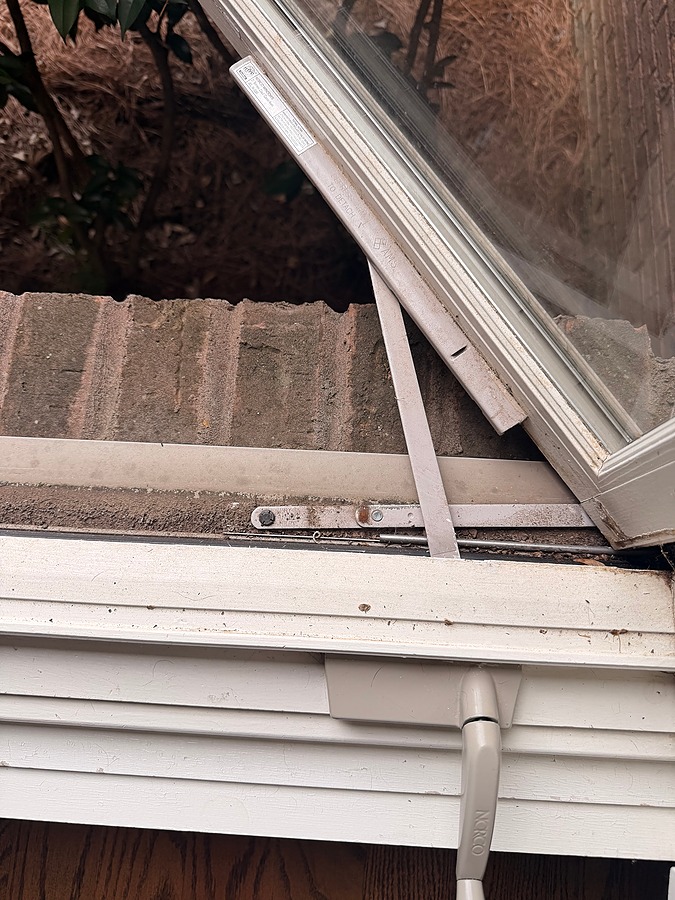

Crank mechanism with arm

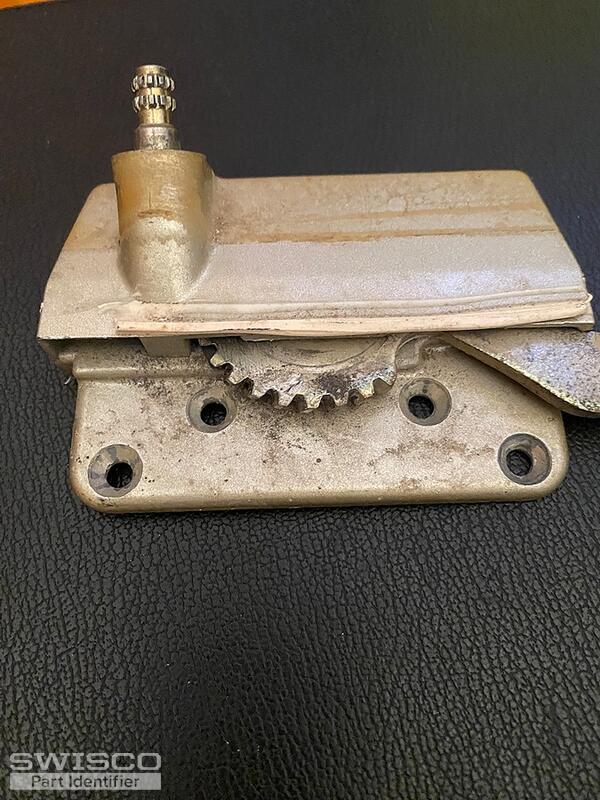

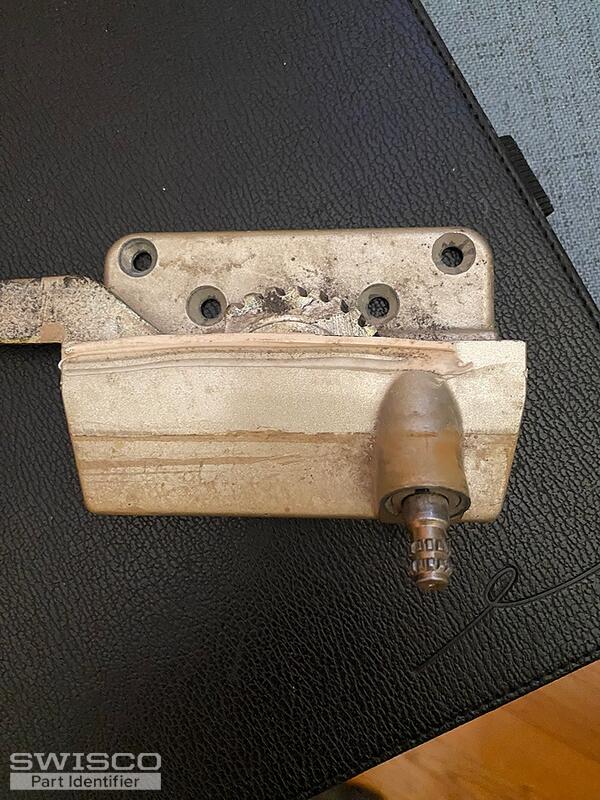

Aluminum part housing

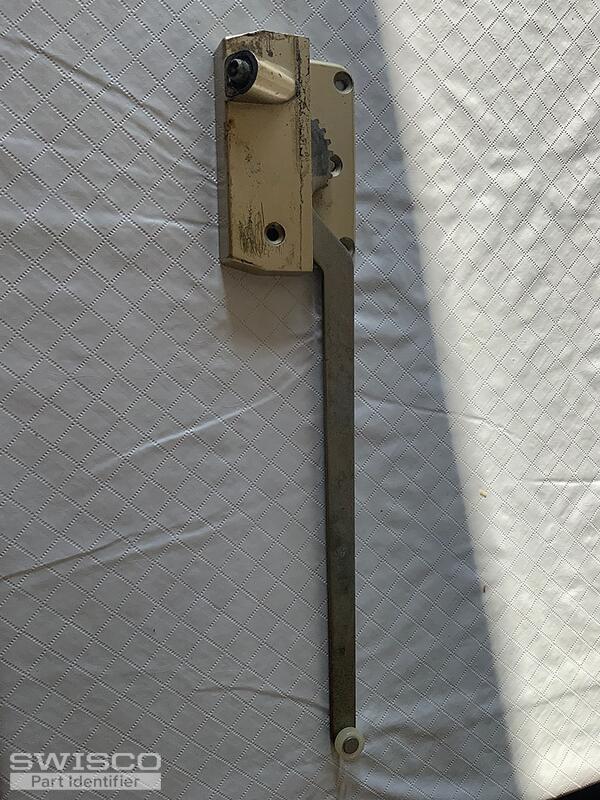

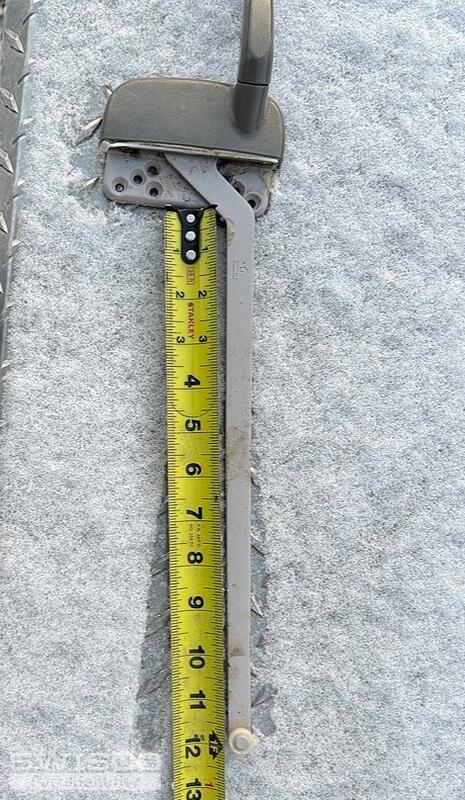

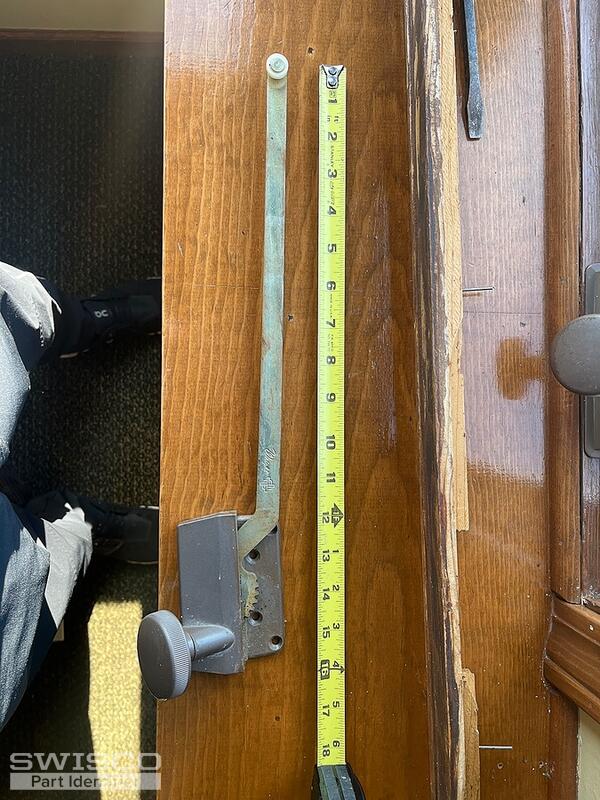

Truth crank mechanism 13 1/2" single arm

I need to replace this crank mechanism is this something you guys carry?
