Block & Tackle balancers

Contractor from DFW
Hello, These are 2760, 9/16 wide. The sashes are approx 34 lbs. I need 6 total balancers. I want to make sure the ends are the same as shown.
thanks!
4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for posting! These balances have winged top and bottom attachments like the S378-28, S380-28, or the S385-28. To determine the correct replacement, you'll need to measure the depth of the bottom shoe.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

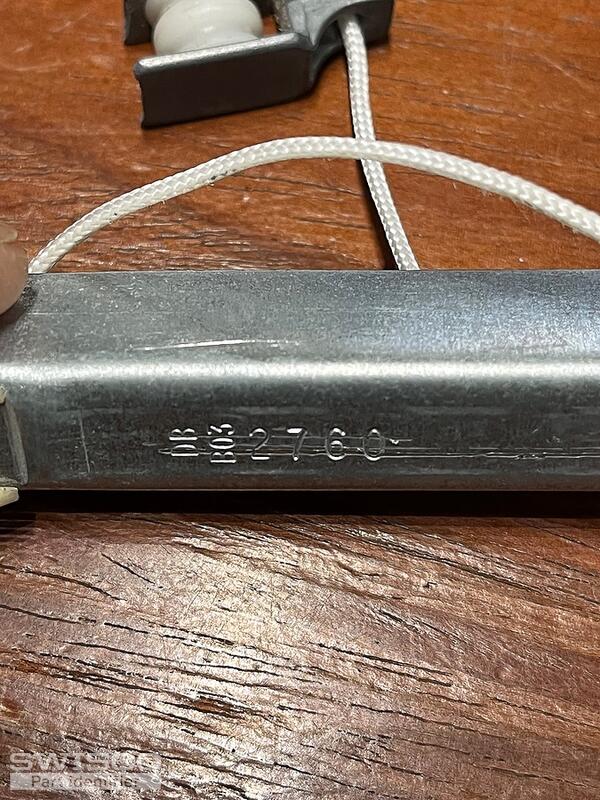

The stamp on the balance is a 2760 which will support a sash weighing 30 to 33lbs. A 2765 stamp will support a sash weighing 33 to 36lbs.

You'll need to confirm the exact weight of the sash to determine the best option for the repair. While there is only a slight difference between the ranges, it will matter in the installation.
